High-precision ball runner block BSHP Parts

Bosch Rexroth

R162211220

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-P-1

Bosch Rexroth

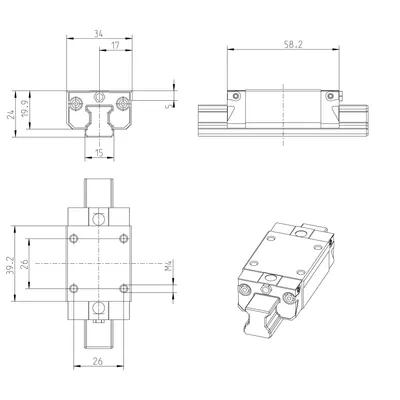

R162912031

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-N-2 S

Bosch Rexroth

R16221142Z

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-N-1

Bosch Rexroth

R162211423

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-N-1

Bosch Rexroth

R162211422

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-N-1

Bosch Rexroth

R162211421

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-N-1

Bosch Rexroth

R162211420

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-N-1

Bosch Rexroth

R16221132Z

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-H-1

Bosch Rexroth

R162211323

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-H-1

Bosch Rexroth

R162211322

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-H-1

Bosch Rexroth

R162211321

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-H-1

Bosch Rexroth

R162211320

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-H-1

Bosch Rexroth

R162219422

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C0-N-1

Bosch Rexroth

R162219421

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C0-N-1

Bosch Rexroth

R162219420

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C0-N-1

Bosch Rexroth

R162219322

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C0-H-1

Bosch Rexroth

R162219320

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C0-H-1

Bosch Rexroth

R16211382Z

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNH-C3-XP-1

Bosch Rexroth

R162113822

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNH-C3-X-1

Bosch Rexroth

R16211282Z

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNH-C2-XP-1

Bosch Rexroth

R162112822

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNH-C2-X-1

Bosch Rexroth

R162112820

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNH-C2-X-1

Bosch Rexroth

R16211222Z

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNH-C2-P-1

Bosch Rexroth

R162112222

BALL RUNNER BLOCK CARBON STEEL KWD-015-SNH-C2-P-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Format	Preload class	Accuracy class	Seal	Weight [kg]
R162211220	SNS - slimline, normal, standard height	C1 - Low preload	P - Precise	SS - Standard seal	0.18
R162912031	SNS - slimline, normal, standard height	C2 - Medium preload	N - Normal	SS - Standard seal	0.15
R16221142Z	SNS - slimline, normal, standard height	C1 - Low preload	N - Normal	DS - Double-lip seal	0.15
R162211423	SNS - slimline, normal, standard height	C1 - Low preload	N - Normal	LS - Low-friction seal	0.15
R162211422	SNS - slimline, normal, standard height	C1 - Low preload	N - Normal	SS - Standard seal	0.18
R162211421	SNS - slimline, normal, standard height	C1 - Low preload	N - Normal	LS - Low-friction seal	0.15
R162211420	SNS - slimline, normal, standard height	C1 - Low preload	N - Normal	SS - Standard seal	0.18
R16221132Z	SNS - slimline, normal, standard height	C1 - Low preload	H - Highly accurate	LS - Low-friction seal	0.15
R162211323	SNS - slimline, normal, standard height	C1 - Low preload	H - Highly accurate	LS - Low-friction seal	0.15
R162211322	SNS - slimline, normal, standard height	C1 - Low preload	H - Highly accurate	SS - Standard seal	0.18
R162211321	SNS - slimline, normal, standard height	C1 - Low preload	H - Highly accurate	LS - Low-friction seal	0.15
R162211320	SNS - slimline, normal, standard height	C1 - Low preload	H - Highly accurate	SS - Standard seal	0.18
R162219422	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	0.15
R162219421	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	N - Normal	LS - Low-friction seal	0.18
R162219420	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	0.18
R162219322	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	0.15
R162219320	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	0.18
R16211382Z	SNH - slimline, normal, high	C3 - High preload	XP - Extra precise	SS - Standard seal	0.2
R162113822	SNH - slimline, normal, high	C3 - High preload	XP - Extra precise	SS - Standard seal	0.2
R16211282Z	SNH - slimline, normal, high	C2 - Medium preload	XP - Extra precise	DS - Double-lip seal	0.2
R162112822	SNH - slimline, normal, high	C2 - Medium preload	XP - Extra precise	SS - Standard seal	0.2
R162112820	SNH - slimline, normal, high	C2 - Medium preload	XP - Extra precise	SS - Standard seal	0.2
R16211222Z	SNH - slimline, normal, high	C2 - Medium preload	P - Precise	DS - Double-lip seal	0.2
R162112222	SNH - slimline, normal, high	C2 - Medium preload	P - Precise	SS - Standard seal	0.2

Common to all listed parts

Nominal size [mm]	15
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Note: friction coefficient μ	Without friction of seal
Pitch T guide rail [mm]	60
Dimension B1 [mm]	39.2
Dimension T1 min [mm]	12
