High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Preload class | Accuracy class | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] |
|---|---|---|---|---|---|

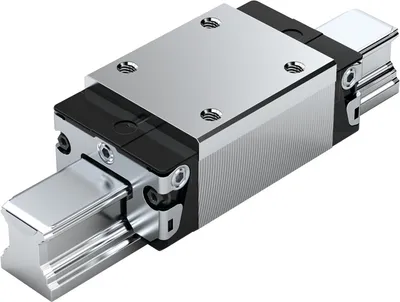

| R162119420 | C0 - Without preload (clearance) | N - Normal | 12400.0 | 9860.0 | 12700.0 |
| R162119322 | C0 - Without preload (clearance) | H - Highly accurate | 11200.0 | 8850.0 | 10800.0 |
| R162119320 | C0 - Without preload (clearance) | H - Highly accurate | 12400.0 | 9860.0 | 12700.0 |
| R16231382Z | C3 - High preload | XP - Extra precise | 16100.0 | 12800.0 | 18400.0 |
| R162313822 | C3 - High preload | XP - Extra precise | 14500.0 | 11500.0 | 15600.0 |
| R162313820 | C3 - High preload | XP - Extra precise | 16100.0 | 12800.0 | 18400.0 |
| R16231282Z | C2 - Medium preload | XP - Extra precise | 16100.0 | 12800.0 | 18400.0 |
| R162312822 | C2 - Medium preload | XP - Extra precise | 14500.0 | 11500.0 | 15600.0 |
| R162312820 | C2 - Medium preload | XP - Extra precise | 16100.0 | 12800.0 | 18400.0 |
| R16231222Z | C2 - Medium preload | P - Precise | 16100.0 | 12800.0 | 18400.0 |
| R162312222 | C2 - Medium preload | P - Precise | 14500.0 | 11500.0 | 15600.0 |
| R162312220 | C2 - Medium preload | P - Precise | 16100.0 | 12800.0 | 18400.0 |
| R162312420 | C2 - Medium preload | N - Normal | 16100.0 | 12800.0 | 18400.0 |
| R16231232Z | C2 - Medium preload | H - Highly accurate | 16100.0 | 12800.0 | 18400.0 |
| R162312322 | C2 - Medium preload | H - Highly accurate | 14500.0 | 11500.0 | 15600.0 |
| R162312320 | C2 - Medium preload | H - Highly accurate | 16100.0 | 12800.0 | 18400.0 |
| R16231182Z | C1 - Low preload | XP - Extra precise | 16100.0 | 12800.0 | 18400.0 |
| R162311823 | C1 - Low preload | XP - Extra precise | 14500.0 | 11500.0 | 15600.0 |
| R162311822 | C1 - Low preload | XP - Extra precise | 14500.0 | 11500.0 | 15600.0 |
| R162311821 | C1 - Low preload | XP - Extra precise | 16100.0 | 12800.0 | 18400.0 |
| R162311820 | C1 - Low preload | XP - Extra precise | 16100.0 | 12800.0 | 18400.0 |

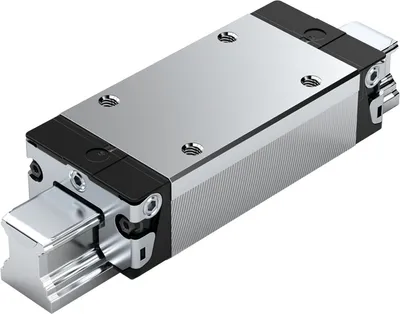

| R16231122Z | C1 - Low preload | P - Precise | 16100.0 | 12800.0 | 18400.0 |
| R162311222 | C1 - Low preload | P - Precise | 14500.0 | 11500.0 | 15600.0 |
| R162311220 | C1 - Low preload | P - Precise | 16100.0 | 12800.0 | 18400.0 |
Common to all listed parts
| Nominal size [mm] | 15 |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 34.0 |
| Lubrication | Pre-lubricated, preserved |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
