BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-N-2 S

Name: BALL RUNNER BLOCK CARBON STEEL KWD-015-SNS-C1-N-2 S
Brand: Bosch Rexroth
SKU: R162912031

MPN: R162912031 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	High-precision ball runner block BSHP
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R162912031 be shipped?

R162912031 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R162912031 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R162912031 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R162912031, subject to availability and destination.

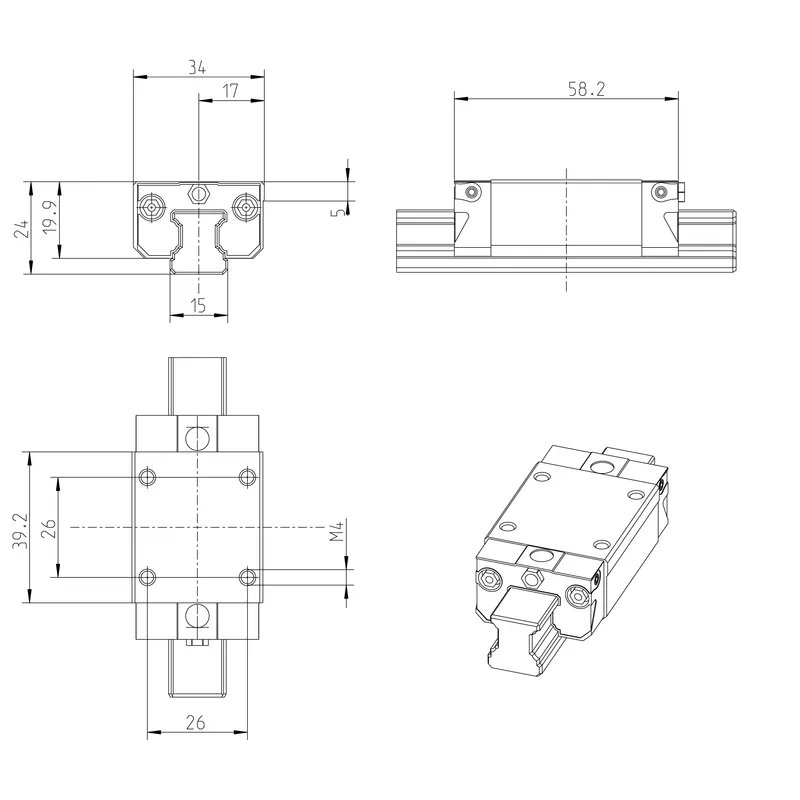

The ball runner block is highly precise and characterized by the following product features: Size 15 Format SNS: Width = slimline, length = normal, height = standard Runner block body made of unalloyed steel CS Preload class C1: Low preload Accuracy class N: Standard With ball chain Preserved Without initial lubrication Without attachment element, left (front reference edge) Without attachment element, right (front reference edge) Special lube connection Runner block body as special version Overall length of the runner block = 58.2 mm Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Specifications

Nominal size [mm]	15
Format	SNS - slimline, normal, standard height
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Preload class	C2 - Medium preload
Accuracy class	N - Normal
Seal	SS - Standard seal
Ball chain	With ball chain
Self-aligning for compensation of misalignments	Without self-alignment
Lubrication	Preserved
Note: Max. acceleration amax	If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup>
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Note: friction coefficient μ	Without friction of seal
Weight [kg]	0.15
Dynamic load capacity C50 [N]	11200.0
Note: dynamic load capacity C50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic load capacity C100 [N]	8850.0
Note: dynamic load capacity C100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt50 [Nm]	110.0
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt100 [Nm]	85.0
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML50 [Nm]	78.0
Note: Dynamic longitudinal moment load capacity ML50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML100 [Nm]	62.0
Note: Dynamic longitudinal moment load capacity ML100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Pitch T guide rail [mm]	60
Dimension B1 [mm]	39.2
Dimension T1 min [mm]	12
