High-precision ball runner block BSHP Parts

Bosch Rexroth

R16725142Y

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C1-N-1

Bosch Rexroth

R167251422

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C1-N-1

Bosch Rexroth

R167251420

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C1-N-1

Bosch Rexroth

R16725132Z

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C1-H-1

Bosch Rexroth

R16725132Y

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C1-H-1

Bosch Rexroth

R167251322

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C1-H-1

Bosch Rexroth

R167251320

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C1-H-1

Bosch Rexroth

R167259422

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C0-N-1

Bosch Rexroth

R167259420

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C0-N-1

Bosch Rexroth

R167259322

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C0-H-1

Bosch Rexroth

R167259320

BALL RUNNER BLOCK CARBON STEEL KWD-020-CNS-C0-H-1

Bosch Rexroth

R16715122Z

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-P-1

Bosch Rexroth

R16715122Y

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-P-1

Bosch Rexroth

R167151222

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-P-1

Bosch Rexroth

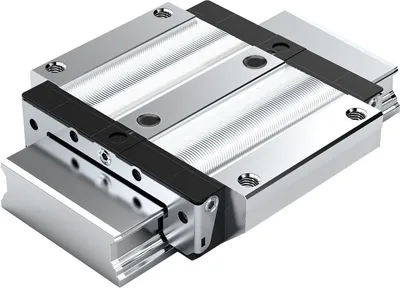

R167151220

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-P-1

Bosch Rexroth

R16715142Z

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-N-1

Bosch Rexroth

R16715142Y

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-N-1

Bosch Rexroth

R167151422

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-N-1

Bosch Rexroth

R167151420

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-N-1

Bosch Rexroth

R16715132Z

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-H-1

Bosch Rexroth

R16715132Y

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-H-1

Bosch Rexroth

R167151322

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-H-1

Bosch Rexroth

R167151320

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-H-1

Bosch Rexroth

R167159422

BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C0-N-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Format	Preload class	Accuracy class	Seal	Weight [kg]
R16725142Y	CNS - compact, normal, standard height	C1 - Low preload	N - Normal	DS - Double-lip seal	0.3
R167251422	CNS - compact, normal, standard height	C1 - Low preload	N - Normal	SS - Standard seal	0.3
R167251420	CNS - compact, normal, standard height	C1 - Low preload	N - Normal	SS - Standard seal	0.3
R16725132Z	CNS - compact, normal, standard height	C1 - Low preload	H - Highly accurate	DS - Double-lip seal	0.3
R16725132Y	CNS - compact, normal, standard height	C1 - Low preload	H - Highly accurate	DS - Double-lip seal	0.3
R167251322	CNS - compact, normal, standard height	C1 - Low preload	H - Highly accurate	SS - Standard seal	0.3
R167251320	CNS - compact, normal, standard height	C1 - Low preload	H - Highly accurate	SS - Standard seal	0.3
R167259422	CNS - compact, normal, standard height	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	0.3
R167259420	CNS - compact, normal, standard height	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	0.3
R167259322	CNS - compact, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	0.3
R167259320	CNS - compact, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	0.3
R16715122Z	BNS - wide, normal, standard height	C1 - Low preload	P - Precise	DS - Double-lip seal	0.4
R16715122Y	BNS - wide, normal, standard height	C1 - Low preload	P - Precise	DS - Double-lip seal	0.4
R167151222	BNS - wide, normal, standard height	C1 - Low preload	P - Precise	SS - Standard seal	0.4
R167151220	BNS - wide, normal, standard height	C1 - Low preload	P - Precise	SS - Standard seal	0.4
R16715142Z	BNS - wide, normal, standard height	C1 - Low preload	N - Normal	DS - Double-lip seal	0.4
R16715142Y	BNS - wide, normal, standard height	C1 - Low preload	N - Normal	DS - Double-lip seal	0.4
R167151422	BNS - wide, normal, standard height	C1 - Low preload	N - Normal	SS - Standard seal	0.4
R167151420	BNS - wide, normal, standard height	C1 - Low preload	N - Normal	SS - Standard seal	0.5
R16715132Z	BNS - wide, normal, standard height	C1 - Low preload	H - Highly accurate	DS - Double-lip seal	0.4
R16715132Y	BNS - wide, normal, standard height	C1 - Low preload	H - Highly accurate	DS - Double-lip seal	0.4
R167151322	BNS - wide, normal, standard height	C1 - Low preload	H - Highly accurate	SS - Standard seal	0.4
R167151320	BNS - wide, normal, standard height	C1 - Low preload	H - Highly accurate	SS - Standard seal	0.5
R167159422	BNS - wide, normal, standard height	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	0.4

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	20/40
Model	Wide ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Length of runner block [mm]	73.0
Height of runner block [mm]	22.5
Height runner block with guide rail [mm]	27.0
