High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Preload class | Accuracy class | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] |
|---|---|---|---|---|---|
| R167159420 | C0 - Without preload (clearance) | N - Normal | 18800.0 | 14900.0 | 20600.0 |
| R167159322 | C0 - Without preload (clearance) | H - Highly accurate | 17300.0 | 13700.0 | 18200.0 |

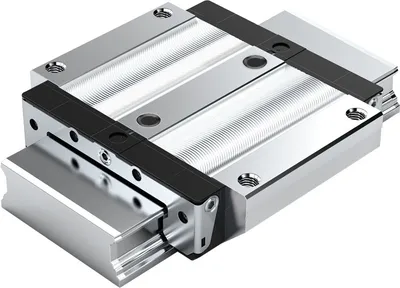

| R167159320 | C0 - Without preload (clearance) | H - Highly accurate | 18800.0 | 14900.0 | 20600.0 |
| R16221382Z | C3 - High preload | XP - Extra precise | 12400.0 | 9860.0 | 12700.0 |
| R162213822 | C3 - High preload | XP - Extra precise | 11200.0 | 8850.0 | 10800.0 |
| R162213820 | C3 - High preload | XP - Extra precise | 12400.0 | 9860.0 | 12700.0 |
| R16221282Z | C2 - Medium preload | XP - Extra precise | 12400.0 | 9860.0 | 12700.0 |
| R162212822 | C2 - Medium preload | XP - Extra precise | 11200.0 | 8850.0 | 10800.0 |
| R162212820 | C2 - Medium preload | XP - Extra precise | 12400.0 | 9860.0 | 12700.0 |
| R16221222Z | C2 - Medium preload | P - Precise | 12400.0 | 9860.0 | 12700.0 |
| R162212222 | C2 - Medium preload | P - Precise | 11200.0 | 8850.0 | 10800.0 |
| R162212220 | C2 - Medium preload | P - Precise | 12400.0 | 9860.0 | 12700.0 |
| R162212420 | C2 - Medium preload | N - Normal | 12400.0 | 9860.0 | 12700.0 |
| R16221232Z | C2 - Medium preload | H - Highly accurate | 12400.0 | 9860.0 | 12700.0 |
| R162212322 | C2 - Medium preload | H - Highly accurate | 11200.0 | 8850.0 | 10800.0 |
| R162212320 | C2 - Medium preload | H - Highly accurate | 12400.0 | 9860.0 | 12700.0 |
| R16221182Z | C1 - Low preload | XP - Extra precise | 12400.0 | 9860.0 | 12700.0 |
| R162211823 | C1 - Low preload | XP - Extra precise | 11200.0 | 8850.0 | 10800.0 |
| R162211822 | C1 - Low preload | XP - Extra precise | 11200.0 | 8850.0 | 10800.0 |
| R162211821 | C1 - Low preload | XP - Extra precise | 12400.0 | 9860.0 | 12700.0 |
| R162211820 | C1 - Low preload | XP - Extra precise | 12400.0 | 9860.0 | 12700.0 |
| R16221122Z | C1 - Low preload | P - Precise | 12400.0 | 9860.0 | 12700.0 |
| R162211222 | C1 - Low preload | P - Precise | 11200.0 | 8850.0 | 10800.0 |
| R162211221 | C1 - Low preload | P - Precise | 12400.0 | 9860.0 | 12700.0 |
Common to all listed parts
| Material (profiled rail systems) | Carbon steel |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Lubrication | Pre-lubricated, preserved |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Without friction of seal |
| Pitch T guide rail [mm] | 60 |
