Proportional directional valves Parts

Bosch Rexroth

R900900987

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W30-2X/G24N9K31/A1V

Bosch Rexroth

R900762072

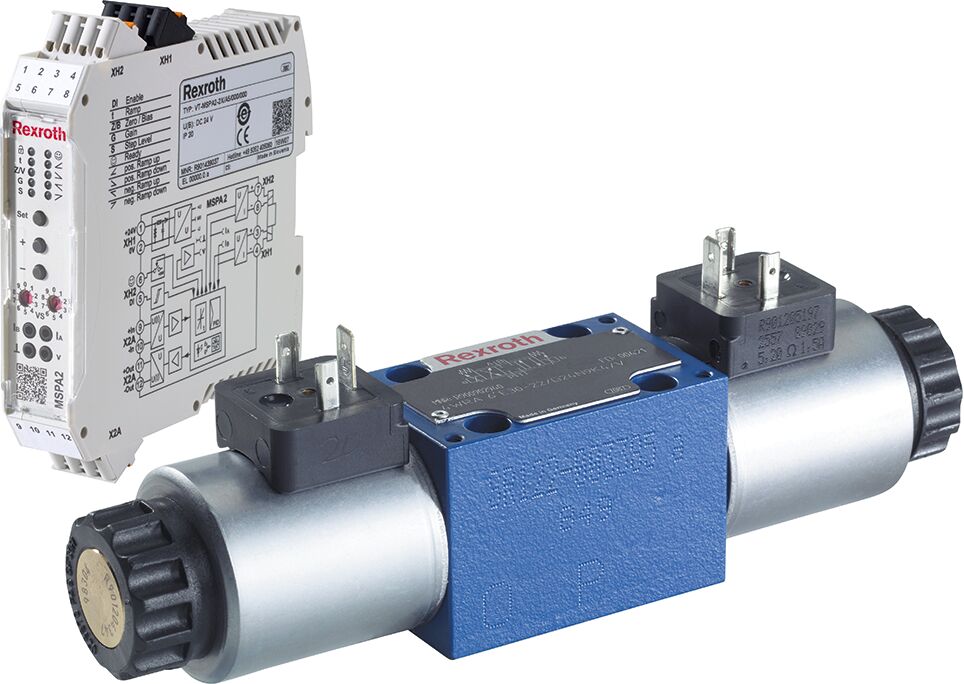

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W30-2X/G24K31/F1V

Bosch Rexroth

R900954078

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W30-2X/G24K31/A1V

Bosch Rexroth

R890000276

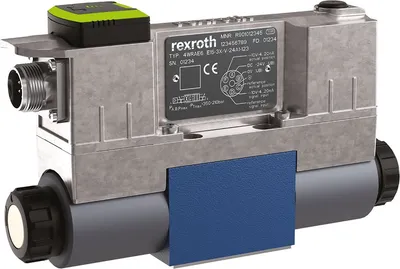

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W15-3X/VN9/24F1/B

Bosch Rexroth

R901560996

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W15-3X/V/24L1/B

Bosch Rexroth

R901560715

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W15-3X/V/24F1/B

Bosch Rexroth

R901560703

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W15-3X/V/24F1

Bosch Rexroth

R890000296

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W15-3X/MN9/24A1

Bosch Rexroth

R890000297

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W15-3X/M/24A1

Bosch Rexroth

R900908938

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W15-2X/G24N9K31/A1V

Bosch Rexroth

R900976919

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W15-2X/G24K31/F1V

Bosch Rexroth

R900954077

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W15-2X/G24K31/A1V

Bosch Rexroth

R901570609

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-30-3X/VN9/24L1/B

Bosch Rexroth

R901560695

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-30-3X/VN9/24F1

Bosch Rexroth

R890000308

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-30-3X/V/24L1

Bosch Rexroth

R901581908

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-30-3X/V/24F1/B

Bosch Rexroth

R901560679

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-30-3X/V/24F1

Bosch Rexroth

R900974817

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-30-2X/G24K31/F1V

Bosch Rexroth

R900954080

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-30-2X/G24K31/A1V

Bosch Rexroth

R901560711

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-15-3X/VN9/24A1

Bosch Rexroth

R901560719

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-15-3X/V/24A1

Bosch Rexroth

R901018004

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-15-2X/G24K31/F1V

Bosch Rexroth

R900954079

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-15-2X/G24K31/A1V

Bosch Rexroth

R901099279

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-07-2X/G24K31/F1V

Compare Proportional directional valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Operating pressure, max. [bar]	Spool symbol	Nominal flow [l/min]	Connectivity	Weight [kg]
R900900987	315.0	Symbol W	26.0	Analog, command value ±10 V	2.24
R900762072	315.0	Symbol W	26.0	Analog, command value 4…20 mA	2.2
R900954078	315.0	Symbol W	26.0	Analog, command value ±10 V	2.24
R890000276	350.0	Symbol W	15.0	Analog, command value 4…20 mA; Bluetooth	2.51
R901560996	350.0	Symbol W	15.0	Bluetooth; IO-Link	2.5
R901560715	350.0	Symbol W	15.0	Analog, command value 4…20 mA; Bluetooth	2.5
R901560703	350.0	Symbol W	15.0	Analog, command value 4…20 mA	2.53
R890000296	350.0	Symbol W	15.0	Analog, command value ±10 V	2.5
R890000297	350.0	Symbol W	15.0	Analog, command value ±10 V	2.5
R900908938	315.0	Symbol W	15.0	Analog, command value ±10 V	2.22
R900976919	315.0	Symbol W	15.0	Analog, command value 4…20 mA	2.18
R900954077	315.0	Symbol W	15.0	Analog, command value ±10 V	2.2
R901570609	350.0	Symbol W1	26.0	Bluetooth; IO-Link	2.5
R901560695	350.0	Symbol W1	26.0	Analog, command value 4…20 mA	2.5
R890000308	350.0	Symbol W1	26.0	IO-Link	2.5
R901581908	350.0	Symbol W1	26.0	Analog, command value 4…20 mA; Bluetooth	2.5
R901560679	350.0	Symbol W1	26.0	Analog, command value 4…20 mA	2.6
R900974817	315.0	Symbol W1	26.0	Analog, command value 4…20 mA	2.2
R900954080	315.0	Symbol W1	26.0	Analog, command value ±10 V	2.21
R901560711	350.0	Symbol W1	15.0	Analog, command value ±10 V	2.5
R901560719	350.0	Symbol W1	15.0	Analog, command value ±10 V	2.53
R901018004	315.0	Symbol W1	15.0	Analog, command value 4…20 mA	2.22
R900954079	315.0	Symbol W1	15.0	Analog, command value ±10 V	2.2
R901099279	315.0	Symbol W1	7.0	Analog, command value 4…20 mA	2.2

Common to all listed parts

Connection diagram	ISO 4401-03-02-0-05
Product family	4WRA
Max. flow [l/min]	42.0
Type of connection	Subplate mounting
Size	6
Type of actuation	Electrical with on-board electronics
Number of ports	4
Number of switching positions	3
