Proportional directional valves Parts

Bosch Rexroth

R901581906

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E30-3X/V/24A1/B

Bosch Rexroth

R901538961

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E30-3X/V/24A1

Bosch Rexroth

R900558355

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E30-2X/G24N9K31/A1V

Bosch Rexroth

R901015613

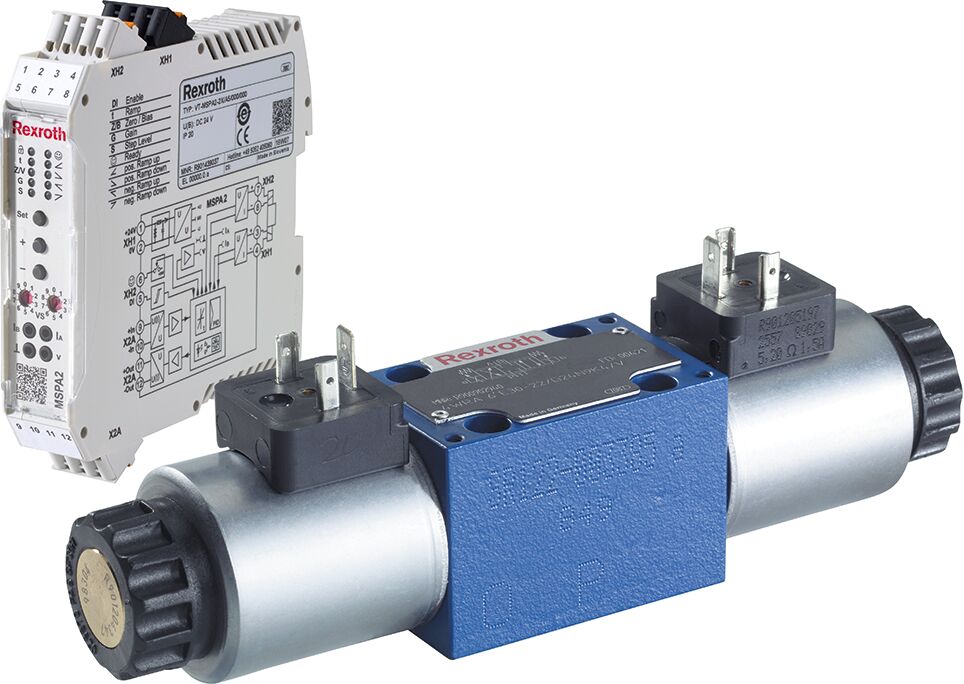

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E30-2X/G24K31/F1V

Bosch Rexroth

R900954071

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E30-2X/G24K31/A1V

Bosch Rexroth

R901581911

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E15-3X/VN9/24L1/B

Bosch Rexroth

R901560717

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E15-3X/VN9/24F1/B

Bosch Rexroth

R901560716

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E15-3X/VN9/24F1

Bosch Rexroth

R901571181

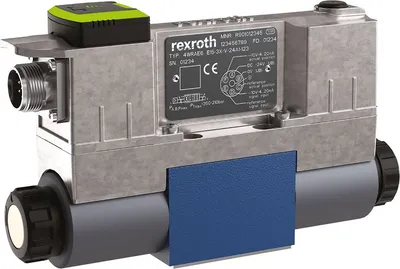

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E15-3X/VN9/24A1/B

Bosch Rexroth

R890000316

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E15-3X/MN9/24A1

Bosch Rexroth

R900909389

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E15-2X/G24N9K31/A1V

Bosch Rexroth

R901019997

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E15-2X/G24K31/F1V

Bosch Rexroth

R900954070

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E15-2X/G24K31/A1V

Bosch Rexroth

R901560998

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E1-30-3X/V/24L1/B

Bosch Rexroth

R901560997

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E1-30-3X/V/24A1/B

Bosch Rexroth

R901160386

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E1-30-2X/G24K31/F1V

Bosch Rexroth

R900954073

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E1-30-2X/G24K31/A1V

Bosch Rexroth

R900738355

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E1-15-2X/G24K31/F1V

Bosch Rexroth

R900954072

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E1-15-2X/G24K31/A1V

Bosch Rexroth

R900617493

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E1-07-2X/G24K31/F1V

Bosch Rexroth

R901015564

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E1-07-2X/G24K31/A1V

Bosch Rexroth

R901560999

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E07-3X/VN9/24L1/B

Bosch Rexroth

R890000272

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E07-3X/VN9/24F1

Bosch Rexroth

R901560687

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E07-3X/VN9/24A1/B

Compare Proportional directional valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Operating pressure, max. [bar]	Spool symbol	Nominal flow [l/min]	Connectivity	Weight [kg]
R901581906	350.0	Symbol E	26.0	Analog, command value ±10 V; Bluetooth	2.53
R901538961	350.0	Symbol E	26.0	Analog, command value ±10 V	2.5
R900558355	315.0	Symbol E	26.0	Analog, command value ±10 V	2.2
R901015613	315.0	Symbol E	26.0	Analog, command value 4…20 mA	2.22
R900954071	315.0	Symbol E	26.0	Analog, command value ±10 V	2.2
R901581911	350.0	Symbol E	15.0	Bluetooth; IO-Link	2.55
R901560717	350.0	Symbol E	15.0	Analog, command value 4…20 mA; Bluetooth	2.5
R901560716	350.0	Symbol E	15.0	Analog, command value 4…20 mA	2.55
R901571181	350.0	Symbol E	15.0	Analog, command value ±10 V; Bluetooth	2.54
R890000316	350.0	Symbol E	15.0	Analog, command value ±10 V	2.5
R900909389	315.0	Symbol E	15.0	Analog, command value ±10 V	2.2
R901019997	315.0	Symbol E	15.0	Analog, command value 4…20 mA	2.2
R900954070	315.0	Symbol E	15.0	Analog, command value ±10 V	2.24
R901560998	350.0	Symbol E1	26.0	Bluetooth; IO-Link	2.5
R901560997	350.0	Symbol E1	26.0	Analog, command value ±10 V; Bluetooth	2.5
R901160386	315.0	Symbol E1	26.0	Analog, command value 4…20 mA	2.2
R900954073	315.0	Symbol E1	26.0	Analog, command value ±10 V	2.2
R900738355	315.0	Symbol E1	15.0	Analog, command value 4…20 mA	2.22
R900954072	315.0	Symbol E1	15.0	Analog, command value ±10 V	2.2
R900617493	315.0	Symbol E1	7.0	Analog, command value 4…20 mA	2.22
R901015564	315.0	Symbol E1	7.0	Analog, command value ±10 V	2.18
R901560999	350.0	Symbol E	7.0	Bluetooth; IO-Link	2.5
R890000272	350.0	Symbol E	7.0	Analog, command value 4…20 mA	2.53
R901560687	350.0	Symbol E	7.0	Analog, command value ±10 V; Bluetooth	2.5

Common to all listed parts

Connection diagram	ISO 4401-03-02-0-05
Product family	4WRA
Max. flow [l/min]	42.0
Type of connection	Subplate mounting
Size	6
Type of actuation	Electrical with on-board electronics
Number of ports	4
Number of switching positions	3
