Proportional directional valves Parts

Bosch Rexroth

R901026400

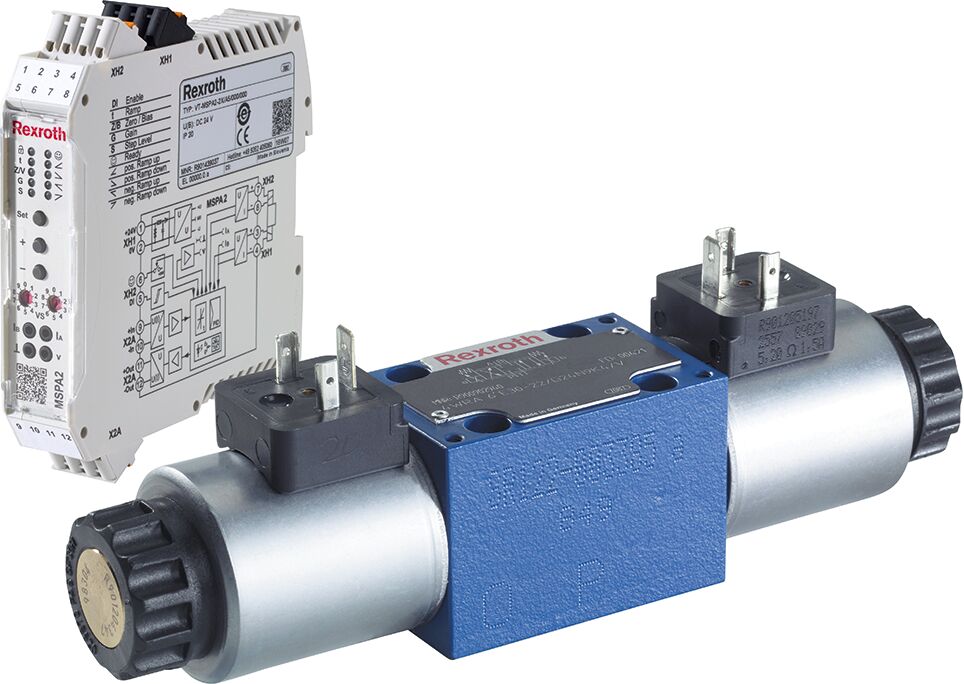

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-07-2X/G24K31/A1V

Bosch Rexroth

R901560727

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W07-3X/VN9/24L1/B

Bosch Rexroth

R901565001

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W07-3X/VN9/24F1/B

Bosch Rexroth

R901560726

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W07-3X/VN9/24A1/B

Bosch Rexroth

R901560721

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W07-3X/VN9/24A1

Bosch Rexroth

R901581904

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W07-3X/V/24F1/B

Bosch Rexroth

R901560678

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W07-3X/V/24F1

Bosch Rexroth

R900778280

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W07-2X/G24K31/F1V

Bosch Rexroth

R900954076

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W07-2X/G24K31/A1V

Bosch Rexroth

R901573515

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EB07-3X/V/24A1/B

Bosch Rexroth

R901582462

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA30J-3X/VN9/24A1/B

Bosch Rexroth

R901560702

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA30-3X/V/24L1/B

Bosch Rexroth

R901570738

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA30-3X/V/24F1/B

Bosch Rexroth

R901560697

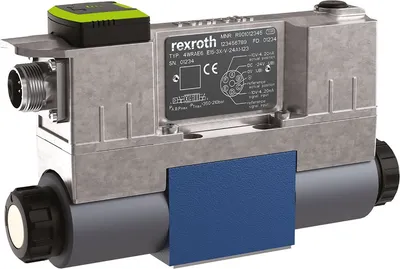

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA30-3X/V/24A1/B

Bosch Rexroth

R901560696

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA30-3X/V/24A1

Bosch Rexroth

R900954075

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA30-2X/G24K31/A1V

Bosch Rexroth

R901145773

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA15-2X/G24K31/F1V

Bosch Rexroth

R900954074

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA15-2X/G24K31/A1V

Bosch Rexroth

R901560728

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA07-3X/V/24L1/B

Bosch Rexroth

R900745630

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA07-2X/G24K31/A1V

Bosch Rexroth

R901582461

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E30J-3X/VN9/24A1/B

Bosch Rexroth

R901560994

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E30-3X/VN9/24L1/B

Bosch Rexroth

R901560677

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E30-3X/VN9/24A1/B

Bosch Rexroth

R901563042

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6E30-3X/V/24L1

Compare Proportional directional valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Operating pressure, max. [bar]	Spool symbol	Nominal flow [l/min]	Connectivity	Weight [kg]
R901026400	315.0	Symbol W1	7.0	Analog, command value ±10 V	2.2
R901560727	350.0	Symbol W	7.0	Bluetooth; IO-Link	2.5
R901565001	350.0	Symbol W	7.0	Analog, command value 4…20 mA; Bluetooth	2.53
R901560726	350.0	Symbol W	7.0	Analog, command value ±10 V; Bluetooth	2.5
R901560721	350.0	Symbol W	7.0	Analog, command value ±10 V	2.51
R901581904	350.0	Symbol W	7.0	Analog, command value 4…20 mA; Bluetooth	2.5
R901560678	350.0	Symbol W	7.0	Analog, command value 4…20 mA	2.5
R900778280	315.0	Symbol W	7.0	Analog, command value 4…20 mA	2.22
R900954076	315.0	Symbol W	7.0	Analog, command value ±10 V	2.2
R901573515	350.0	Symbol EB	7.0	Analog, command value ±10 V; Bluetooth	2.8
R901582462	350.0	Symbol EA	26.0	Analog, command value ±10 V; Bluetooth	1.8
R901560702	350.0	Symbol EA	26.0	Bluetooth; IO-Link	1.8
R901570738	350.0	Symbol EA	26.0	Analog, command value 4…20 mA; Bluetooth	1.8
R901560697	350.0	Symbol EA	26.0	Analog, command value ±10 V; Bluetooth	1.8
R901560696	350.0	Symbol EA	26.0	Analog, command value ±10 V	2.8
R900954075	315.0	Symbol EA	26.0	Analog, command value 0…10 V	1.7
R901145773	315.0	Symbol EA	15.0	Analog, command value 0…10 V	1.68
R900954074	315.0	Symbol EA	15.0	Analog, command value 0…10 V	1.72
R901560728	350.0	Symbol EA	7.0	Bluetooth; IO-Link	1.8
R900745630	315.0	Symbol EA	7.0	Analog, command value 0…10 V	1.68
R901582461	350.0	Symbol E	26.0	Analog, command value ±10 V; Bluetooth	2.5
R901560994	350.0	Symbol E	26.0	Bluetooth; IO-Link	2.51
R901560677	350.0	Symbol E	26.0	Analog, command value ±10 V; Bluetooth	2.5
R901563042	350.0	Symbol E	26.0	IO-Link	2.5

Common to all listed parts

Connection diagram	ISO 4401-03-02-0-05
Product family	4WRA
Max. flow [l/min]	42.0
Type of connection	Subplate mounting
Size	6
Type of actuation	Electrical with on-board electronics
Number of ports	4
Supply voltage	24 VDC
