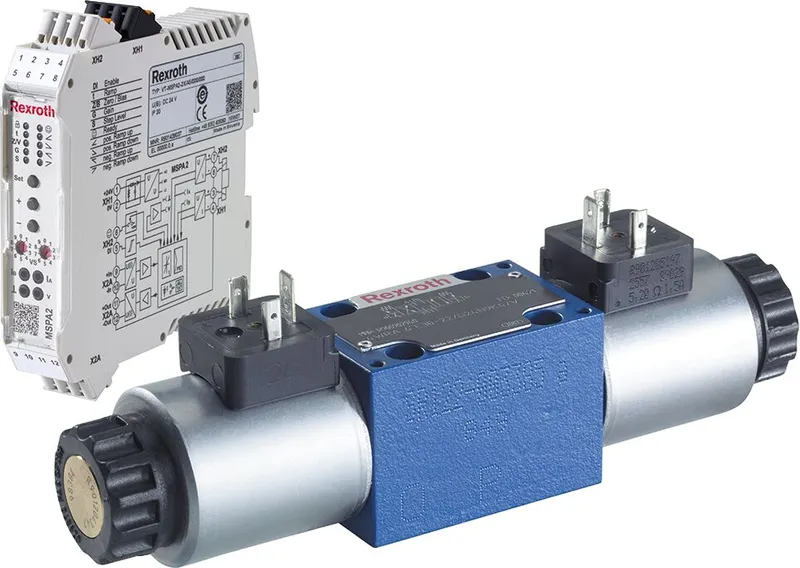

Bosch Rexroth R901018004 – PROPORTIONAL DIRECTIONAL VALVE 4WRAE6W1-15-2X/G24K31/F1V
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Proportional directional valves |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R901018004 be shipped?
R901018004 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901018004 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901018004 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901018004, subject to availability and destination.
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol.
Spool valve
Direct actuated
Specifications
Specifications
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WRA |
| Operating pressure, max. [bar] | 315.0 |
| Max. flow [l/min] | 42.0 |
| Spool symbol | Symbol W1 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 15.0 |
| Size | 6 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Connectivity | Analog, command value 4…20 mA |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU; UKCA – Electromagnetic compatibility (EMC) SI2016/1091 |
| Conformity | CE; UKCA |
| Hydraulic fluid | HEES; HEPG; HETG; HFDR; HFDU; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Weight [kg] | 2.22 |
