Danfoss orbital motor quick selector Parts

Danfoss

151B0308

OMTW 250 HD HYDRAULIC MOTOR

Danfoss

151B0307

OMTW 200 HD HYDRAULIC MOTOR

Danfoss

151B0303

OMT 315 HD HYDRAULIC MOTOR, OMT-0315-A-EB-G21-AD-1D-A31-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B0302

OMT 250 HD HYDRAULIC MOTOR

Danfoss

151B0301

OMT 200 HD HYDRAULIC MOTOR

Danfoss

129-0712-002

MOTOR-ORBITAL,J SERIES 50 [3], M0J30A01A1080A0B

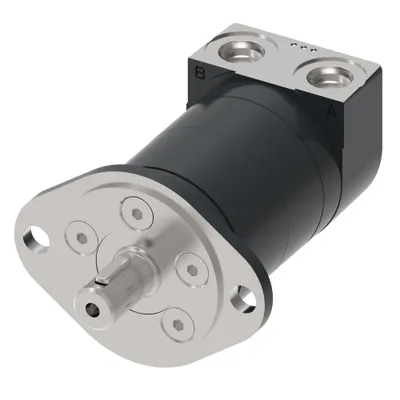

Danfoss

129-0701-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05C01D0000B0B

Danfoss

129-0692-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30B06E0000A0B

Danfoss

129-0679-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08D07E2003A0B

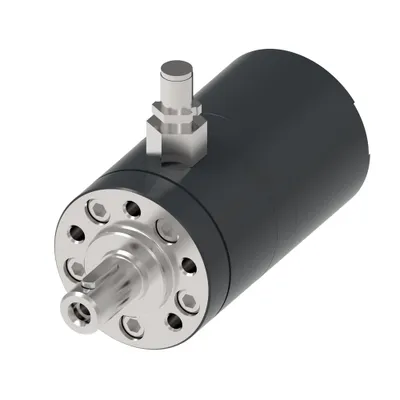

Danfoss

129-0640-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05A01A1080A0B

Danfoss

129-0638-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01D1070A0B

Danfoss

129-0637-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01A1000E0B

Danfoss

129-0636-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30B14E2000A0B

Danfoss

129-0611-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01A1000E0B

Danfoss

129-0589-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01A108000B

Danfoss

129-0588-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01D1000E0B

Danfoss

129-0579-002

MOTOR-ORBITAL,J SERIES 15 [.8], M0J08A01A1080A0B

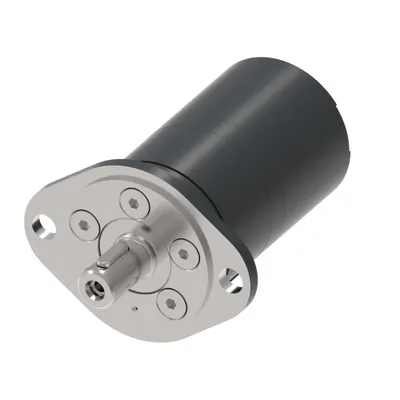

Danfoss

129-0571-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05C05A0000A0B

Danfoss

129-0562-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05A01E2000A0B

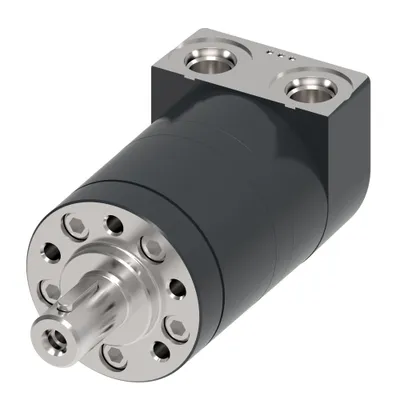

Danfoss

129-0560-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01D1000A3B

Danfoss

129-0558-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30B02E0000A0B

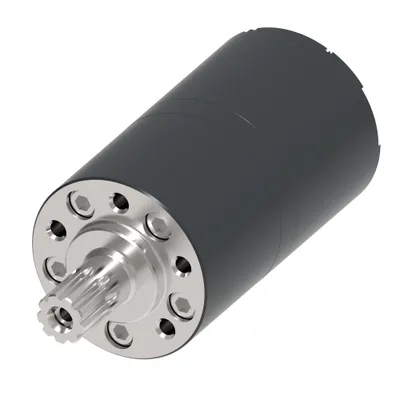

Danfoss

129-0549-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A23A1000A0B

Danfoss

129-0548-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B14F0000A0B

Danfoss

129-0547-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05B01A100000B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Main port dimension	Drain Port Dimension
151B0308	250	251.8 [15.36]	4 Bolt - Wheel	G 3/4, 4 x M10 block mounting threads	G 1/4
151B0307	200	201.4 [12.29]	4 Bolt - Wheel	G 3/4, 4 x M10 block mounting threads	G 1/4
151B0303	315	326.3 [19.91]	4 Bolt - Square	G 3/4, 4 x M10 block mounting threads	G 1/4
151B0302	250	251.8 [15.36]	4 Bolt - Square	G 3/4, 4 x M10 block mounting threads	G 1/4
151B0301	200	201.4 [12.29]	4 Bolt - Square	G 3/4, 4 x M10 block mounting threads	G 1/4
129-0712-002	50	49.2 [3.00]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0701-002	8	8.2 [0.50]	2 Bolt	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0692-002	50	49.2 [3.00]	5 Bolt - Round	G 3/8	None
129-0679-002	13	12.9 [0.79]	2 Bolt	G 3/8	G 1/8
129-0640-002	8	8.2 [0.50]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0638-002	30	31.6 [1.93]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0637-002	20	19.8 [1.21]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0636-002	50	49.2 [3.00]	5 Bolt - Round	G 3/8	G 1/8
129-0611-002	30	31.6 [1.93]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0589-002	20	19.8 [1.21]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0588-002	20	19.8 [1.21]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0579-002	13	12.9 [0.79]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0571-002	8	8.2 [0.50]	2 Bolt	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0562-002	8	8.2 [0.50]	5 Bolt - Round	G 3/8	G 1/8
129-0560-002	30	31.6 [1.93]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0558-002	50	49.2 [3.00]	5 Bolt - Round	G 3/8	None
129-0549-002	30	31.6 [1.93]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0548-002	13	12.9 [0.79]	5 Bolt - Round	G 1/4	None
129-0547-002	8	8.2 [0.50]	5 Bolt - Round	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port

Common to all listed parts

Orbital gearwheel set type	Geroler
Brake Release Port Dimension	n/a
Dust seal	Standard
Shaft Seal	NBR - Standard
Check valve function	No
Hydraulic valve function	None
Packaging	Single pack
