Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Motor type | Motor function | Brake Release Port Dimension |
|---|---|---|---|---|---|
| 151Z3094 | 500 | 494.8 [30.19] | Motor - Brake | Brake - Low release pressure | 7/16 - 20 UNF-2B SAE O-Ring Port |
| 151Z3093 | 470 | 477.3 [29.13] | Motor - Brake | Brake - Low release pressure | 7/16 - 20 UNF-2B SAE O-Ring Port |
| 151Z3092 | 400 | 410.9 [25.07] | Motor - Brake | Brake - Low release pressure | 7/16 - 20 UNF-2B SAE O-Ring Port |
| 151Z3091 | 315 | 326.3 [19.91] | Motor - Brake | Brake - Low release pressure | 7/16 - 20 UNF-2B SAE O-Ring Port |
| 151Z3085 | 630 | 629.1 [38.39] | Standard | Standard | n/a |
| 151Z3084 | 500 | 494.8 [30.19] | Standard | Standard | n/a |
| 151Z3083 | 470 | 477.3 [29.13] | Standard | Standard | n/a |
| 151Z3082 | 400 | 410.9 [25.07] | Standard | Standard | n/a |
| 151Z3081 | 315 | 326.3 [19.91] | Standard | Standard | n/a |
| 151Z3080 | 250 | 251.8 [15.37] | Standard | Standard | n/a |
| 151Z3075 | 630 | 629.1 [38.39] | Standard | Standard | n/a |
| 151Z3074 | 500 | 494.8 [30.19] | Standard | Standard | n/a |
| 151Z3072 | 400 | 410.9 [25.07] | Standard | Standard | n/a |
| 151Z3071 | 315 | 326.3 [19.91] | Standard | Standard | n/a |
| 151Z3070 | 250 | 251.8 [15.37] | Standard | Standard | n/a |
| 151Z3055 | 630 | 629.1 [38.39] | Motor - Brake | Brake - Low release pressure | G 1/4 |
| 151Z3054 | 500 | 494.8 [30.19] | Motor - Brake | Brake - Low release pressure | G 1/4 |
| 151Z3053 | 470 | 477.3 [29.13] | Motor - Brake | Brake - Low release pressure | G 1/4 |

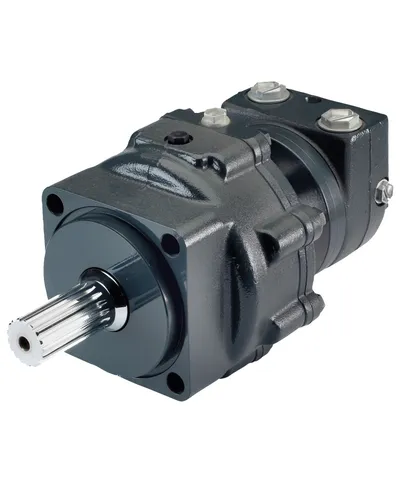

| 151Z3052 | 400 | 410.9 [25.07] | Motor - Brake | Brake - Low release pressure | G 1/4 |
Common to all listed parts
| Motor Series | TMT Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Main port style | Sideport - staggered |
| Painted | No |
| Paint information | n/a |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
