Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Mounting flange type | Shaft type | Brake Release Port Dimension |
|---|---|---|---|---|---|

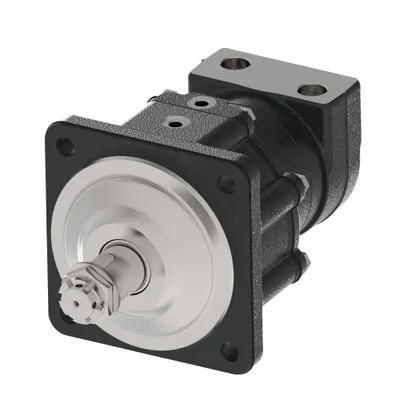

| 151Z3135 | 630 | 629.1 [38.39] | 4 Bolt - Square | Splined | 7/16 - 20 UNF-2B SAE O-Ring Port |
| 151Z3134 | 500 | 494.8 [30.19] | 4 Bolt - Square | Splined | 7/16 - 20 UNF-2B SAE O-Ring Port |
| 151Z3133 | 470 | 477.3 [29.13] | 4 Bolt - Square | Splined | 7/16 - 20 UNF-2B SAE O-Ring Port |
| 151Z3131 | 315 | 326.3 [19.91] | 4 Bolt - Square | Splined | 7/16 - 20 UNF-2B SAE O-Ring Port |
| 151Z3130 | 250 | 251.8 [15.37] | 4 Bolt - Square | Splined | 7/16 - 20 UNF-2B SAE O-Ring Port |
| 151Z3125 | 630 | 629.1 [38.39] | 4 Bolt - Square | TAPERED | G 1/4 |
| 151Z3124 | 500 | 494.8 [30.19] | 4 Bolt - Square | TAPERED | G 1/4 |
| 151Z3123 | 470 | 477.3 [29.13] | 4 Bolt - Square | TAPERED | G 1/4 |
| 151Z3122 | 400 | 410.9 [25.07] | 4 Bolt - Square | TAPERED | G 1/4 |
| 151Z3121 | 315 | 326.3 [19.91] | 4 Bolt - Square | TAPERED | G 1/4 |
| 151Z3120 | 250 | 251.8 [15.37] | 4 Bolt - Square | TAPERED | G 1/4 |
| 151Z3115 | 630 | 629.1 [38.39] | 4 Bolt - Square | Splined | G 1/4 |
| 151Z3114 | 500 | 494.8 [30.19] | 4 Bolt - Square | Splined | G 1/4 |
| 151Z3113 | 470 | 477.3 [29.13] | 4 Bolt - Square | Splined | G 1/4 |
| 151Z3112 | 400 | 410.9 [25.07] | 4 Bolt - Square | Splined | G 1/4 |
| 151Z3111 | 315 | 326.3 [19.91] | 4 Bolt - Square | Splined | G 1/4 |
| 151Z3110 | 250 | 251.8 [15.37] | 4 Bolt - Square | Splined | G 1/4 |
| 151Z3105 | 630 | 629.1 [38.39] | 6 Bolt - Short | None | n/a |
| 151Z3104 | 500 | 494.8 [30.19] | 6 Bolt - Short | None | n/a |
| 151Z3102 | 400 | 410.9 [25.07] | 6 Bolt - Short | None | n/a |
| 151Z3101 | 315 | 326.3 [19.91] | 6 Bolt - Short | None | n/a |
| 151Z3100 | 250 | 251.8 [15.37] | 6 Bolt - Short | None | n/a |
| 151Z3095 | 630 | 629.1 [38.39] | 4 Bolt - C | Splined | 7/16 - 20 UNF-2B SAE O-Ring Port |
Common to all listed parts
| Motor Series | TMT Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Main port style | Sideport - staggered |
| Painted | No |
| Paint information | n/a |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
