Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Mounting flange type | Shaft type | Dust seal |
|---|---|---|---|---|---|
| 151Z3020 | 250 | 251.8 [15.37] | 4 Bolt - Square | Splined | Integrated in shaft seal |
| 151Z3019 | 500 | 494.8 [30.19] | 4 Bolt - Square | Straight | Integrated in shaft seal |

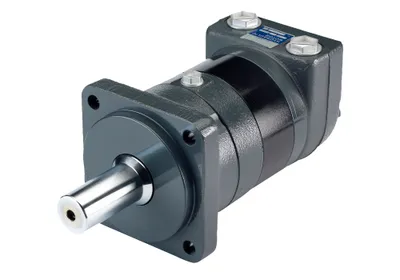

| 151Z3017 | 315 | 326.3 [19.91] | 4 Bolt - Square | Straight | Integrated in shaft seal |
| 151Z3016 | 250 | 251.8 [15.37] | 4 Bolt - Square | Straight | Integrated in shaft seal |

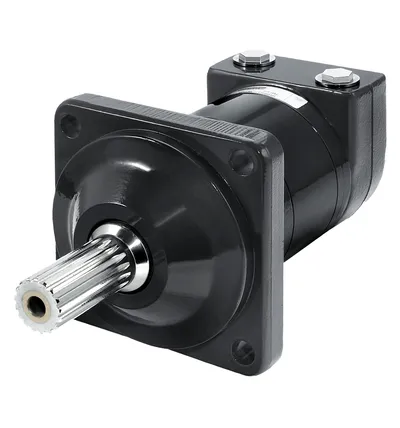

| 151Z3014 | 500 | 494.8 [30.19] | 4 Bolt - Square | Straight | Integrated in shaft seal |
| 151Z3013 | 470 | 477.3 [29.13] | 4 Bolt - Square | Straight | Integrated in shaft seal |
| 151Z3012 | 400 | 410.9 [25.07] | 4 Bolt - Square | Straight | Integrated in shaft seal |
| 151Z3011 | 315 | 326.3 [19.91] | 4 Bolt - Square | Straight | Integrated in shaft seal |
| 151Z3010 | 250 | 251.8 [15.37] | 4 Bolt - Square | Straight | Integrated in shaft seal |
| 151Z3005 | 630 | 629.1 [38.39] | 6 Bolt - Short | None | n/a |

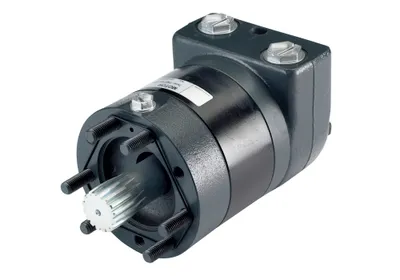

| 151Z3004 | 500 | 494.8 [30.19] | 6 Bolt - Short | None | n/a |
| 151Z3003 | 470 | 477.3 [29.13] | 6 Bolt - Short | None | n/a |
| 151Z3002 | 400 | 410.9 [25.07] | 6 Bolt - Short | None | n/a |
| 151Z3001 | 315 | 326.3 [19.91] | 6 Bolt - Short | None | n/a |
| 151Z3000 | 250 | 251.8 [15.37] | 6 Bolt - Short | None | n/a |
| 151F6145 | 470 | 471.1 [28.75] | 4 Bolt - C | TAPERED | Standard |
| 151F6144 | 400 | 397.2 [24.24] | 4 Bolt - C | TAPERED | Standard |
| 151F6143 | 315 | 315.3 [19.23] | 4 Bolt - C | TAPERED | Standard |
| 151F6142 | 250 | 252.2 [15.39] | 4 Bolt - C | TAPERED | Standard |
| 151F6141 | 200 | 201.5 [12.30] | 4 Bolt - C | TAPERED | Standard |
| 151F6140 | 160 | 158.0 [9.64] | 4 Bolt - C | TAPERED | Standard |
Common to all listed parts
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor function | Standard |
| Main port style | Sideport - staggered |
| Brake Release Port Dimension | n/a |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
| Orbital gearwheel set | Standard |
