Danfoss orbital motor quick selector Parts
![Danfoss 151Z8208 – MOTOR-ORBITAL,TMV SERIES 800 [48.8], TMV-0800-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN](/media/assets/danfoss-drives/151z8208/images/sha256_7a7ce347bac56a1c41a72d3dc66e89683928d3461708e71ff6a2dad2c815736f.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fphotos%2Fpreview%2Flatest%2F119476%2FID114021258166-0101_preview.jpg&w=400 "Danfoss 151Z8208 – MOTOR-ORBITAL,TMV SERIES 800 [48.8], TMV-0800-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN")
Danfoss
151Z8208MOTOR-ORBITAL,TMV SERIES 800 [48.8], TMV-0800-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN
![Danfoss 151Z8207 – MOTOR-ORBITAL,TMV SERIES 630 [38.4], TMV-0630-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN](/media/assets/danfoss-drives/151z8207/images/sha256_7a7ce347bac56a1c41a72d3dc66e89683928d3461708e71ff6a2dad2c815736f.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fphotos%2Fpreview%2Flatest%2F119476%2FID114021258166-0101_preview.jpg&w=400 "Danfoss 151Z8207 – MOTOR-ORBITAL,TMV SERIES 630 [38.4], TMV-0630-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN")
Danfoss
151Z8207MOTOR-ORBITAL,TMV SERIES 630 [38.4], TMV-0630-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN
![Danfoss 151Z8206 – MOTOR-ORBITAL,TMV SERIES 500 [30.5], TMV-0500-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN](/media/assets/danfoss-drives/151z8206/images/sha256_7a7ce347bac56a1c41a72d3dc66e89683928d3461708e71ff6a2dad2c815736f.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fphotos%2Fpreview%2Flatest%2F119476%2FID114021258166-0101_preview.jpg&w=400 "Danfoss 151Z8206 – MOTOR-ORBITAL,TMV SERIES 500 [30.5], TMV-0500-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN")
Danfoss
151Z8206MOTOR-ORBITAL,TMV SERIES 500 [30.5], TMV-0500-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN
![Danfoss 151Z8205 – MOTOR-ORBITAL,TMV SERIES 400 [24.4], TMV-0400-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN](/media/assets/danfoss-drives/151z8205/images/sha256_7a7ce347bac56a1c41a72d3dc66e89683928d3461708e71ff6a2dad2c815736f.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fphotos%2Fpreview%2Flatest%2F119476%2FID114021258166-0101_preview.jpg&w=400 "Danfoss 151Z8205 – MOTOR-ORBITAL,TMV SERIES 400 [24.4], TMV-0400-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN")
Danfoss
151Z8205MOTOR-ORBITAL,TMV SERIES 400 [24.4], TMV-0400-B-NN-W57-AF-1E-K11-A-E-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Mounting flange type | Shaft type | Main port dimension |
|---|---|---|---|---|---|

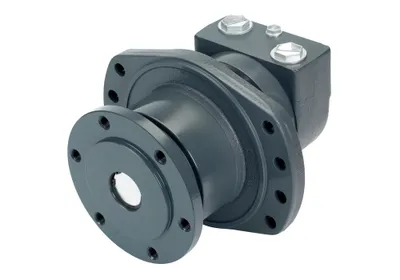

| 151Z8210 | 400 | 400.9 [24.46] | 8 Bolt - Wheel | Wheel hub | 1 5/16 - 12 UN-2B SAE O-Ring port, - |
| 151Z8208 | 800 | 801.8 [48.93] | 8 Bolt - Wheel | Wheel hub | G 1, 5 x M10 block mounting threads |
| 151Z8207 | 630 | 629.1 [38.39] | 8 Bolt - Wheel | Wheel hub | G 1, 5 x M10 block mounting threads |
| 151Z8206 | 500 | 499.6 [30.49] | 8 Bolt - Wheel | Wheel hub | G 1, 5 x M10 block mounting threads |
| 151Z8205 | 400 | 400.9 [24.46] | 8 Bolt - Wheel | Wheel hub | G 1, 5 x M10 block mounting threads |

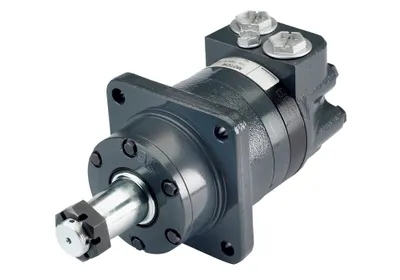

| 151Z3285 | 250 | 251.8 [15.37] | 4 Bolt - Square | Straight | G 3/4, 5 x M10 block mounting threads |
| 151Z3278 | 630 | 629.1 [38.39] | 10 Bolt - Wheel | Wheel hub | 1 1/16 - 12 UN-2B SAE O-Ring port, - |

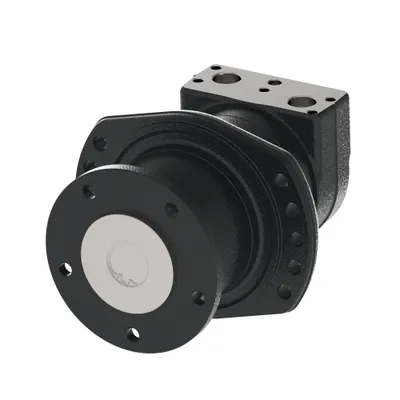

| 151Z3273 | 250 | 251.8 [15.37] | 10 Bolt - Wheel | Wheel hub | 1 1/16 - 12 UN-2B SAE O-Ring port, - |
| 151Z3264 | 315 | 326.3 [19.91] | 4 Bolt - Square | Splined | G 3/4 |
| 151Z3263 | 250 | 251.8 [15.37] | 4 Bolt - Square | Splined | G 3/4 |
| 151Z3243 | 470 | 477.3 [29.13] | 4 Bolt - Square | Straight | G 3/4 |

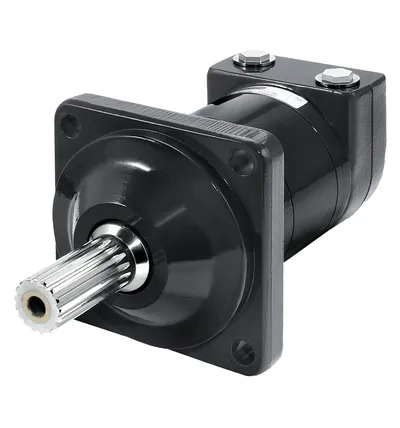

| 151Z3201 | 470 | 477.3 [29.13] | 4 Bolt - Square | TAPERED | G 3/4 |
Common to all listed parts
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor function | Standard |
| Main port style | Sideport - staggered |
| Brake Release Port Dimension | n/a |
| Special Features Assembly | Standard |
| Shaft Seal | NBR - Standard |
| Front bearing type | Tapered roller bearing |
