Danfoss orbital motor quick selector Parts

Danfoss

158-1028-001

MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096AA01AB0000000000000AA00A

Danfoss

158-1024-001

MOTOR-ORBITAL,T SERIES 370 [22.6], MT0226BA01AC0000000000000AA00A

Danfoss

158-1021-001

MOTOR-ORBITAL,T SERIES 195 [11.9], MT0119BA01AC0000000000000AA00A

Danfoss

158-1020-001

MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096BA01AC0000000000000AA00A

Danfoss

158-1019-001

MOTOR-ORBITAL,T SERIES 100 [6.2], MT0062BA01AC0000000000000AA00A

Danfoss

158-1018-001

MOTOR-ORBITAL,T SERIES 80 [4.9], MT0049BA01AC0000000000000AA00A

Danfoss

158-1016-001

MOTOR-ORBITAL,T SERIES 370 [22.6], MT0226BA01AA0000000000000AA00A

Danfoss

158-1015-001

MOTOR-ORBITAL,T SERIES 305 [18.7], MT0187BA01AA0000000000000AA00A

Danfoss

158-1014-001

MOTOR-ORBITAL,T SERIES 245 [14.9], MT0149BA01AA0000000000000AA00A

Danfoss

158-1013-001

MOTOR-ORBITAL,T SERIES 195 [11.9], MT0119BA01AA0000000000000AA00A

Danfoss

158-1012-001

MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096BA01AA0000000000000AA00A

Danfoss

158-1011-001

MOTOR-ORBITAL,T SERIES 100 [6.2], MT0062BA01AA0000000000000AA00A

Danfoss

158-1010-001

MOTOR-ORBITAL,T SERIES 80 [4.9], MT0049BA01AA0000000000000AA00A

Danfoss

158-1008-001

MOTOR-ORBITAL,T SERIES 370 [22.6], MT0226BA01AB0000000000000AA00A

Danfoss

158-1007-001

MOTOR-ORBITAL,T SERIES 305 [18.7], MT0187BA01AB0000000000000AA00A

Danfoss

158-1006-001

MOTOR-ORBITAL,T SERIES 245 [14.9], MT0149BA01AB0000000000000AA00A

Danfoss

158-1005-001

MOTOR-ORBITAL,T SERIES 195 [11.9], MT0119BA01AB0000000000000AA00A

Danfoss

158-1004-001

MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096BA01AB0000000000000AA00A

Danfoss

158-1003-001

MOTOR-ORBITAL,T SERIES 100 [6.2], MT0062BA01AB0000000000000AA00A

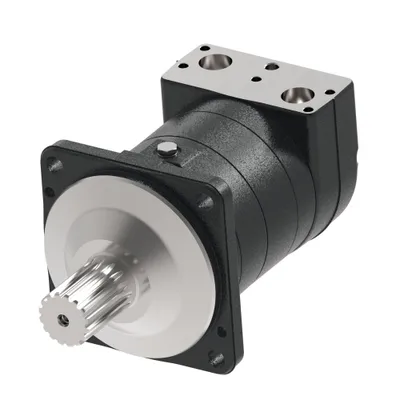

Danfoss

151Z8217

TMV 630 HYDRAULIC MOTOR

Danfoss

151Z8214

TMV 800 HYDRAULIC MOTOR

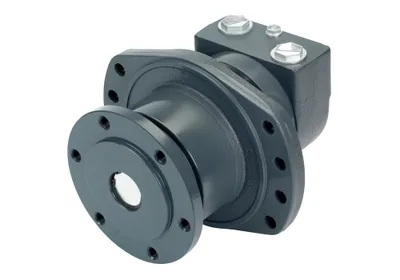

Danfoss

151Z8213

TMVW 800 HYDRAULIC MOTOR

Danfoss

151Z8212

TMVW 630 HYDRAULIC MOTOR

Danfoss

151Z8211

TMVW 500 HYDRAULIC MOTOR

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Main port thread type	Seal Kit
158-1028-001	160	158 [9.6]	2 Bolt - A	NPT / NPTF	9900808-000
158-1024-001	370	370 [22.6]	4 Bolt - Square	Manifold	9900804-000
158-1021-001	195	195 [11.9]	4 Bolt - Square	Manifold	9900804-000
158-1020-001	160	158 [9.6]	4 Bolt - Square	Manifold	9900804-000
158-1019-001	100	102 [6.2]	4 Bolt - Square	Manifold	9900804-000
158-1018-001	80	80 [4.9]	4 Bolt - Square	Manifold	9900804-000
158-1016-001	370	370 [22.6]	4 Bolt - Square	UN / UNF	9900808-000
158-1015-001	305	306 [18.9]	4 Bolt - Square	UN / UNF	9900808-000
158-1014-001	245	244 [14.9]	4 Bolt - Square	UN / UNF	9900808-000
158-1013-001	195	195 [11.9]	4 Bolt - Square	UN / UNF	9900808-000
158-1012-001	160	158 [9.6]	4 Bolt - Square	UN / UNF	9900808-000
158-1011-001	100	102 [6.2]	4 Bolt - Square	UN / UNF	9900808-000
158-1010-001	80	80 [4.9]	4 Bolt - Square	UN / UNF	9900808-000
158-1008-001	370	370 [22.6]	4 Bolt - Square	NPT / NPTF	9900808-000
158-1007-001	305	306 [18.9]	4 Bolt - Square	NPT / NPTF	9900808-000
158-1006-001	245	244 [14.9]	4 Bolt - Square	NPT / NPTF	9900808-000
158-1005-001	195	195 [11.9]	4 Bolt - Square	NPT / NPTF	9900808-000
158-1004-001	160	158 [9.6]	4 Bolt - Square	NPT / NPTF	9900808-000
158-1003-001	100	102 [6.2]	4 Bolt - Square	NPT / NPTF	9900808-000
151Z8217	630	629.1 [38.39]	4 Bolt - Square	BSP	11052439
151Z8214	800	801.8 [48.93]	4 Bolt - Square	BSP	11052439
151Z8213	800	801.8 [48.93]	8 Bolt - Wheel	UN / UNF	151Z7080
151Z8212	630	629.1 [38.39]	8 Bolt - Wheel	UN / UNF	151Z7080
151Z8211	500	499.6 [30.49]	8 Bolt - Wheel	UN / UNF	151Z7080

Common to all listed parts

Orbital gearwheel set type	Geroler
Motor function	Standard
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Shaft Seal	NBR - Standard
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
