Danfoss 151Z8210

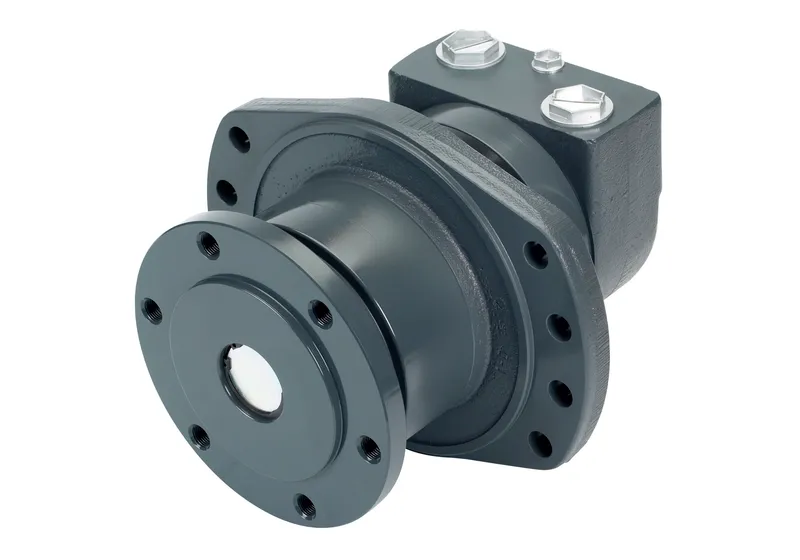

TMVW 400 HYDRAULIC MOTOR

MPN: 151Z8210
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151Z8210?

Danfoss TMVW 400 HYDRAULIC MOTOR, manufacturer part number 151Z8210. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	TMV-0400-B-NN-W57-AV-2F-K11-A-E-2C-0-N-NN-AAE23-NN-NN-NN-SP-NNN
Motor Series	TMV Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	400
Geometric displacement [cm3/r [in3/r]]	400.9 [24.46]
Motor type	Wheel
Motor function	Standard
Mounting flange type	8 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	223.9 x 5.0, 265.0, 17.6 [8.82 x 0.20, 10.43, 0.69] Rear: 223.9 x 5.0, 265.0, 17.6 [8.82 x 0.20, 10.43, 0.69]
Shaft type	Wheel hub
Shaft dimension	Thread Hole Flange: 6 x M16 x 1.5 - BCD 170 mm [6.7 inch]
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 5/16 - 12 UN-2B SAE O-Ring port, -
Drain Port Dimension	9/16 - 18 UNF-2B O-Ring port
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black, Medium gloss
Special features hardware	Standard
Special Features Assembly	Standard
Dust seal	PU - ring
Shaft Seal	NBR - Standard
Seal Kit	151Z7080
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	00
Delete Model Code	Yes
Proposition 65	Cancer and Reproductive Harm
