Danfoss orbital motor quick selector Parts

Danfoss

016-0335-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AC08AE010000A000C00B

Danfoss

016-0329-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AD08AE010000A000C00B

Danfoss

016-0328-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AD08AE010000A000C00B

Danfoss

016-0325-002

MOTOR-ORBITAL,XLH SERIES 55 [3.2], MCH053AD08AE010000A000C00B

Danfoss

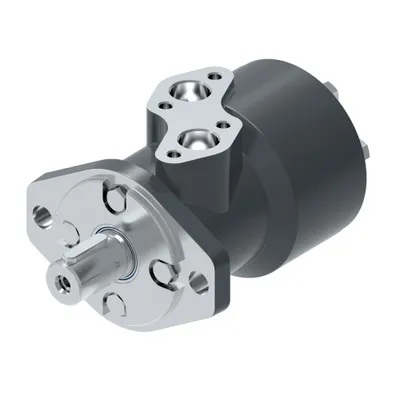

016-0324-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AA01AA110020A000C00B

Danfoss

016-0323-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AA01AA110020A000C00B

Danfoss

016-0322-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA01AA110020A000C00B

Danfoss

016-0321-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA01AA110020A000C00B

Danfoss

016-0320-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA01AA110020A000C00B

Danfoss

016-0305-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AC05AE010000A000C00B

Danfoss

016-0304-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AC05AE010000A000C00B

Danfoss

016-0303-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AC05AE010000A000C00B

Danfoss

016-0302-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AC05AE010000A000C00B

Danfoss

016-0301-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AC05AE010000A000C00B

Danfoss

016-0300-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AC05AE010000A000C00B

Danfoss

016-0299-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AC05AE010000A000C00B

Danfoss

016-0298-002

MOTOR-ORBITAL,XLH SERIES 63 [3.8], MCH063AC05AE010000A000C00B

Danfoss

016-0297-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AC05AE010000A000C00B

Danfoss

016-0294-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AC04AE010000A000C00B

Danfoss

016-0287-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AC04AE010000A000C00B

Danfoss

016-0276-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AD05AE010000A000C00B

Danfoss

016-0275-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AD05AE010000A000C00B

Danfoss

016-0272-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AD04AE010000A000C00B

Danfoss

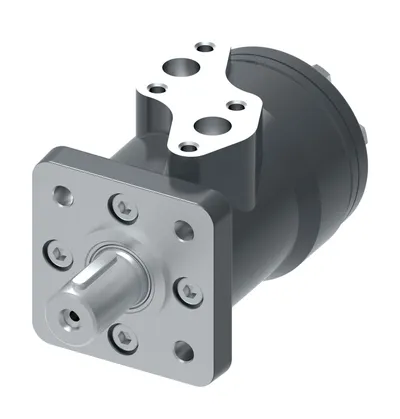

016-0269-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AD04AE010000A000C00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
016-0335-002	MCH053AC08AE010000A000C00B	55	53.0 [3.23]	2 Bolt - A	n/a
016-0329-002	MCH125AD08AE010000A000C00B	120	121.0 [7.38]	4 Bolt - Square	n/a
016-0328-002	MCH100AD08AE010000A000C00B	100	97.9 [5.97]	4 Bolt - Square	n/a
016-0325-002	MCH053AD08AE010000A000C00B	55	53.0 [3.23]	4 Bolt - Square	n/a
016-0324-002	MCH390AA01AA110020A000C00B	390	390.8 [23.85]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
016-0323-002	MCH315AA01AA110020A000C00B	315	317.0 [19.34]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
016-0322-002	MCH245AA01AA110020A000C00B	240	240.0 [14.64]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
016-0321-002	MCH200AA01AA110020A000C00B	200	195.0 [11.90]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
016-0320-002	MCH100AA01AA110020A000C00B	100	97.9 [5.97]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
016-0305-002	MCH390AC05AE010000A000C00B	390	390.8 [23.85]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
016-0304-002	MCH315AC05AE010000A000C00B	315	317.0 [19.34]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
016-0303-002	MCH245AC05AE010000A000C00B	240	240.0 [14.64]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
016-0302-002	MCH200AC05AE010000A000C00B	200	195.0 [11.90]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
016-0301-002	MCH160AC05AE010000A000C00B	160	158.0 [9.64]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
016-0300-002	MCH125AC05AE010000A000C00B	120	121.0 [7.38]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
016-0299-002	MCH100AC05AE010000A000C00B	100	97.9 [5.97]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
016-0298-002	MCH063AC05AE010000A000C00B	65	63.6 [3.88]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
016-0297-002	MCH053AC05AE010000A000C00B	55	53.0 [3.23]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
016-0294-002	MCH245AC04AE010000A000C00B	240	240.0 [14.64]	2 Bolt - A	n/a
016-0287-002	MCH053AC04AE010000A000C00B	55	53.0 [3.23]	2 Bolt - A	n/a
016-0276-002	MCH315AD05AE010000A000C00B	315	317.0 [19.34]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
016-0275-002	MCH125AD05AE010000A000C00B	120	121.0 [7.38]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
016-0272-002	MCH315AD04AE010000A000C00B	315	317.0 [19.34]	4 Bolt - Square	n/a
016-0269-002	MCH160AD04AE010000A000C00B	160	158.0 [9.64]	4 Bolt - Square	n/a

Common to all listed parts

Motor Series	XLH Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	Yes
