Danfoss (Drives)

Danfoss 016-0287-002

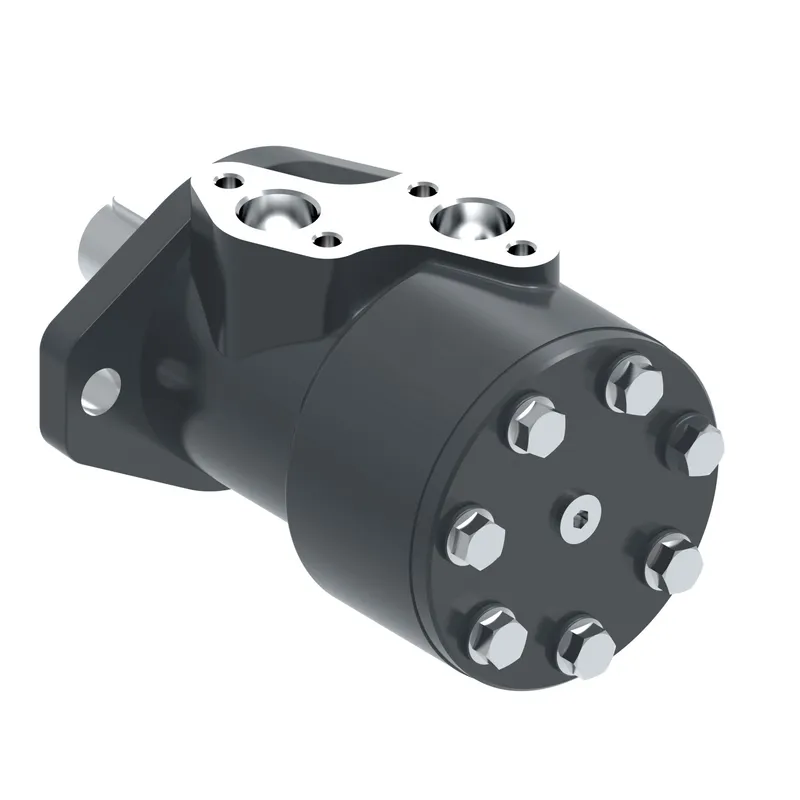

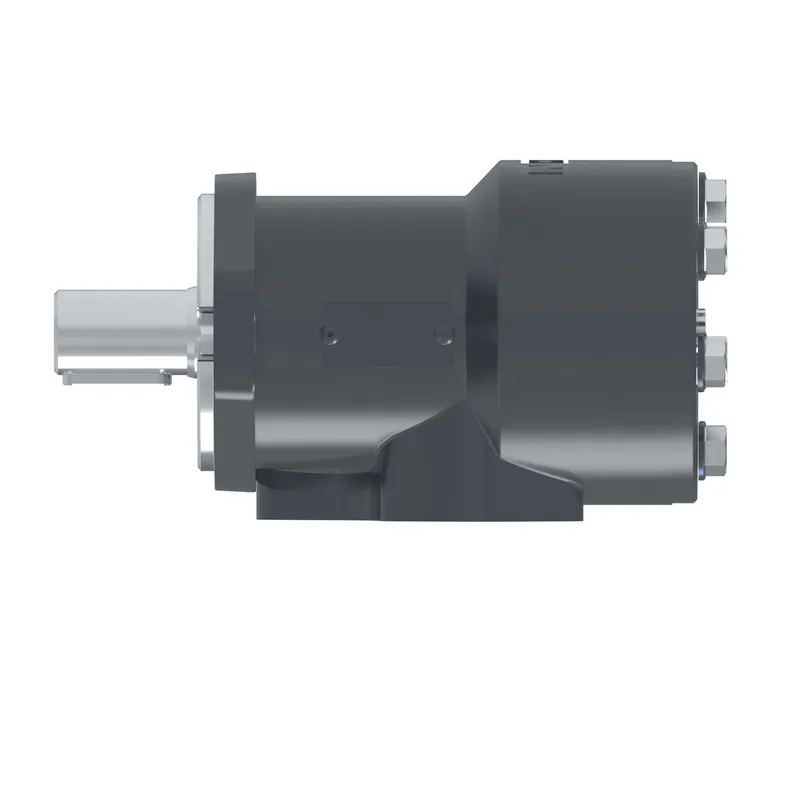

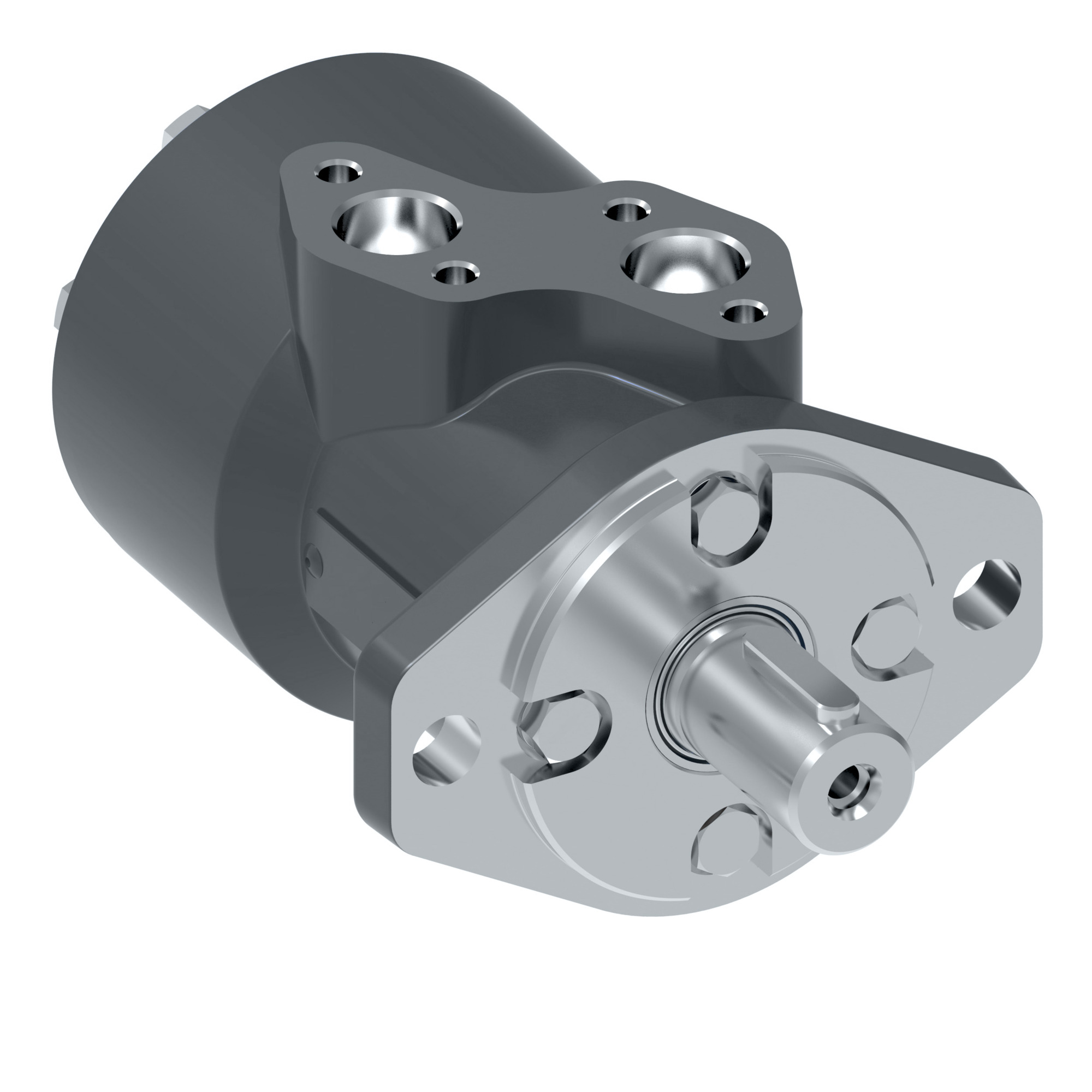

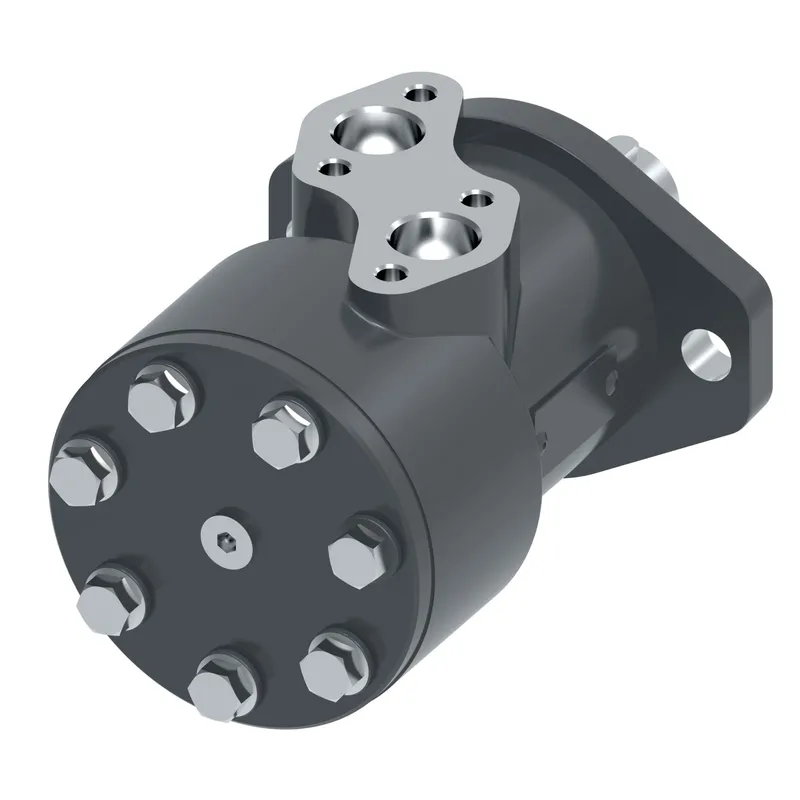

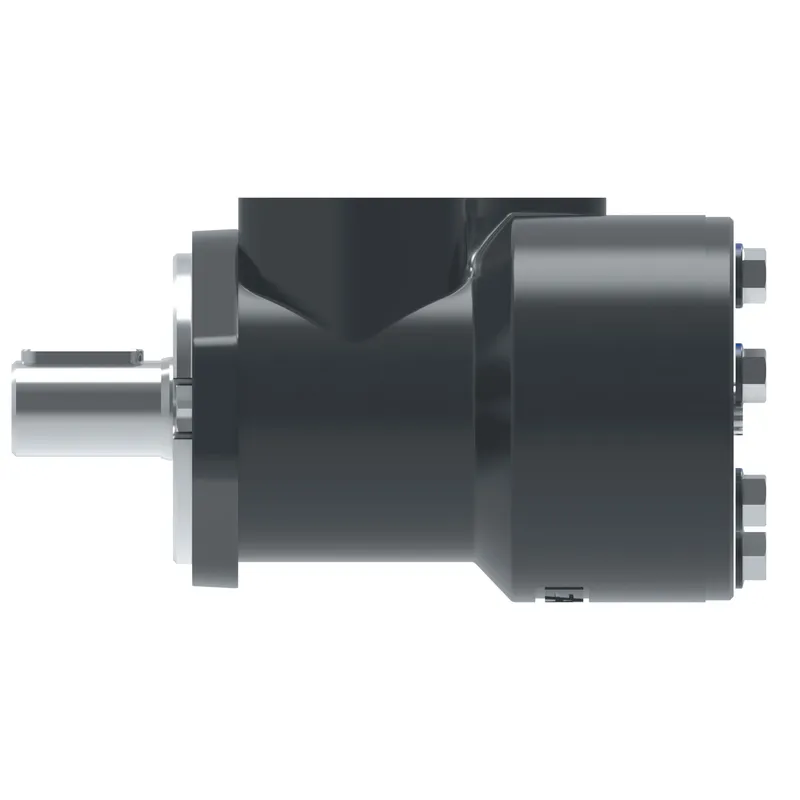

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AC04AE010000A000C00B

MPN: 016-0287-002
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 016-0287-002?

Danfoss MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AC04AE010000A000C00B, manufacturer part number 016-0287-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MCH053AC04AE010000A000C00B
Motor Series	XLH Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor size	55
Geometric displacement [cm3/r [in3/r]]	53.0 [3.23]
Motor type	Standard
Motor function	Standard
Mounting flange type	2 Bolt - A
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 2.8, 106.4, 13.5 [3.25 x 0.11, 4.19, 0.53]
Shaft type	Splined
Shaft dimension	Dia. 1 inch, SAE 6B J499, 1/4 - 20 UNC-2B thread in shaft end
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port, 4 x M8 block mounting threads
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	Z331-23
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	No data available
Name Tag	Danfoss name tag
Design code	2
Brand	Danfoss
Sub brand	Xcel
