Danfoss orbital motor quick selector Parts

Danfoss

016-0263-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AA02AA110020A000B00B

Danfoss

016-0261-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AA02AA110020A000B00B

Danfoss

016-0258-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA02AA110020A000B00B

Danfoss

016-0257-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA02AA110020A000B00B

Danfoss

016-0256-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA02AA110020A000B00B

Danfoss

016-0255-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA02AA110020A000B00B

Danfoss

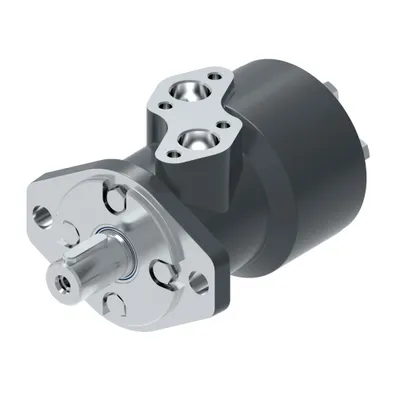

016-0253-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA02AA110020A000B00B

Danfoss

016-0252-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AC05AE010000A000C00B

Danfoss

016-0246-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AD05AE010000A000C00B

Danfoss

016-0242-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AD03AA110000A000B00B

Danfoss

016-0239-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AD03AA110000A000B00B

Danfoss

016-0238-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AD03AA110000A000B00B

Danfoss

016-0236-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AD03AA110000A000B00B

Danfoss

016-0235-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA02AA110000A000C00B

Danfoss

016-0231-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AD05AE010000A000C00B

Danfoss

016-0230-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AD05AE010000A000C00B

Danfoss

016-0229-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AD05AB010000A000C00B

Danfoss

016-0227-002

MOTOR-ORBITAL,XLH SERIES 245 [15], MCH245AD05AB010000A000C00B

Danfoss

016-0226-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AD05AB010000A000C00B

Danfoss

016-0225-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AD05AB010000A000C00B

Danfoss

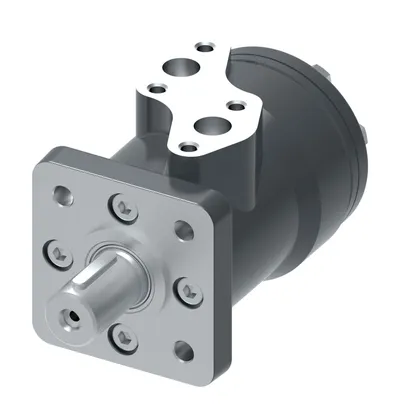

016-0208-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AD05AE010000A000C00B

Danfoss

016-0207-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AD05AE010000A000C00B

Danfoss

016-0206-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AD05AE010000A000C00B

Danfoss

016-0205-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AD05AE010000A000C00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Main port thread type
016-0263-002	MCH125AA02AA110020A000B00B	120	121.0 [7.38]	2 Bolt - A	BSP
016-0261-002	MCH390AA02AA110020A000B00B	390	390.8 [23.85]	2 Bolt - A	BSP
016-0258-002	MCH200AA02AA110020A000B00B	200	195.0 [11.90]	2 Bolt - A	BSP
016-0257-002	MCH160AA02AA110020A000B00B	160	158.0 [9.64]	2 Bolt - A	BSP
016-0256-002	MCH100AA02AA110020A000B00B	100	97.9 [5.97]	2 Bolt - A	BSP
016-0255-002	MCH080AA02AA110020A000B00B	80	78.7 [4.80]	2 Bolt - A	BSP
016-0253-002	MCH053AA02AA110020A000B00B	55	53.0 [3.23]	2 Bolt - A	BSP
016-0252-002	MCH080AC05AE010000A000C00B	80	78.7 [4.80]	2 Bolt - A	UN / UNF
016-0246-002	MCH390AD05AE010000A000C00B	390	390.8 [23.85]	4 Bolt - Square	UN / UNF
016-0242-002	MCH200AD03AA110000A000B00B	200	195.0 [11.90]	4 Bolt - Square	BSP
016-0239-002	MCH100AD03AA110000A000B00B	100	97.9 [5.97]	4 Bolt - Square	BSP
016-0238-002	MCH080AD03AA110000A000B00B	80	78.7 [4.80]	4 Bolt - Square	BSP
016-0236-002	MCH053AD03AA110000A000B00B	55	53.0 [3.23]	4 Bolt - Square	BSP
016-0235-002	MCH160AA02AA110000A000C00B	160	158.0 [9.64]	2 Bolt - A	BSP
016-0231-002	MCH080AD05AE010000A000C00B	80	78.7 [4.80]	4 Bolt - Square	UN / UNF
016-0230-002	MCH053AD05AE010000A000C00B	55	53.0 [3.23]	4 Bolt - Square	UN / UNF
016-0229-002	MCH390AD05AB010000A000C00B	390	390.8 [23.85]	4 Bolt - Square	NPT / NPTF
016-0227-002	MCH245AD05AB010000A000C00B	240	240.0 [14.64]	4 Bolt - Square	NPT / NPTF
016-0226-002	MCH200AD05AB010000A000C00B	200	195.0 [11.90]	4 Bolt - Square	NPT / NPTF
016-0225-002	MCH160AD05AB010000A000C00B	160	158.0 [9.64]	4 Bolt - Square	NPT / NPTF
016-0208-002	MCH245AD05AE010000A000C00B	240	240.0 [14.64]	4 Bolt - Square	UN / UNF
016-0207-002	MCH200AD05AE010000A000C00B	200	195.0 [11.90]	4 Bolt - Square	UN / UNF
016-0206-002	MCH160AD05AE010000A000C00B	160	158.0 [9.64]	4 Bolt - Square	UN / UNF
016-0205-002	MCH100AD05AE010000A000C00B	100	97.9 [5.97]	4 Bolt - Square	UN / UNF

Common to all listed parts

Motor Series	XLH Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Shaft type	Straight
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
