Danfoss orbital motor quick selector Parts

Danfoss

016-0204-002

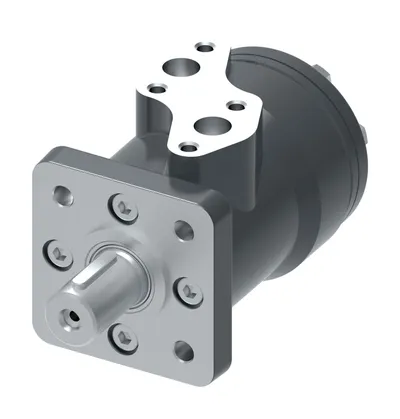

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AD05AB010000A000C00B

Danfoss

016-0202-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AA01AA110020A000C04B

Danfoss

016-0201-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AA01AA110020A000C04B

Danfoss

016-0200-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA01AA110020A000C04B

Danfoss

016-0199-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA01AA110020A000C04B

Danfoss

016-0198-002

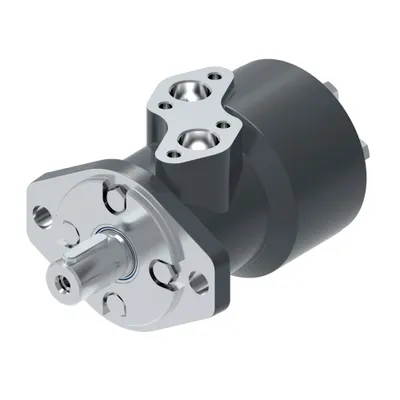

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA01AA110020A000C04B

Danfoss

016-0196-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA01AA110020A000C04B

Danfoss

016-0195-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA01AA110020A000C04B

Danfoss

016-0194-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA01AA110020A000C04B

Danfoss

016-0192-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA02AA010020A000B00B

Danfoss

016-0190-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AA01AA110020A000D00B

Danfoss

016-0189-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AA03AA010000A000B02B

Danfoss

016-0187-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AC03AA110000A000B00B

Danfoss

016-0145-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AC02AA010000A000B02B

Danfoss

016-0142-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AA03AA010000A000B02B

Danfoss

016-0141-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA03AA010000A000B02B

Danfoss

016-0133-002

MOTOR-ORBITAL,XLH SERIES 485 [30.0], MCH485AA01AA110000A000C00B

Danfoss

016-0132-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AA01AA110000A000C00B

Danfoss

016-0131-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AA01AA110000A000C00B

Danfoss

016-0130-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA01AA110000A000C00B

Danfoss

016-0129-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA01AA110000A000C00B

Danfoss

016-0128-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AA01AA110000A000C00B

Danfoss

016-0127-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA01AA110000A000C00B

Danfoss

016-0126-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA01AA110000A000C00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Paint information
016-0204-002	MCH053AD05AB010000A000C00B	55	53.0 [3.23]	4 Bolt - Square	Painted, Black
016-0202-002	MCH390AA01AA110020A000C04B	390	390.8 [23.85]	2 Bolt - A	Painted, Black
016-0201-002	MCH315AA01AA110020A000C04B	315	317.0 [19.34]	2 Bolt - A	Painted, Black
016-0200-002	MCH245AA01AA110020A000C04B	240	240.0 [14.64]	2 Bolt - A	Painted, Black
016-0199-002	MCH200AA01AA110020A000C04B	200	195.0 [11.90]	2 Bolt - A	Painted, Black
016-0198-002	MCH160AA01AA110020A000C04B	160	158.0 [9.64]	2 Bolt - A	Painted, Black
016-0196-002	MCH100AA01AA110020A000C04B	100	97.9 [5.97]	2 Bolt - A	Painted, Black
016-0195-002	MCH080AA01AA110020A000C04B	80	78.7 [4.80]	2 Bolt - A	Painted, Black
016-0194-002	MCH053AA01AA110020A000C04B	55	53.0 [3.23]	2 Bolt - A	Painted, Black
016-0192-002	MCH160AA02AA010020A000B00B	160	158.0 [9.64]	2 Bolt - A	Painted, Blue
016-0190-002	MCH125AA01AA110020A000D00B	120	121.0 [7.38]	2 Bolt - A	Painted, Black - Spec. Component
016-0189-002	MCH315AA03AA010000A000B02B	315	317.0 [19.34]	2 Bolt - A	Painted, Blue
016-0187-002	MCH080AC03AA110000A000B00B	80	78.7 [4.80]	2 Bolt - A	Painted, Blue
016-0145-002	MCH100AC02AA010000A000B02B	100	97.9 [5.97]	2 Bolt - A	Painted, Blue
016-0142-002	MCH390AA03AA010000A000B02B	390	390.8 [23.85]	2 Bolt - A	Painted, Blue
016-0141-002	MCH160AA03AA010000A000B02B	160	158.0 [9.64]	2 Bolt - A	Painted, Blue
016-0133-002	MCH485AA01AA110000A000C00B	485	482.5 [29.44]	2 Bolt - A	Painted, Black
016-0132-002	MCH390AA01AA110000A000C00B	390	390.8 [23.85]	2 Bolt - A	Painted, Black
016-0131-002	MCH315AA01AA110000A000C00B	315	317.0 [19.34]	2 Bolt - A	Painted, Black
016-0130-002	MCH200AA01AA110000A000C00B	200	195.0 [11.90]	2 Bolt - A	Painted, Black
016-0129-002	MCH160AA01AA110000A000C00B	160	158.0 [9.64]	2 Bolt - A	Painted, Black
016-0128-002	MCH125AA01AA110000A000C00B	120	121.0 [7.38]	2 Bolt - A	Painted, Black
016-0127-002	MCH100AA01AA110000A000C00B	100	97.9 [5.97]	2 Bolt - A	Painted, Black
016-0126-002	MCH080AA01AA110000A000C00B	80	78.7 [4.80]	2 Bolt - A	Painted, Black

Common to all listed parts

Motor Series	XLH Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Shaft type	Straight
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
