Danfoss orbital motor quick selector Parts

Danfoss

016-0459-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA03AE110020A000B00B

Danfoss

016-0458-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA03AE110020A000B00B

Danfoss

016-0457-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA03AE110020A000B00B

Danfoss

016-0456-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AA03AE110020A000B00B

Danfoss

016-0455-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA03AE110020A000B00B

Danfoss

016-0454-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA03AE110020A000B00B

Danfoss

016-0453-002

MOTOR-ORBITAL,XLH SERIES 63 [3.8], MCH063AA03AE110020A000B00B

Danfoss

016-0452-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA03AE110020A000B00B

Danfoss

016-0451-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AA03AA110020A000B00B

Danfoss

016-0450-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA03AA110020A000B00B

Danfoss

016-0449-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA03AA110020A000B00B

Danfoss

016-0448-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA03AA110020A000B00B

Danfoss

016-0447-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA03AA110020A000B00B

Danfoss

016-0446-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA03AA110020A000B00B

Danfoss

016-0445-002

MOTOR-ORBITAL,XLH SERIES 63 [3.8], MCH063AA03AA110020A000B00B

Danfoss

016-0444-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA03AA110020A000B00B

Danfoss

016-0443-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AD08AB010000A000C00B

Danfoss

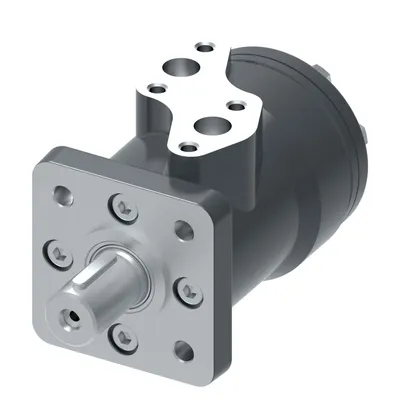

016-0442-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AD04AB010000A000C00B

Danfoss

016-0441-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AD05AB010000A000C00B

Danfoss

016-0440-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AJ02AA110030A000G00B

Danfoss

016-0439-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AE04AA110020A000C00B

Danfoss

016-0436-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AC05AE010000A000C05B

Danfoss

016-0429-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AD03AE310020A000B00B

Danfoss

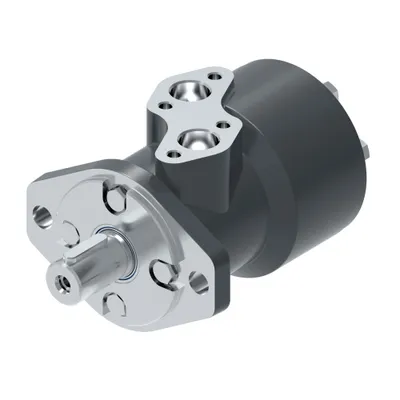

016-0415-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AJ02AA111030A000G00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port thread type
016-0459-002	MCH245AA03AE110020A000B00B	240	240.0 [14.64]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0458-002	MCH200AA03AE110020A000B00B	200	195.0 [11.90]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0457-002	MCH160AA03AE110020A000B00B	160	158.0 [9.64]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0456-002	MCH125AA03AE110020A000B00B	120	121.0 [7.38]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0455-002	MCH100AA03AE110020A000B00B	100	97.9 [5.97]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0454-002	MCH080AA03AE110020A000B00B	80	78.7 [4.80]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0453-002	MCH063AA03AE110020A000B00B	65	63.6 [3.88]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0452-002	MCH053AA03AE110020A000B00B	55	53.0 [3.23]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0451-002	MCH315AA03AA110020A000B00B	315	317.0 [19.34]	Square key, 1/4 x 1 1/4 inch	BSP
016-0450-002	MCH245AA03AA110020A000B00B	240	240.0 [14.64]	Square key, 1/4 x 1 1/4 inch	BSP
016-0449-002	MCH200AA03AA110020A000B00B	200	195.0 [11.90]	Square key, 1/4 x 1 1/4 inch	BSP
016-0448-002	MCH160AA03AA110020A000B00B	160	158.0 [9.64]	Square key, 1/4 x 1 1/4 inch	BSP
016-0447-002	MCH100AA03AA110020A000B00B	100	97.9 [5.97]	Square key, 1/4 x 1 1/4 inch	BSP
016-0446-002	MCH080AA03AA110020A000B00B	80	78.7 [4.80]	Square key, 1/4 x 1 1/4 inch	BSP
016-0445-002	MCH063AA03AA110020A000B00B	65	63.6 [3.88]	Square key, 1/4 x 1 1/4 inch	BSP
016-0444-002	MCH053AA03AA110020A000B00B	55	53.0 [3.23]	Square key, 1/4 x 1 1/4 inch	BSP
016-0443-002	MCH053AD08AB010000A000C00B	55	53.0 [3.23]	n/a	NPT / NPTF
016-0442-002	MCH053AD04AB010000A000C00B	55	53.0 [3.23]	n/a	NPT / NPTF
016-0441-002	MCH100AD05AB010000A000C00B	100	97.9 [5.97]	Square key, 1/4 x 1 1/4 inch	NPT / NPTF
016-0440-002	MCH245AJ02AA110030A000G00B	240	240.0 [14.64]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0439-002	MCH200AE04AA110020A000C00B	200	195.0 [11.90]	n/a	BSP
016-0436-002	MCH053AC05AE010000A000C05B	55	53.0 [3.23]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0429-002	MCH100AD03AE310020A000B00B	100	97.9 [5.97]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0415-002	MCH245AJ02AA111030A000G00B	240	240.0 [14.64]	Rectangular key, A8 x 7 x 32 mm	BSP

Common to all listed parts

Motor Series	XLH Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	Yes
