Danfoss orbital motor quick selector Parts

Danfoss

104-1263-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AF08AA0100010000000AAAAF

Danfoss

104-1261-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AH04AA0100010000000AAAAF

Danfoss

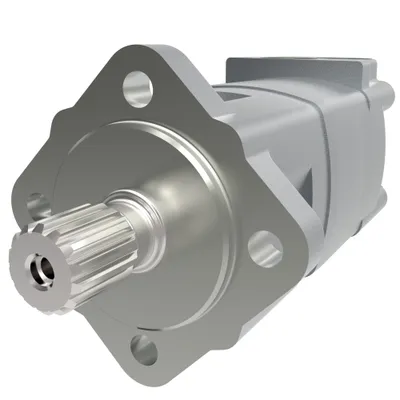

104-1260-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH04AA0100010000000AAAAF

Danfoss

104-1259-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AH04AA0100010000000AAAAF

Danfoss

104-1258-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH04AA0100010000000AAAAF

Danfoss

104-1257-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AH04AA0100010000000AAAAF

Danfoss

104-1256-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AH04AA0100010000000AAAAF

Danfoss

104-1255-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AH04AA0100010000000AAAAF

Danfoss

104-1254-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AH04AA0100010000000AAAAF

Danfoss

104-1253-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AH02AA0100010000000AAAAF

Danfoss

104-1252-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH02AA0100010000000AAAAF

Danfoss

104-1250-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH02AA0100010000000AAAAF

Danfoss

104-1249-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AH02AA0100010000000AAAAF

Danfoss

104-1248-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AH02AA0100010000000AAAAF

Danfoss

104-1247-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AH02AA0100010000000AAAAF

Danfoss

104-1246-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AH02AA0100010000000AAAAF

Danfoss

104-1229-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC04AA0100010000000AAAAF

Danfoss

104-1228-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC02AA0100010000000AAAAF

Danfoss

104-1227-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC05AA0100010000000AAAAF

Danfoss

104-1226-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC03AA0100010000000AAAAF

Danfoss

104-1224-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AF07AF0100010000000AAAAF

Danfoss

104-1221-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF07AF0100010000000AAAAF

Danfoss

104-1220-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF07AA0100010000000AAAAF

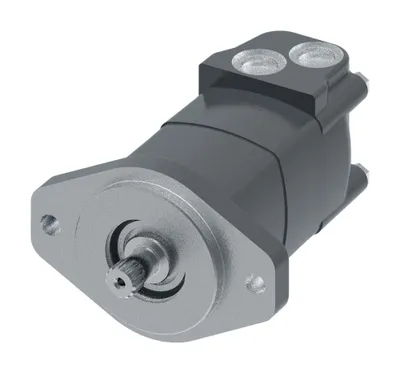

Danfoss

104-1219-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AF07AA0100010000000AAAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft type

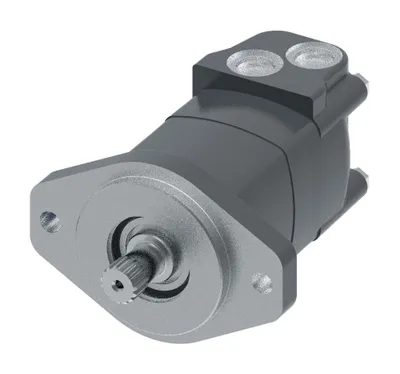

104-1263-006	M02062AF08AA0100010000000AAAAF	100	101.6 [6.20]	2 Bolt - B	Splined

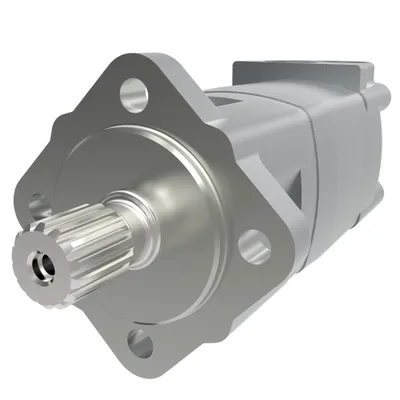

104-1261-006	M02240AH04AA0100010000000AAAAF	395	393.8 [24.03]	4 Bolt - Square	Splined
104-1260-006	M02187AH04AA0100010000000AAAAF	305	306.6 [18.71]	4 Bolt - Square	Splined

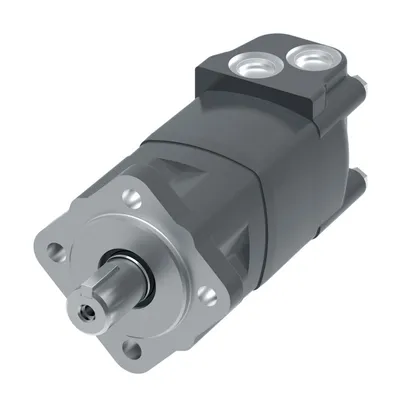

104-1259-006	M02149AH04AA0100010000000AAAAF	245	244.3 [14.91]	4 Bolt - Square	Splined
104-1258-006	M02119AH04AA0100010000000AAAAF	195	194.8 [11.89]	4 Bolt - Square	Splined
104-1257-006	M02096AH04AA0100010000000AAAAF	160	158.1 [9.65]	4 Bolt - Square	Splined
104-1256-006	M02080AH04AA0100010000000AAAAF	130	130.6 [7.97]	4 Bolt - Square	Splined
104-1255-006	M02062AH04AA0100010000000AAAAF	100	101.6 [6.20]	4 Bolt - Square	Splined
104-1254-006	M02049AH04AA0100010000000AAAAF	80	80.6 [4.92]	4 Bolt - Square	Splined

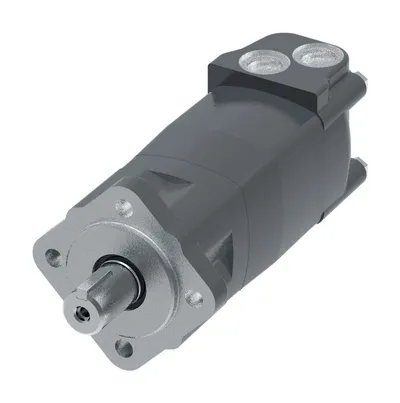

104-1253-006	M02240AH02AA0100010000000AAAAF	395	393.8 [24.03]	4 Bolt - Square	Straight
104-1252-006	M02187AH02AA0100010000000AAAAF	305	306.6 [18.71]	4 Bolt - Square	Straight
104-1250-006	M02119AH02AA0100010000000AAAAF	195	194.8 [11.89]	4 Bolt - Square	Straight
104-1249-006	M02096AH02AA0100010000000AAAAF	160	158.1 [9.65]	4 Bolt - Square	Straight
104-1248-006	M02080AH02AA0100010000000AAAAF	130	130.6 [7.97]	4 Bolt - Square	Straight
104-1247-006	M02062AH02AA0100010000000AAAAF	100	101.6 [6.20]	4 Bolt - Square	Straight
104-1246-006	M02049AH02AA0100010000000AAAAF	80	80.6 [4.92]	4 Bolt - Square	Straight
104-1229-006	M02240AC04AA0100010000000AAAAF	395	393.8 [24.03]	2 Bolt - A	Splined

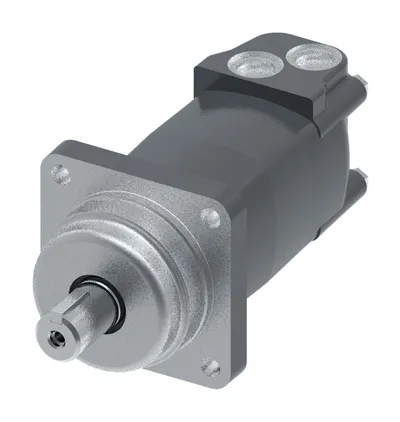

104-1228-006	M02240AC02AA0100010000000AAAAF	395	393.8 [24.03]	2 Bolt - A	Straight
104-1227-006	M02240AC05AA0100010000000AAAAF	395	393.8 [24.03]	2 Bolt - A	Splined

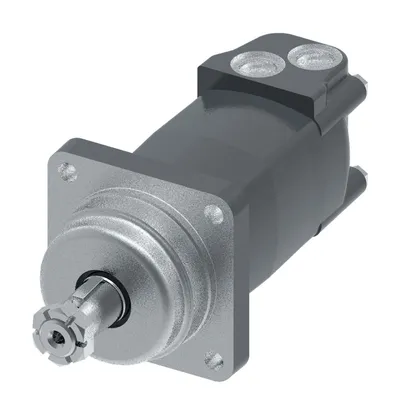

104-1226-006	M02240AC03AA0100010000000AAAAF	395	393.8 [24.03]	2 Bolt - A	TAPERED
104-1224-006	M02096AF07AF0100010000000AAAAF	160	158.1 [9.65]	2 Bolt - B	Splined

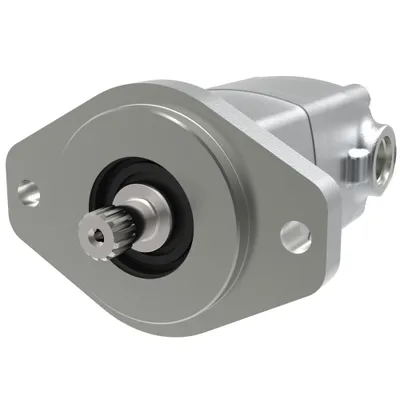

104-1221-006	M02049AF07AF0100010000000AAAAF	80	80.6 [4.92]	2 Bolt - B	Splined

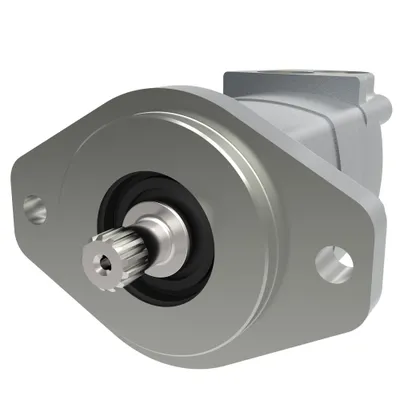

104-1220-006	M02119AF07AA0100010000000AAAAF	195	194.8 [11.89]	2 Bolt - B	Splined
104-1219-006	M02096AF07AA0100010000000AAAAF	160	158.1 [9.65]	2 Bolt - B	Splined

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Main port thread type	UN / UNF
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
