Danfoss orbital motor quick selector Parts

Danfoss

104-1394-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC01AB0100010000000AAAAF

Danfoss

104-1392-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC02AA01000100000AAAAAAF

Danfoss

104-1391-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AH16AG0200010000000ABAAF

Danfoss

104-1390-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH16AG0200010000000ABAAF

Danfoss

104-1389-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AH16AG0200010000000ABAAF

Danfoss

104-1388-006-SH

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH16AG0200010000000ABAAF

Danfoss

104-1388-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH16AG0200010000000ABAAF

Danfoss

104-1387-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AH16AG0200010000000ABAAF

Danfoss

104-1386-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AH16AG0200010000000ABAAF

Danfoss

104-1385-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AH16AG0200010000000ABAAF

Danfoss

104-1384-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AH16AG0200010000000ABAAF

Danfoss

104-1383-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AH04AG0200010000000ABAAF

Danfoss

104-1382-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH04AG0200010000000ABAAF

Danfoss

104-1381-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AH04AG0200010000000ABAAF

Danfoss

104-1380-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH04AG0200010000000ABAAF

Danfoss

104-1379-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AH04AG0200010000000ABAAF

Danfoss

104-1378-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AH04AG0200010000000ABAAF

Danfoss

104-1377-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AH04AG0200010000000ABAAF

Danfoss

104-1376-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AH04AG0200010000000ABAAF

Danfoss

104-1374-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AJ04AA0100010000000AAAAF

Danfoss

104-1346-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AJ02AA0100010000000AAAAF

Danfoss

104-1343-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AJ02AA0100010000000AAAAF

Danfoss

104-1326-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC01AA01000100000AAAAAAF

Danfoss

104-1284-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC05AB0100010000000AAAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key

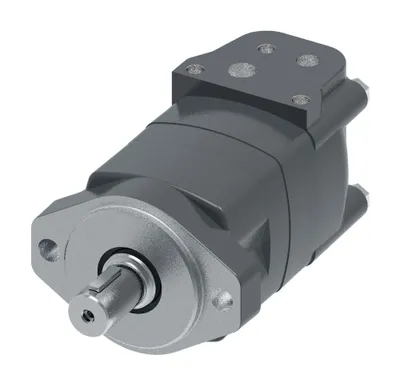

104-1394-006	M02049AC01AB0100010000000AAAAF	80	80.6 [4.92]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1392-006	M02187AC02AA01000100000AAAAAAF	305	306.6 [18.71]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1391-006	M02240AH16AG0200010000000ABAAF	395	393.8 [24.03]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1390-006	M02187AH16AG0200010000000ABAAF	305	306.6 [18.71]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1389-006	M02149AH16AG0200010000000ABAAF	245	244.3 [14.91]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1388-006-SH	M02119AH16AG0200010000000ABAAF	195	194.8 [11.89]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1388-006	M02119AH16AG0200010000000ABAAF	195	194.8 [11.89]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1387-006	M02096AH16AG0200010000000ABAAF	160	158.1 [9.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1386-006	M02080AH16AG0200010000000ABAAF	130	130.6 [7.97]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1385-006	M02062AH16AG0200010000000ABAAF	100	101.6 [6.20]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1384-006	M02049AH16AG0200010000000ABAAF	80	80.6 [4.92]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1383-006	M02240AH04AG0200010000000ABAAF	395	393.8 [24.03]	4 Bolt - Square	n/a
104-1382-006	M02187AH04AG0200010000000ABAAF	305	306.6 [18.71]	4 Bolt - Square	n/a
104-1381-006	M02149AH04AG0200010000000ABAAF	245	244.3 [14.91]	4 Bolt - Square	n/a
104-1380-006	M02119AH04AG0200010000000ABAAF	195	194.8 [11.89]	4 Bolt - Square	n/a
104-1379-006	M02096AH04AG0200010000000ABAAF	160	158.1 [9.65]	4 Bolt - Square	n/a
104-1378-006	M02080AH04AG0200010000000ABAAF	130	130.6 [7.97]	4 Bolt - Square	n/a
104-1377-006	M02062AH04AG0200010000000ABAAF	100	101.6 [6.20]	4 Bolt - Square	n/a
104-1376-006	M02049AH04AG0200010000000ABAAF	80	80.6 [4.92]	4 Bolt - Square	n/a

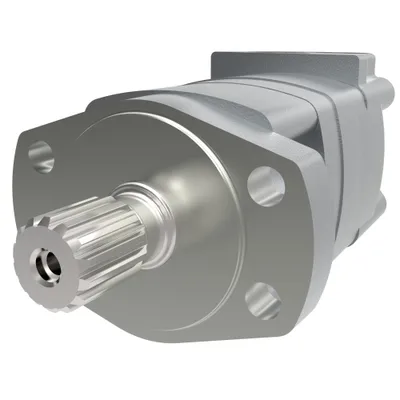

104-1374-006	M02080AJ04AA0100010000000AAAAF	130	130.6 [7.97]	4 Bolt - Magneto	n/a

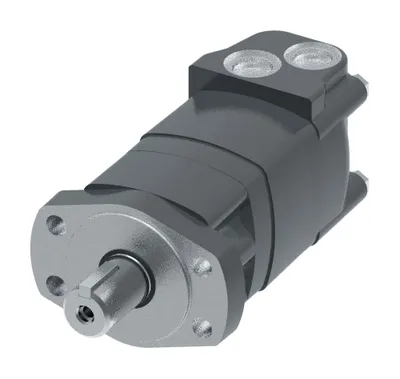

104-1346-006	M02119AJ02AA0100010000000AAAAF	195	194.8 [11.89]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1343-006	M02062AJ02AA0100010000000AAAAF	100	101.6 [6.20]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1326-006	M02049AC01AA01000100000AAAAAAF	80	80.6 [4.92]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1284-006	M02049AC05AB0100010000000AAAAF	80	80.6 [4.92]	2 Bolt - A	n/a

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Dust seal	Standard
