Danfoss orbital motor quick selector Parts

Showing 4,465–4,488 of 11,614 parts

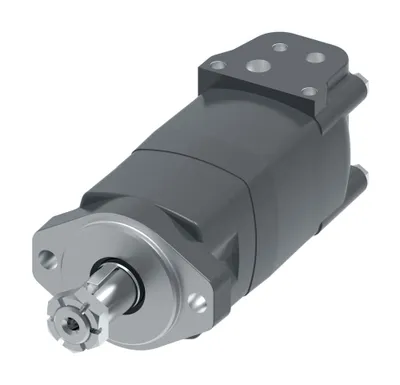

Danfoss 104-1182-006 – MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC03AB0100010000000AAAAF
Danfoss
104-1182-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC03AB0100010000000AAAAF

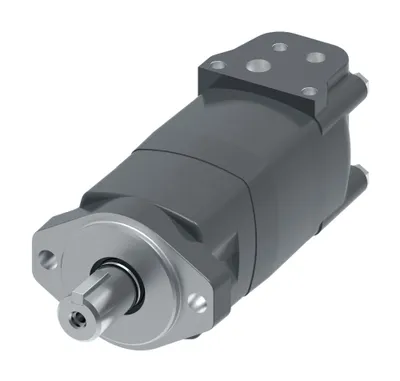

Danfoss 104-1150-006 – MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC02AB0100010000000AAAAF
Danfoss
104-1150-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC02AB0100010000000AAAAF

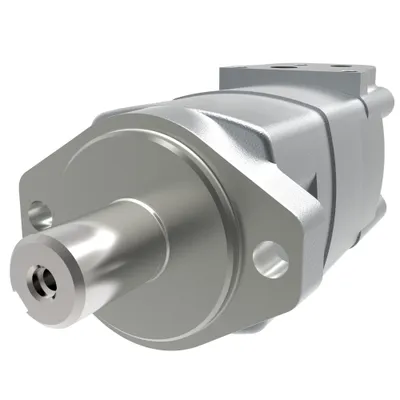

Danfoss 104-1149-006 – MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC02AB0100010000000AAAAF
Danfoss
104-1149-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC02AB0100010000000AAAAF

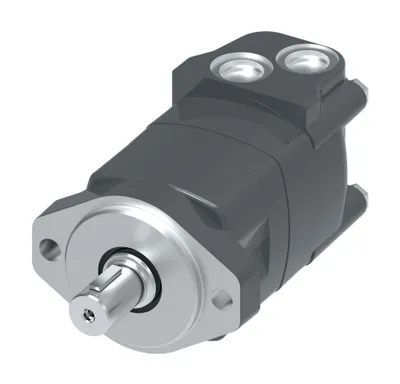

Danfoss 104-1147-006 – MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC02AB0100010000000AAAAF
Danfoss
104-1147-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC02AB0100010000000AAAAF

Danfoss 104-1144-006 – MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC02AB0100010000000AAAAF
Danfoss
104-1144-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC02AB0100010000000AAAAF

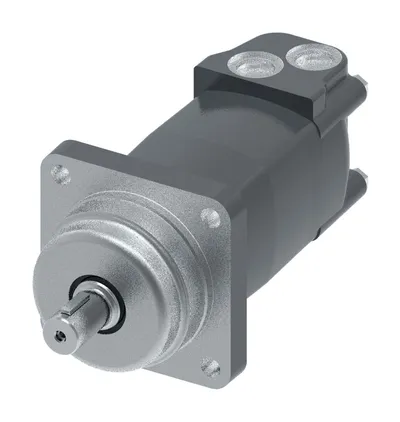

Danfoss 104-1143-006 – MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC01AA0100010000000AAAAF
Danfoss
104-1143-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC01AA0100010000000AAAAF

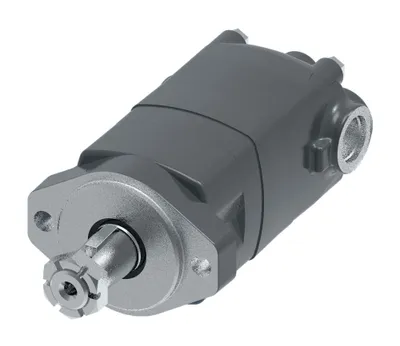

Danfoss 104-1097-006 – MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC03AF0100010000000AAAAF
Danfoss
104-1097-006

MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC03AF0100010000000AAAAF

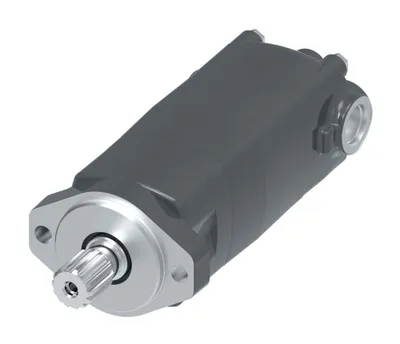

Danfoss 104-1094-006 – MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC04AF0100010000000AAAAF
Danfoss
104-1094-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC04AF0100010000000AAAAF

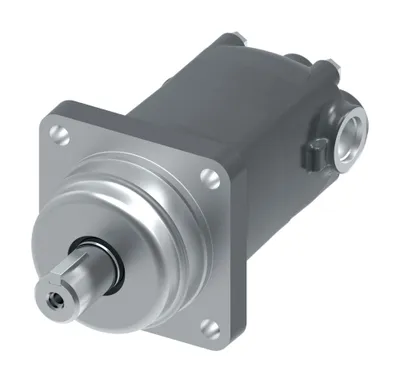

Danfoss 104-1092-006 – MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC04AF0100010000000AAAAF
Danfoss
104-1092-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC04AF0100010000000AAAAF

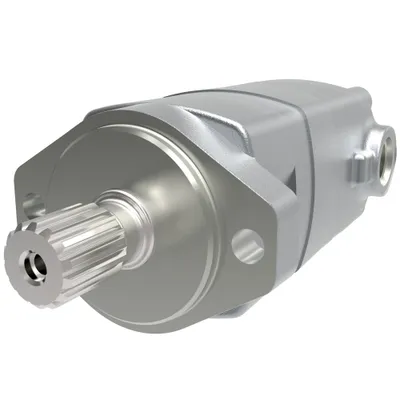

Danfoss 104-1091-006 – MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC04AF0100010000000AAAAF
Danfoss
104-1091-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC04AF0100010000000AAAAF

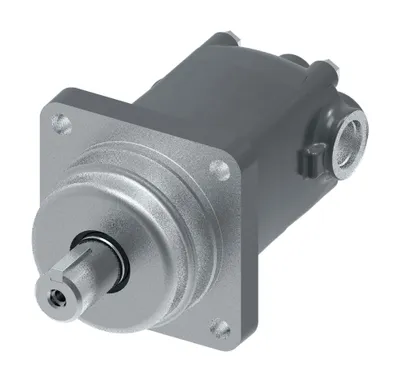

Danfoss 104-1090-006 – MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC04AF0100010000000AAAAF
Danfoss
104-1090-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC04AF0100010000000AAAAF

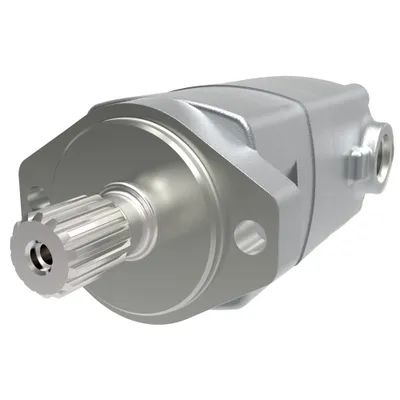

Danfoss 104-1089-006 – MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC04AF0100010000000AAAAF
Danfoss
104-1089-006

MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC04AF0100010000000AAAAF

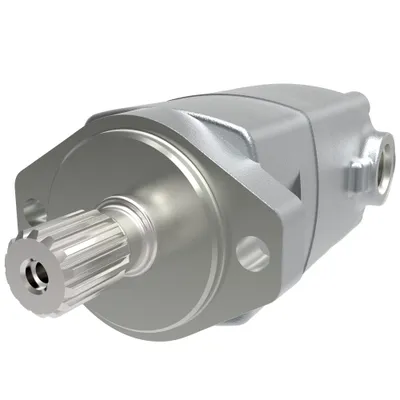

Danfoss 104-1088-006 – MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC04AF0100010000000AAAAF
Danfoss
104-1088-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC04AF0100010000000AAAAF

Danfoss 104-1085-006 – MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC04AB0100010000000AAAAF
Danfoss
104-1085-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC04AB0100010000000AAAAF

Danfoss 104-1082-006 – MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC04AB0100010000000AAAAF
Danfoss
104-1082-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC04AB0100010000000AAAAF

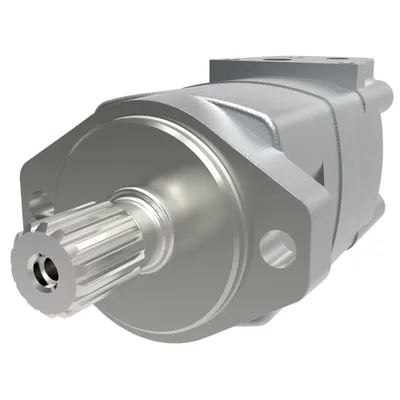

Danfoss 104-1081-006 – MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AC04AB0100010000000AAAAF
Danfoss
104-1081-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AC04AB0100010000000AAAAF

Danfoss 104-1076-006 – MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC06AA0100010000000AAAAF
Danfoss
104-1076-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC06AA0100010000000AAAAF

Danfoss 104-1073-006 – MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC06AA0100010000000AAAAF
Danfoss
104-1073-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC06AA0100010000000AAAAF

Danfoss 104-1068-006 – MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC02AF0100010000000AAAAF
Danfoss
104-1068-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC02AF0100010000000AAAAF

Danfoss 104-1067-006 – MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC02AF0100010000000AAAAF
Danfoss
104-1067-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC02AF0100010000000AAAAF

Danfoss 104-1066-006 – MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC02AF0100010000000AAAAF
Danfoss
104-1066-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC02AF0100010000000AAAAF

Danfoss 104-1065-006 – MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC02AF0100010000000AAAAF
Danfoss
104-1065-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC02AF0100010000000AAAAF

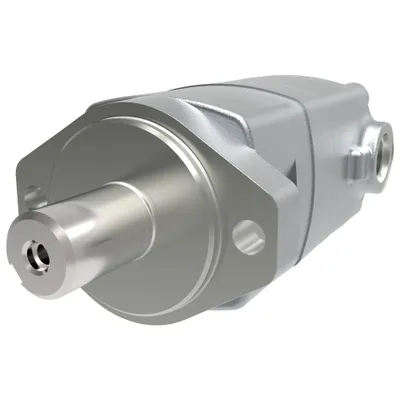

Danfoss 104-1064-006 – MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC02AF0100010000000AAAAF
Danfoss
104-1064-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC02AF0100010000000AAAAF

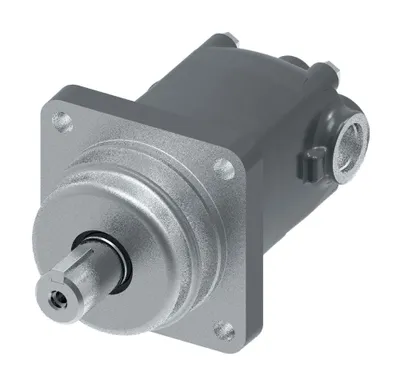

Danfoss 104-1063-006 – MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AC02AF0100010000000AAAAF
Danfoss
104-1063-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AC02AF0100010000000AAAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNModel CodeMotor sizeGeometric displacement [cm3/r [in3/r]]Shaft typeShaft Key
104-1182-006M02187AC03AB0100010000000AAAAF305306.6 [18.71]TAPEREDSquare key, 5/16 x 1 inch
104-1150-006M02187AC02AB0100010000000AAAAF305306.6 [18.71]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1149-006M02149AC02AB0100010000000AAAAF245244.3 [14.91]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1147-006M02096AC02AB0100010000000AAAAF160158.1 [9.65]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1144-006M02049AC02AB0100010000000AAAAF8080.6 [4.92]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1143-006M02240AC01AA0100010000000AAAAF395393.8 [24.03]StraightWoodruff key, 1/4 x 1 inch
104-1097-006M02080AC03AF0100010000000AAAAF130130.6 [7.97]TAPEREDSquare key, 5/16 x 1 inch
104-1094-006M02240AC04AF0100010000000AAAAF395393.8 [24.03]Splinedn/a
104-1092-006M02149AC04AF0100010000000AAAAF245244.3 [14.91]Splinedn/a
104-1091-006M02119AC04AF0100010000000AAAAF195194.8 [11.89]Splinedn/a
104-1090-006M02096AC04AF0100010000000AAAAF160158.1 [9.65]Splinedn/a
104-1089-006M02080AC04AF0100010000000AAAAF130130.6 [7.97]Splinedn/a
104-1088-006M02062AC04AF0100010000000AAAAF100101.6 [6.20]Splinedn/a
104-1085-006M02187AC04AB0100010000000AAAAF305306.6 [18.71]Splinedn/a
104-1082-006M02096AC04AB0100010000000AAAAF160158.1 [9.65]Splinedn/a
104-1081-006M02080AC04AB0100010000000AAAAF130130.6 [7.97]Splinedn/a
104-1076-006M02119AC06AA0100010000000AAAAF195194.8 [11.89]Straightn/a
104-1073-006M02062AC06AA0100010000000AAAAF100101.6 [6.20]Straightn/a
104-1068-006M02240AC02AF0100010000000AAAAF395393.8 [24.03]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1067-006M02187AC02AF0100010000000AAAAF305306.6 [18.71]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1066-006M02149AC02AF0100010000000AAAAF245244.3 [14.91]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1065-006M02119AC02AF0100010000000AAAAF195194.8 [11.89]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1064-006M02096AC02AF0100010000000AAAAF160158.1 [9.65]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1063-006M02080AC02AF0100010000000AAAAF130130.6 [7.97]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch

Common to all listed parts

Motor Series2000 Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor typeStandard
Motor functionStandard
Mounting flange type2 Bolt - A
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A
Drain Port Dimension7/16 - 20 UNF-2B SAE O-Ring port
