Danfoss orbital motor quick selector Parts

Showing 4,441–4,464 of 11,614 parts

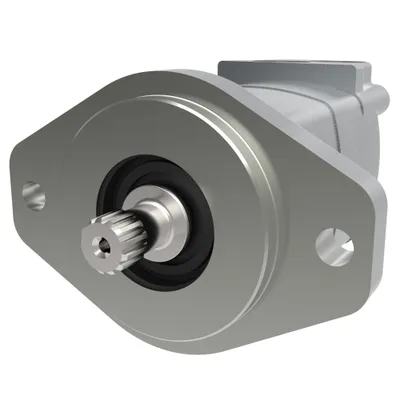

Danfoss 104-1218-006 – MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AF07AA0100010000000AAAAF
Danfoss
104-1218-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AF07AA0100010000000AAAAF

Danfoss 104-1217-006 – MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AF07AA0100010000000AAAAF
Danfoss
104-1217-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AF07AA0100010000000AAAAF

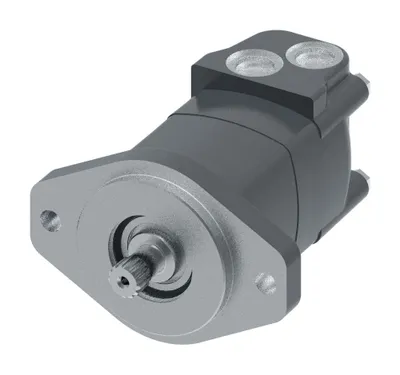

Danfoss 104-1216-006 – MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF07AA0100010000000AAAAF
Danfoss
104-1216-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF07AA0100010000000AAAAF

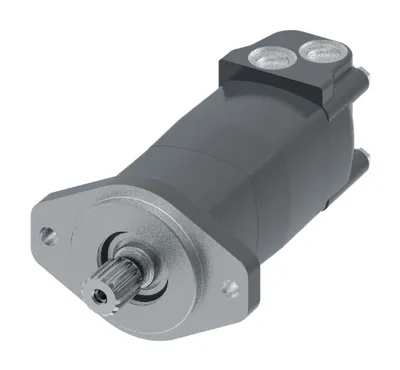

Danfoss 104-1215-006 – MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AF04AA0100010000000AAAAF
Danfoss
104-1215-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AF04AA0100010000000AAAAF

Danfoss 104-1214-006 – MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AF04AA0100010000000AAAAF
Danfoss
104-1214-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AF04AA0100010000000AAAAF

Danfoss 104-1213-006 – MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AF04AA0100010000000AAAAF
Danfoss
104-1213-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AF04AA0100010000000AAAAF

Danfoss 104-1212-006 – MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF04AA0100010000000AAAAF
Danfoss
104-1212-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF04AA0100010000000AAAAF

Danfoss 104-1211-006 – MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AF04AA0100010000000AAAAF
Danfoss
104-1211-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AF04AA0100010000000AAAAF

Danfoss 104-1210-006 – MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AF04AA0100010000000AAAAF
Danfoss
104-1210-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AF04AA0100010000000AAAAF

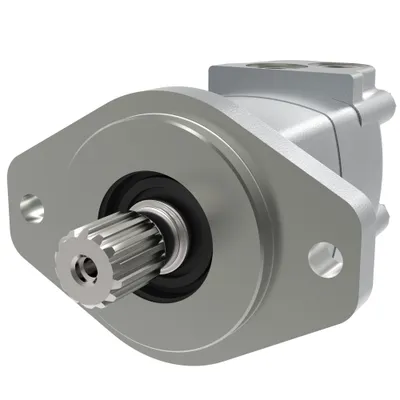

Danfoss 104-1208-006 – MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF04AA0100010000000AAAAF
Danfoss
104-1208-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF04AA0100010000000AAAAF

Danfoss 104-1207-006 – MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AF02AA0100010000000AAAAF
Danfoss
104-1207-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AF02AA0100010000000AAAAF

Danfoss 104-1206-006 – MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AF02AA0100010000000AAAAF
Danfoss
104-1206-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AF02AA0100010000000AAAAF

Danfoss 104-1205-006 – MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AF02AA0100010000000AAAAF
Danfoss
104-1205-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AF02AA0100010000000AAAAF

Danfoss 104-1204-006 – MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF02AA0100010000000AAAAF
Danfoss
104-1204-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF02AA0100010000000AAAAF

Danfoss 104-1202-006 – MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AF02AA0100010000000AAAAF
Danfoss
104-1202-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AF02AA0100010000000AAAAF

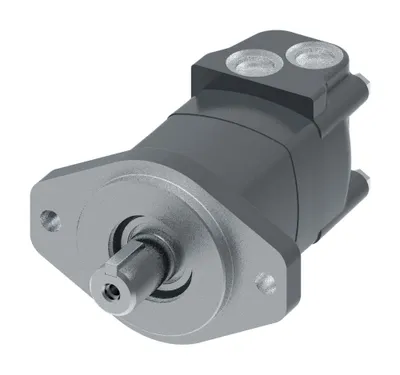

Danfoss 104-1200-006 – MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF02AA0100010000000AAAAF
Danfoss
104-1200-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF02AA0100010000000AAAAF

Danfoss 104-1199-006 – MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AF05AA0100010000000AAAAF
Danfoss
104-1199-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AF05AA0100010000000AAAAF

Danfoss 104-1198-006 – MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AF05AA0100010000000AAAAF
Danfoss
104-1198-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AF05AA0100010000000AAAAF

Danfoss 104-1197-006 – MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF05AA0100010000000AAAAF
Danfoss
104-1197-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF05AA0100010000000AAAAF

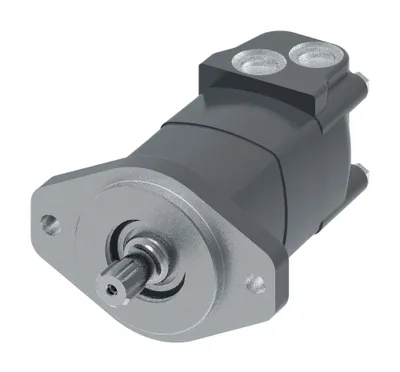

Danfoss 104-1196-006 – MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AF05AA0100010000000AAAAF
Danfoss
104-1196-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AF05AA0100010000000AAAAF

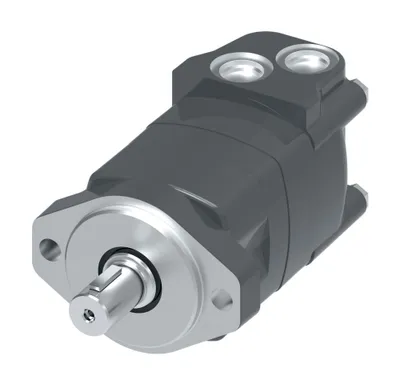

Danfoss 104-1195-006 – MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AF05AA0100010000000AAAAF
Danfoss
104-1195-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AF05AA0100010000000AAAAF

Danfoss 104-1194-006 – MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AF05AA0100010000000AAAAF
Danfoss
104-1194-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AF05AA0100010000000AAAAF

Danfoss 104-1193-006 – MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF05AA0100010000000AAAAF
Danfoss
104-1193-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF05AA0100010000000AAAAF

Danfoss 104-1192-006 – MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF05AF0100010000000AAAAF
Danfoss
104-1192-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF05AF0100010000000AAAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNModel CodeMotor sizeGeometric displacement [cm3/r [in3/r]]Shaft typeShaft Key
104-1218-006M02080AF07AA0100010000000AAAAF130130.6 [7.97]Splinedn/a
104-1217-006M02062AF07AA0100010000000AAAAF100101.6 [6.20]Splinedn/a
104-1216-006M02049AF07AA0100010000000AAAAF8080.6 [4.92]Splinedn/a
104-1215-006M02240AF04AA0100010000000AAAAF395393.8 [24.03]Splinedn/a
104-1214-006M02187AF04AA0100010000000AAAAF305306.6 [18.71]Splinedn/a
104-1213-006M02149AF04AA0100010000000AAAAF245244.3 [14.91]Splinedn/a
104-1212-006M02119AF04AA0100010000000AAAAF195194.8 [11.89]Splinedn/a
104-1211-006M02096AF04AA0100010000000AAAAF160158.1 [9.65]Splinedn/a
104-1210-006M02080AF04AA0100010000000AAAAF130130.6 [7.97]Splinedn/a
104-1208-006M02049AF04AA0100010000000AAAAF8080.6 [4.92]Splinedn/a
104-1207-006M02240AF02AA0100010000000AAAAF395393.8 [24.03]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1206-006M02187AF02AA0100010000000AAAAF305306.6 [18.71]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1205-006M02149AF02AA0100010000000AAAAF245244.3 [14.91]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1204-006M02119AF02AA0100010000000AAAAF195194.8 [11.89]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1202-006M02080AF02AA0100010000000AAAAF130130.6 [7.97]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1200-006M02049AF02AA0100010000000AAAAF8080.6 [4.92]StraightSquare key, 5/16 x 5/16 x 1 1/4 inch
104-1199-006M02187AF05AA0100010000000AAAAF305306.6 [18.71]Splinedn/a
104-1198-006M02149AF05AA0100010000000AAAAF245244.3 [14.91]Splinedn/a
104-1197-006M02119AF05AA0100010000000AAAAF195194.8 [11.89]Splinedn/a
104-1196-006M02096AF05AA0100010000000AAAAF160158.1 [9.65]Splinedn/a
104-1195-006M02080AF05AA0100010000000AAAAF130130.6 [7.97]Splinedn/a
104-1194-006M02062AF05AA0100010000000AAAAF100101.6 [6.20]Splinedn/a
104-1193-006M02049AF05AA0100010000000AAAAF8080.6 [4.92]Splinedn/a
104-1192-006M02119AF05AF0100010000000AAAAF195194.8 [11.89]Splinedn/a

Common to all listed parts

Motor Series2000 Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor typeStandard
Motor functionStandard
Mounting flange type2 Bolt - B
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]101.6 x 9.4, 146.0, 14.4 [4.00 x 0.37, 5.75, 0.57] SAE B
Main port thread typeUN / UNF
