Danfoss orbital motor quick selector Parts

Danfoss

104-1447-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH03AG0200010000000ABAAF

Danfoss

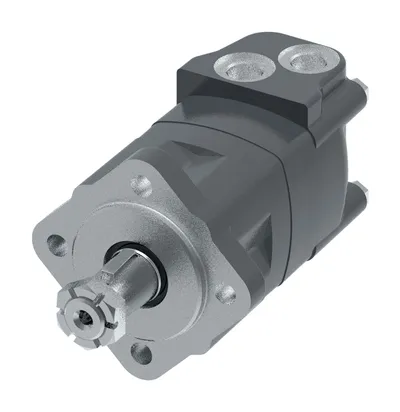

104-1446-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AH03AG0200010000000ABAAF

Danfoss

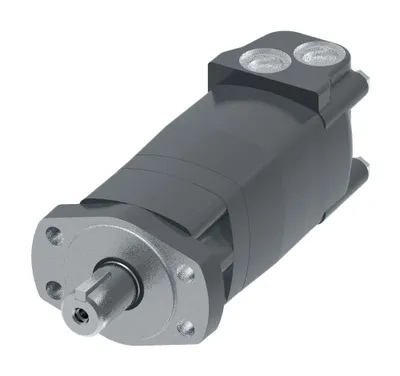

104-1445-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AJ02AA0100010000000AAAAF

Danfoss

104-1444-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AC02AA01000100000AAAAAAF

Danfoss

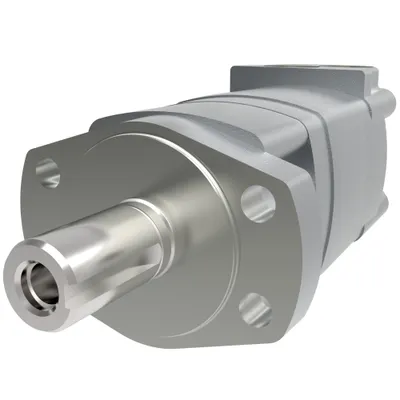

104-1440-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AJ14AA0100010000000AAAAF

Danfoss

104-1438-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AJ14AA0100010000000AAAAF

Danfoss

104-1436-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AF01AA0100010000000AAAAF

Danfoss

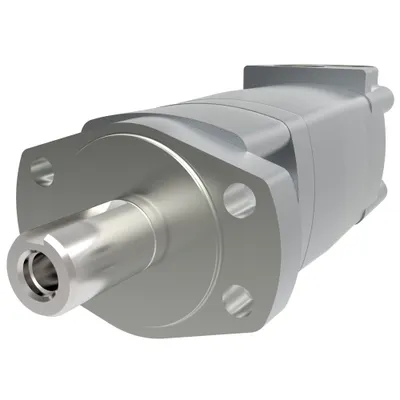

104-1434-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AJ14AA0100010000000AAAAF

Danfoss

104-1432-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC05AA0100010000000AAAAF

Danfoss

104-1431-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC04AB0100010000000AAAAF

Danfoss

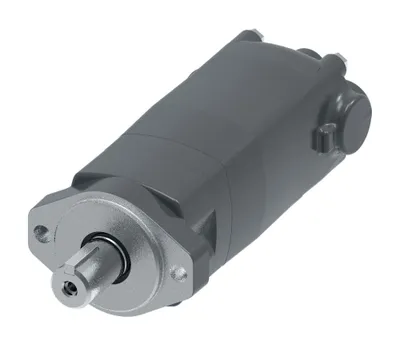

104-1429-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AC02AD0100010000000AAAAF

Danfoss

104-1428-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC07AG0200010000000ABAAF

Danfoss

104-1427-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AF07AG0200010000000ABAAF

Danfoss

104-1425-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AJ01AG0200010000000ABAAF

Danfoss

104-1422-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC04AA0100010000000AAAAF

Danfoss

104-1421-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC02AF0100010000000AAAAF

Danfoss

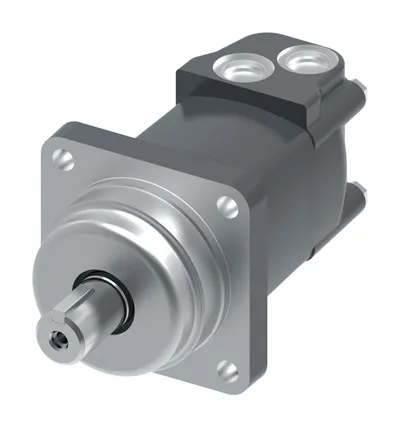

104-1420-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC02AA0100010000000AAAAF

Danfoss

104-1415-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AJ04AA0100010000000AAAAF

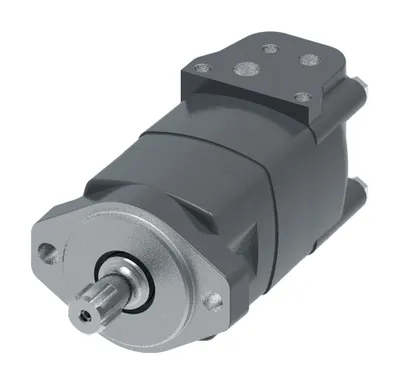

Danfoss

104-1413-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC05AB0100010000000AAAAF

Danfoss

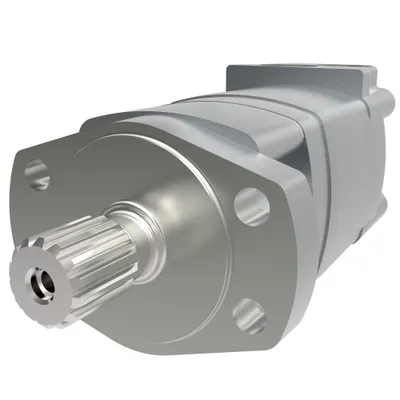

104-1406-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AJ04AA0100010000000AAAAF

Danfoss

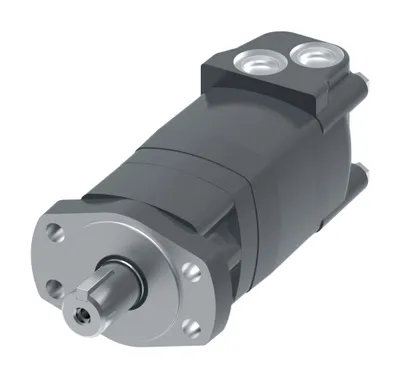

104-1401-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AJ02AA0100010000000AAAAF

Danfoss

104-1398-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC02AB01000100000AAAEAAF

Danfoss

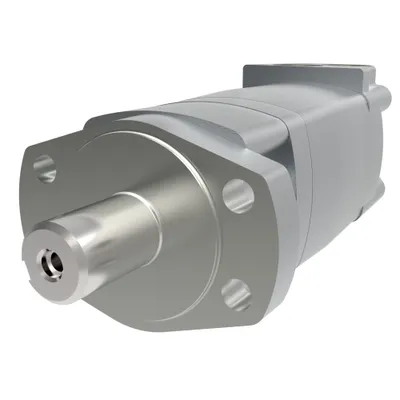

104-1397-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AJ02AA0100010000000AAAAF

Danfoss

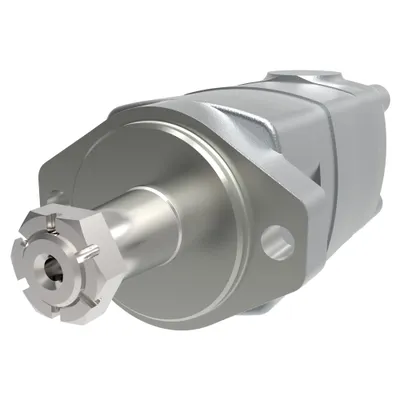

104-1396-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC03AD01000100000AAAAAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
104-1447-006	M02119AH03AG0200010000000ABAAF	195	194.8 [11.89]	4 Bolt - Square	Square key, 5/16 x 1 inch
104-1446-006	M02049AH03AG0200010000000ABAAF	80	80.6 [4.92]	4 Bolt - Square	Square key, 5/16 x 1 inch
104-1445-006	M02240AJ02AA0100010000000AAAAF	395	393.8 [24.03]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1444-006	M02080AC02AA01000100000AAAAAAF	130	130.6 [7.97]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1440-006	M02187AJ14AA0100010000000AAAAF	305	306.6 [18.71]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1438-006	M02119AJ14AA0100010000000AAAAF	195	194.8 [11.89]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1436-006	M02062AF01AA0100010000000AAAAF	100	101.6 [6.20]	2 Bolt - B	Woodruff key, 1/4 x 1 inch
104-1434-006	M02298AJ14AA0100010000000AAAAF	490	489.0 [29.84]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1432-006	M02298AC05AA0100010000000AAAAF	490	489.0 [29.84]	2 Bolt - A	n/a
104-1431-006	M02240AC04AB0100010000000AAAAF	395	393.8 [24.03]	2 Bolt - A	n/a
104-1429-006	M02240AC02AD0100010000000AAAAF	395	393.8 [24.03]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1428-006	M02049AC07AG0200010000000ABAAF	80	80.6 [4.92]	2 Bolt - A	n/a
104-1427-006	M02119AF07AG0200010000000ABAAF	195	194.8 [11.89]	2 Bolt - B	n/a
104-1425-006	M02240AJ01AG0200010000000ABAAF	395	393.8 [24.03]	4 Bolt - Magneto	Woodruff key, 1/4 x 1 inch
104-1422-006	M02298AC04AA0100010000000AAAAF	490	489.0 [29.84]	2 Bolt - A	n/a
104-1421-006	M02298AC02AF0100010000000AAAAF	490	489.0 [29.84]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1420-006	M02298AC02AA0100010000000AAAAF	490	489.0 [29.84]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1415-006	M02119AJ04AA0100010000000AAAAF	195	194.8 [11.89]	4 Bolt - Magneto	n/a
104-1413-006	M02096AC05AB0100010000000AAAAF	160	158.1 [9.65]	2 Bolt - A	n/a
104-1406-006	M02187AJ04AA0100010000000AAAAF	305	306.6 [18.71]	4 Bolt - Magneto	n/a
104-1401-006	M02187AJ02AA0100010000000AAAAF	305	306.6 [18.71]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1398-006	M02119AC02AB01000100000AAAEAAF	195	194.8 [11.89]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1397-006	M02298AJ02AA0100010000000AAAAF	490	489.0 [29.84]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1396-006	M02119AC03AD01000100000AAAAAAF	195	194.8 [11.89]	2 Bolt - A	Square key, 5/16 x 1 inch

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Dust seal	Standard
Shaft Seal	NBR - Standard
