Danfoss orbital motor quick selector Parts

Danfoss

104-1509-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC17AA0100010000000ACAAF

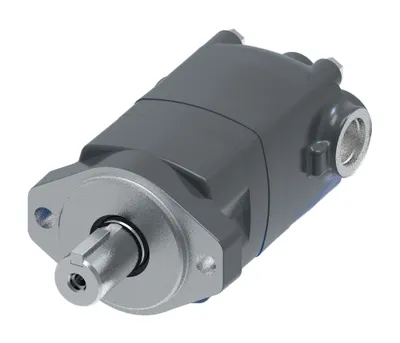

Danfoss

104-1507-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC17AF0100010000000AAAAF

Danfoss

104-1504-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC17AA0100010000000AAAAF

Danfoss

104-1503-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC19AG0200010000000ABAAF

Danfoss

104-1499-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AJ02AG0200010000000ABAAF

Danfoss

104-1498-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC16AG0200010000000ABAAF

Danfoss

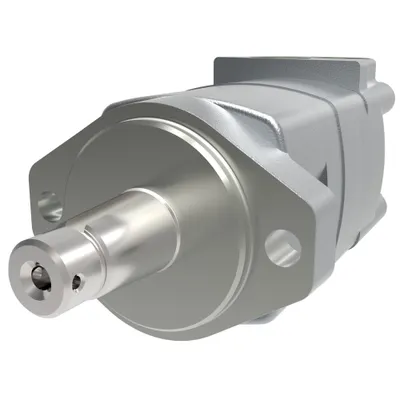

104-1496-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AC18AA0100010000000AAAAF

Danfoss

104-1494-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AH02AA0100010000000AAAAF

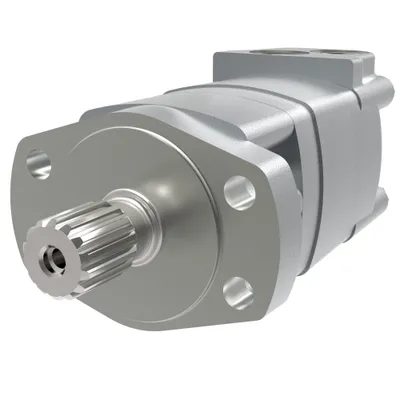

Danfoss

104-1491-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AJ04AA0100010000000AAAAF

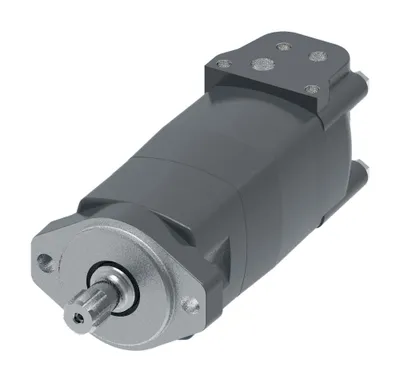

Danfoss

104-1487-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AC05AB0100010000000AAAAF

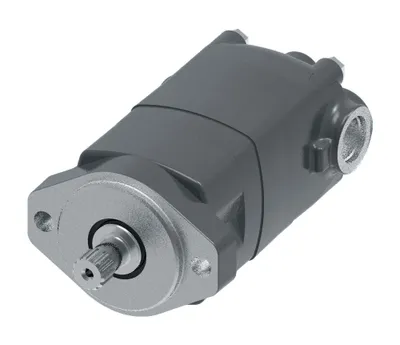

Danfoss

104-1484-006

MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC07AF0100010000000AAAAF

Danfoss

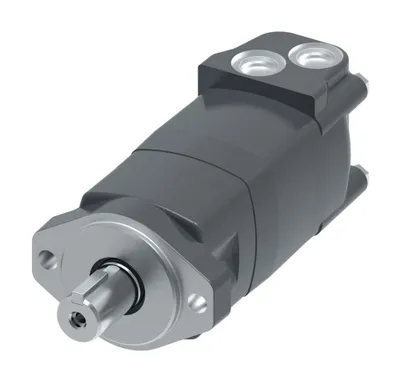

104-1479-006

MOTOR 2K EPOXY FR GRAY, M02187AC17AA0100010000000ACAAF

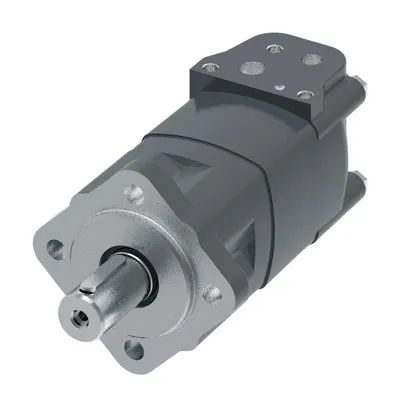

Danfoss

104-1474-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH16AE0200010000000ABAAF

Danfoss

104-1473-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AH16AE0200010000000ABAAF

Danfoss

104-1471-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AH16AE0200010000000ABAAF

Danfoss

104-1470-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AH16AE0200010000000ABAAF

Danfoss

104-1467-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH04AE0200010000000ABAAF

Danfoss

104-1462-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AH04AE0200010000000ABAAF

Danfoss

104-1461-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AH04AE0200010000000ABAAF

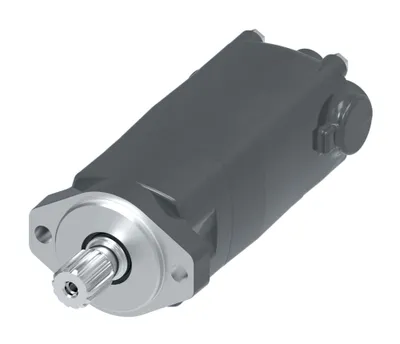

Danfoss

104-1454-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AC04AD0100010000000AAAAF

Danfoss

104-1452-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC17AA0100010000000ACAAF

Danfoss

104-1451-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AJ05AA0100010000000AAAAF

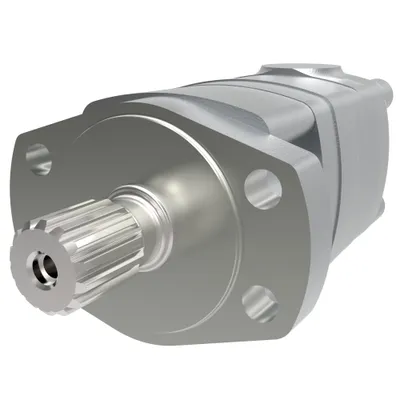

Danfoss

104-1450-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AJ04AD0100010000000AAAAF

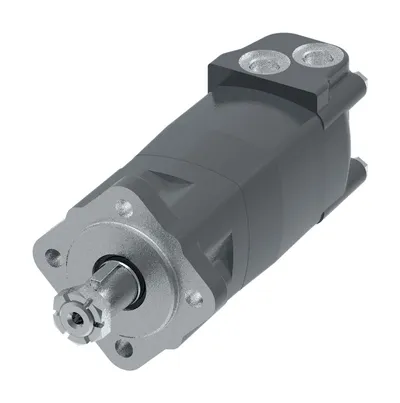

Danfoss

104-1448-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AH03AG0200010000000ABAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
104-1509-006	M02240AC17AA0100010000000ACAAF	395	393.8 [24.03]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1507-006	M02049AC17AF0100010000000AAAAF	80	80.6 [4.92]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1504-006	M02240AC17AA0100010000000AAAAF	395	393.8 [24.03]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1503-006	M02049AC19AG0200010000000ABAAF	80	80.6 [4.92]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm
104-1499-006	M02298AJ02AG0200010000000ABAAF	490	489.0 [29.84]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1498-006	M02049AC16AG0200010000000ABAAF	80	80.6 [4.92]	2 Bolt - A	Rectangular key, 10 x 8 x 45 mm
104-1496-006	M02080AC18AA0100010000000AAAAF	130	130.6 [7.97]	2 Bolt - A	Square key, 5/16 x 1 inch
104-1494-006	M02298AH02AA0100010000000AAAAF	490	489.0 [29.84]	4 Bolt - Square	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1491-006	M02149AJ04AA0100010000000AAAAF	245	244.3 [14.91]	4 Bolt - Magneto	n/a
104-1487-006	M02240AC05AB0100010000000AAAAF	395	393.8 [24.03]	2 Bolt - A	n/a
104-1484-006	M02080AC07AF0100010000000AAAAF	130	130.6 [7.97]	2 Bolt - A	n/a
104-1479-006	M02187AC17AA0100010000000ACAAF	305	306.6 [18.71]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1474-006	M02119AH16AE0200010000000ABAAF	195	194.8 [11.89]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1473-006	M02096AH16AE0200010000000ABAAF	160	158.1 [9.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1471-006	M02062AH16AE0200010000000ABAAF	100	101.6 [6.20]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1470-006	M02049AH16AE0200010000000ABAAF	80	80.6 [4.92]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1467-006	M02187AH04AE0200010000000ABAAF	305	306.6 [18.71]	4 Bolt - Square	n/a
104-1462-006	M02062AH04AE0200010000000ABAAF	100	101.6 [6.20]	4 Bolt - Square	n/a
104-1461-006	M02049AH04AE0200010000000ABAAF	80	80.6 [4.92]	4 Bolt - Square	n/a
104-1454-006	M02240AC04AD0100010000000AAAAF	395	393.8 [24.03]	2 Bolt - A	n/a
104-1452-006	M02149AC17AA0100010000000ACAAF	245	244.3 [14.91]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1451-006	M02149AJ05AA0100010000000AAAAF	245	244.3 [14.91]	4 Bolt - Magneto	n/a
104-1450-006	M02080AJ04AD0100010000000AAAAF	130	130.6 [7.97]	4 Bolt - Magneto	n/a
104-1448-006	M02240AH03AG0200010000000ABAAF	395	393.8 [24.03]	4 Bolt - Square	Square key, 5/16 x 1 inch

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Dust seal	Standard
