Danfoss orbital motor quick selector Parts

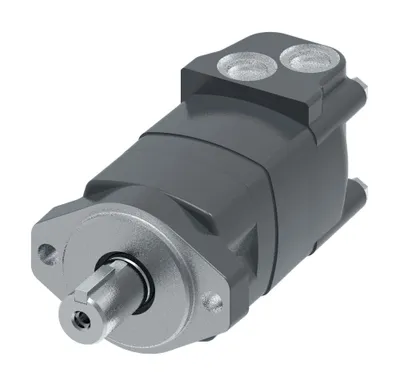

Danfoss

104-1568-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC17AA0100010000000AAAAF

Danfoss

104-1566-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AJ01AA0100010000000AAAAF

Danfoss

104-1564-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH03AG0200010000000ABAAF

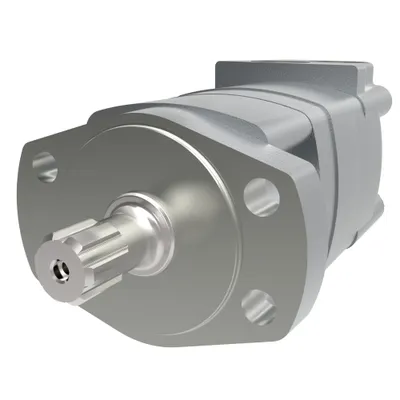

Danfoss

104-1561-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AJ05AA0100010000000AAAAF

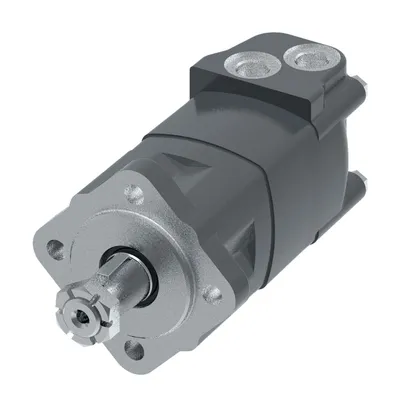

Danfoss

104-1560-006

MOTOR-ORBITAL,2000 SERIES 195 (11.9)

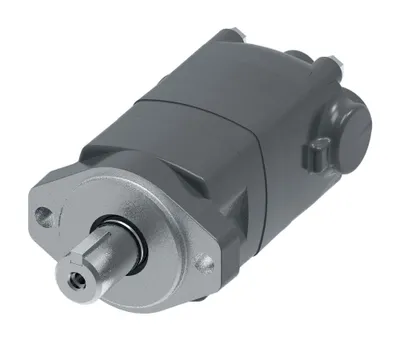

Danfoss

104-1559-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC02AD0100010000000AAAAF

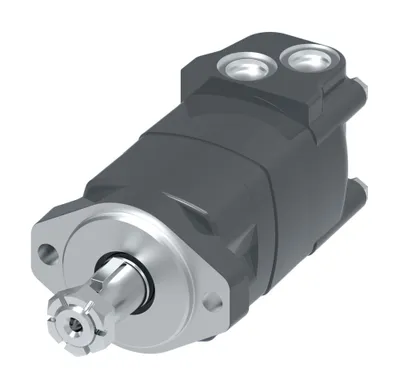

Danfoss

104-1557-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC03AA01000100000AAAAAAF

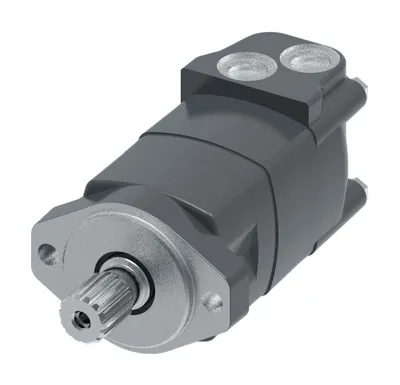

Danfoss

104-1556-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC04AA0100020000000AAAAF

Danfoss

104-1554-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC02AD0100010000000ABAAF

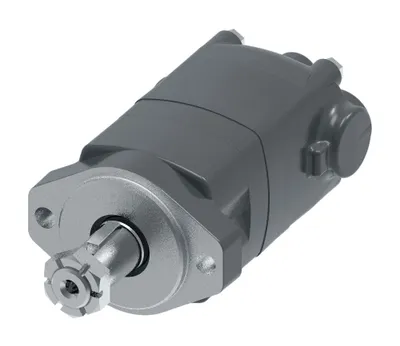

Danfoss

104-1552-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC03AD0100010000000AAAAF

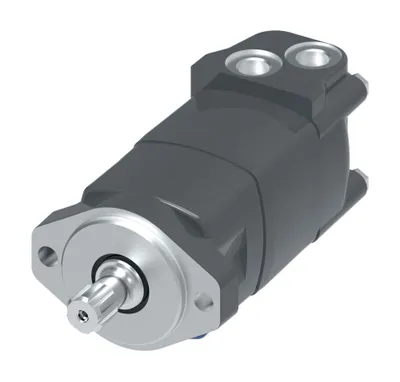

Danfoss

104-1551-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC05AG0200010000000ABAAF

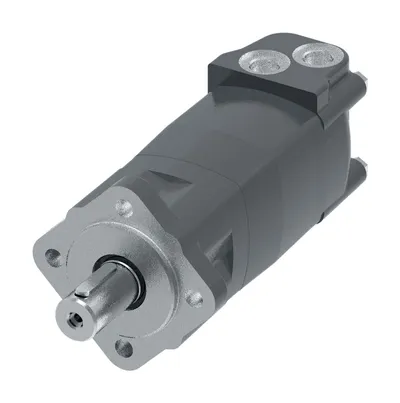

Danfoss

104-1550-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AH16AG0200010000300ABAAF

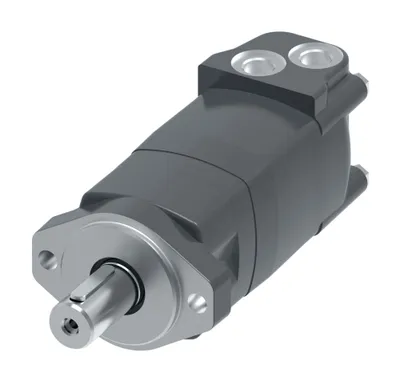

Danfoss

104-1547-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC16AG0200010000000AAAAF

Danfoss

104-1546-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AH16AG0200010000000ABAAF

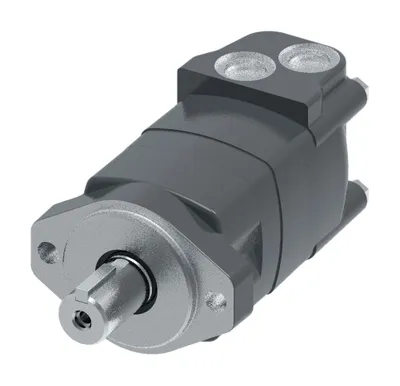

Danfoss

104-1537-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AC17AA0100010000000ACAAF

Danfoss

104-1534-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC15AA0100010000000AAAAF

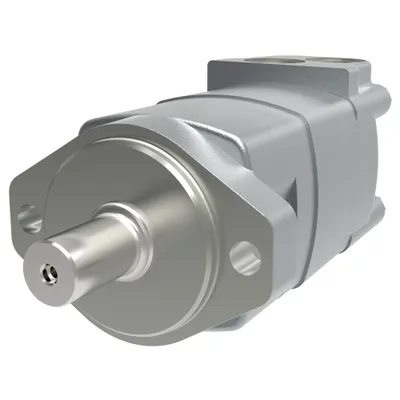

Danfoss

104-1533-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC15AA0100010000000AAAAF

Danfoss

104-1532-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC15AA0100010000000AAAAF

Danfoss

104-1531-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC15AA0100010000000AAAAF

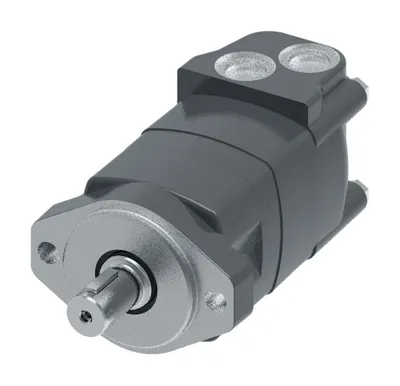

Danfoss

104-1530-006

MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC15AA0100010000000AAAAF

Danfoss

104-1529-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC15AA0100010000000AAAAF

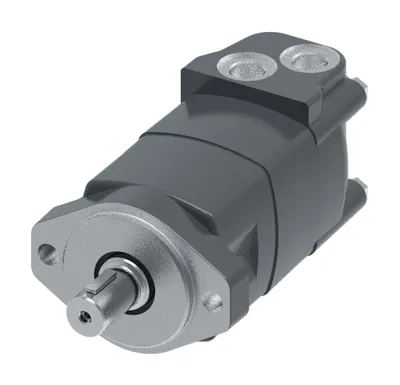

Danfoss

104-1523-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC01AG0200010000000ABAAF

Danfoss

104-1522-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AJ03AG0200010000000ABAAF

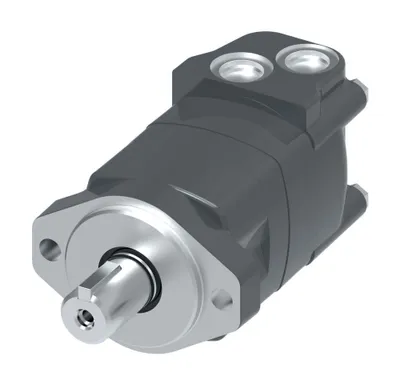

Danfoss

104-1514-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC02AA0100011000000AAAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
104-1568-006	M02096AC17AA0100010000000AAAAF	160	158.1 [9.65]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1566-006	M02298AJ01AA0100010000000AAAAF	490	489.0 [29.84]	4 Bolt - Magneto	Woodruff key, 1/4 x 1 inch
104-1564-006	M02187AH03AG0200010000000ABAAF	305	306.6 [18.71]	4 Bolt - Square	Square key, 5/16 x 1 inch
104-1561-006	M02119AJ05AA0100010000000AAAAF	195	194.8 [11.89]	4 Bolt - Magneto	n/a
104-1559-006	M02062AC02AD0100010000000AAAAF	100	101.6 [6.20]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1557-006	M02096AC03AA01000100000AAAAAAF	160	158.1 [9.65]	2 Bolt - A	Square key, 5/16 x 1 inch
104-1556-006	M02096AC04AA0100020000000AAAAF	160	158.1 [9.65]	2 Bolt - A	n/a
104-1554-006	M02187AC02AD0100010000000ABAAF	305	306.6 [18.71]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1552-006	M02049AC03AD0100010000000AAAAF	80	80.6 [4.92]	2 Bolt - A	Square key, 5/16 x 1 inch
104-1551-006	M02149AC05AG0200010000000ABAAF	245	244.3 [14.91]	2 Bolt - A	n/a
104-1550-006	M02240AH16AG0200010000300ABAAF	395	393.8 [24.03]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1547-006	M02187AC16AG0200010000000AAAAF	305	306.6 [18.71]	2 Bolt - A	Rectangular key, 10 x 8 x 45 mm
104-1546-006	M02298AH16AG0200010000000ABAAF	490	489.0 [29.84]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-1537-006	M02080AC17AA0100010000000ACAAF	130	130.6 [7.97]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1534-006	M02187AC15AA0100010000000AAAAF	305	306.6 [18.71]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1533-006	M02149AC15AA0100010000000AAAAF	245	244.3 [14.91]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1532-006	M02119AC15AA0100010000000AAAAF	195	194.8 [11.89]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1531-006	M02096AC15AA0100010000000AAAAF	160	158.1 [9.65]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1530-006	M02080AC15AA0100010000000AAAAF	130	130.6 [7.97]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1529-006	M02062AC15AA0100010000000AAAAF	100	101.6 [6.20]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1523-006	M02096AC01AG0200010000000ABAAF	160	158.1 [9.65]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1522-006	M02187AJ03AG0200010000000ABAAF	305	306.6 [18.71]	4 Bolt - Magneto	Square key, 5/16 x 1 inch
104-1514-006	M02049AC02AA0100011000000AAAAF	80	80.6 [4.92]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Dust seal	Standard
Front bearing type	Tapered roller bearing
