Danfoss orbital motor quick selector Parts

Danfoss

629AG00547A

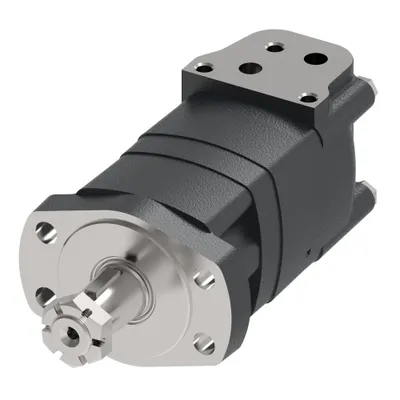

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AJ03AE0100010000000ABAAB

Danfoss

629AG00546A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130ZD16AS02000130052ABABAAB

Danfoss

629AG00545A

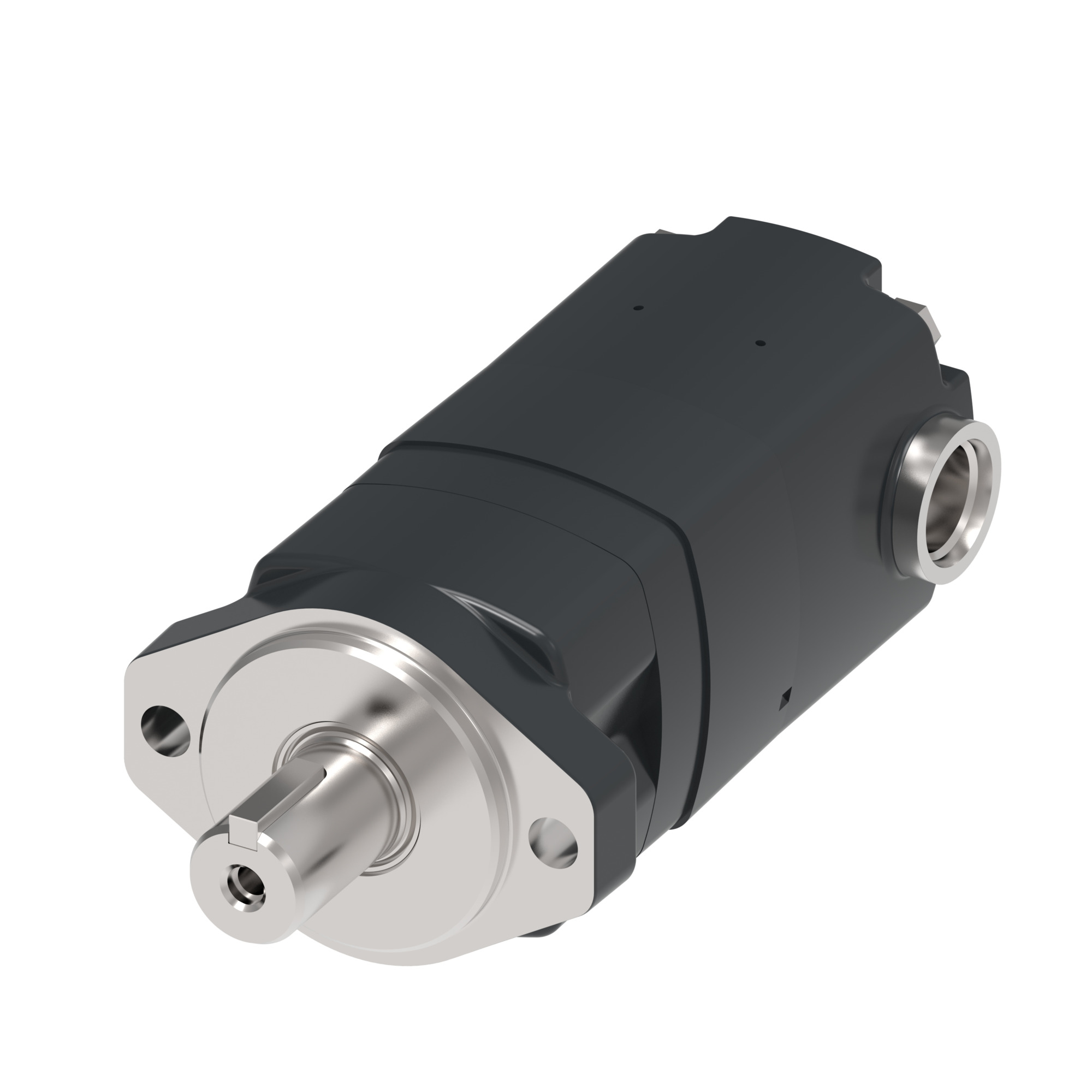

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100ZD16AS02000130052ABABAAB

Danfoss

629AG00544A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AH16AG0200010000000AEAAB

Danfoss

629AG00543A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH16AG0200010000000AEAAB

Danfoss

629AG00542A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH16AG0200010000000AEAAB

Danfoss

629AG00539A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ04AA0100010000000ABABB

Danfoss

629AG00538A

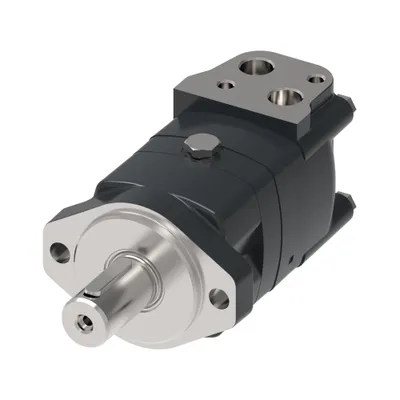

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC98AS0200013005200ABAAB

Danfoss

629AG00537A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH95AS02000300003ABAFAAB

Danfoss

629AG00536A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195ZD99AS02000130052ABABAAB

Danfoss

629AG00535A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC02AE0100010000000ABAAB

Danfoss

629AG00534A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC04AE0100016000000AAAAB

Danfoss

629AG00533A

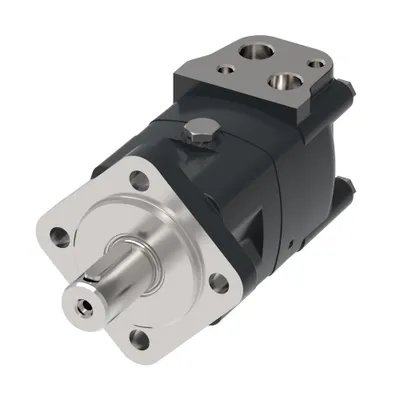

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH97AS0200010005200ABAGB

Danfoss

629AG00532A

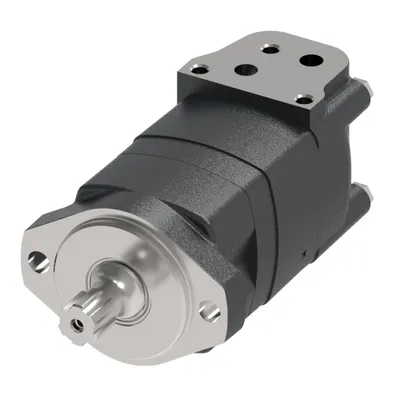

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC05AE0100010000000ABAAB

Danfoss

629AG00530A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH16AS0200014000000ABAAB

Danfoss

629AG00529A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH16AS0200014000000ABAAB

Danfoss

629AG00528A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AJ42AG0200010000000AEAAB

Danfoss

629AG00527A

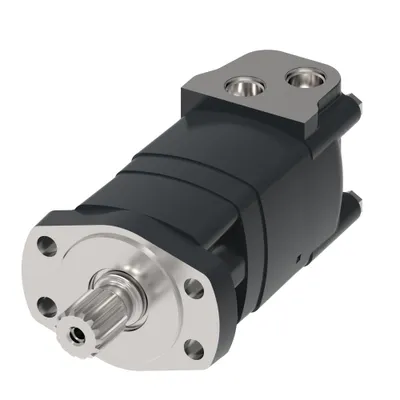

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AJ42AG0200010000000AEAAB

Danfoss

629AG00526A

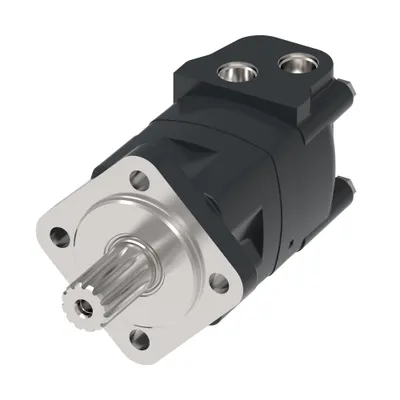

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AH16AG0200010000000AEAAB

Danfoss

629AG00525A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AH16AG0200010000000AEAAB

Danfoss

629AG00524A

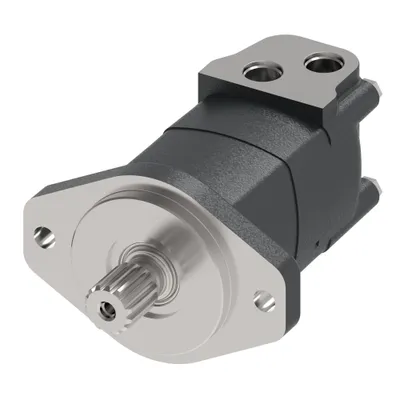

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AF04AA0100010000000ABAAB

Danfoss

629AG00521A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC16AG0200010000000ABAAB

Danfoss

629AG00520A

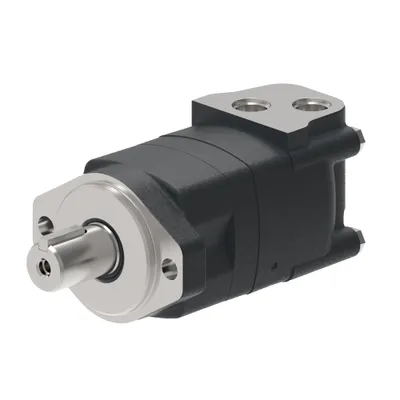

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC98AG0200013000000AGAAB

Danfoss

629AG00519A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH16AG0200010000000AGAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Paint information
629AG00547A	MC2395AJ03AE0100010000000ABAAB	395	393.0 [23.98]	Square key, 5/16 x 1 inch	Painted, Black
629AG00546A	MC2130ZD16AS02000130052ABABAAB	130	130.5 [7.96]	Rectangular key, 10 x 8 x 45 mm	Painted, Black
629AG00545A	MC2100ZD16AS02000130052ABABAAB	100	101.3 [6.18]	Rectangular key, 10 x 8 x 45 mm	Painted, Black
629AG00544A	MC2490AH16AG0200010000000AEAAB	490	487.8 [29.77]	Rectangular key, 10 x 8 x 45 mm	Painted, Black - Spec. Component
629AG00543A	MC2305AH16AG0200010000000AEAAB	305	305.7 [18.65]	Rectangular key, 10 x 8 x 45 mm	Painted, Black - Spec. Component
629AG00542A	MC2195AH16AG0200010000000AEAAB	195	194.5 [11.87]	Rectangular key, 10 x 8 x 45 mm	Painted, Black - Spec. Component
629AG00539A	MC2195AJ04AA0100010000000ABABB	195	194.5 [11.87]	n/a	Painted, Black
629AG00538A	MC2195AC98AS0200013005200ABAAB	195	194.5 [11.87]	Rectangular key, 8 x 7 x 32 mm	Painted, Black
629AG00537A	MC2245AH95AS02000300003ABAFAAB	245	243.9 [14.88]	Square key, 5/16 x 1 inch	Painted, Green - Spec. Component
629AG00536A	MC2195ZD99AS02000130052ABABAAB	195	194.5 [11.87]	n/a	Painted, Black
629AG00535A	MC2245AC02AE0100010000000ABAAB	245	243.9 [14.88]	Square key, 5/16 x 1 1/4 inch	Painted, Black
629AG00534A	MC2195AC04AE0100016000000AAAAB	195	194.5 [11.87]	n/a	Painted, Blue
629AG00533A	MC2195AH97AS0200010005200ABAGB	195	194.5 [11.87]	n/a	Painted, Black
629AG00532A	MC2195AC05AE0100010000000ABAAB	195	194.5 [11.87]	n/a	Painted, Black
629AG00530A	MC2305AH16AS0200014000000ABAAB	305	305.7 [18.65]	Rectangular key, 10 x 8 x 45 mm	Painted, Black
629AG00529A	MC2245AH16AS0200014000000ABAAB	245	243.9 [14.88]	Rectangular key, 10 x 8 x 45 mm	Painted, Black
629AG00528A	MC2490AJ42AG0200010000000AEAAB	490	487.8 [29.77]	Rectangular key, 10 x 8 x 45 mm	Painted, Black - Spec. Component
629AG00527A	MC2395AJ42AG0200010000000AEAAB	395	393.0 [23.98]	Rectangular key, 10 x 8 x 45 mm	Painted, Black - Spec. Component
629AG00526A	MC2395AH16AG0200010000000AEAAB	395	393.0 [23.98]	Rectangular key, 10 x 8 x 45 mm	Painted, Black - Spec. Component
629AG00525A	MC2160AH16AG0200010000000AEAAB	160	157.7 [9.62]	Rectangular key, 10 x 8 x 45 mm	Painted, Black - Spec. Component
629AG00524A	MC2395AF04AA0100010000000ABAAB	395	393.0 [23.98]	n/a	Painted, Black
629AG00521A	MC2160AC16AG0200010000000ABAAB	160	157.7 [9.62]	Rectangular key, 10 x 8 x 45 mm	Painted, Black
629AG00520A	MC2395AC98AG0200013000000AGAAB	395	393.0 [23.98]	Rectangular key, 8 x 7 x 32 mm	Painted, Grey
629AG00519A	MC2195AH16AG0200010000000AGAAB	195	194.5 [11.87]	Rectangular key, 10 x 8 x 45 mm	Painted, Grey

Common to all listed parts

Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	Yes
