Danfoss orbital motor quick selector Parts

Danfoss

629AG00516A

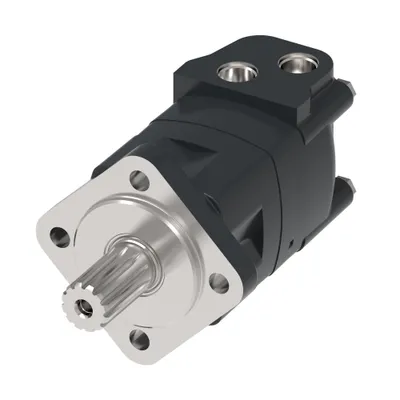

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH16AS0200013AA5200ABAAB

Danfoss

629AG00514A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH02AA0100013000000ABAAB

Danfoss

629AG00509A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH41AS0200013005100ABAAB

Danfoss

629AG00507A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC02ZC9200010000000ABAAB

Danfoss

629AG00506A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC02ZC9200010000000ABAAB

Danfoss

629AG00505A

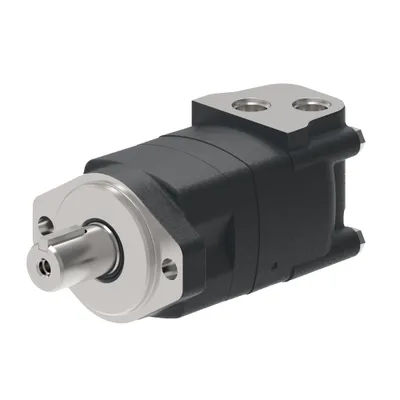

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AC98AA0100013000000AAAAB

Danfoss

629AG00504A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC98AA0100013000000AAAAB

Danfoss

629AG00503A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AC98AA0100013000000AAAAB

Danfoss

629AG00502A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC98AA0100013000000AAAAB

Danfoss

629AG00501A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC98AA0100013000000AAAAB

Danfoss

629AG00500A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC98AA0100013000000AAAAB

Danfoss

629AG00499A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC98AA0100013000000AAAAB

Danfoss

629AG00498A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC98AA0100013000000AAAAB

Danfoss

629AG00497A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC98AA0100013000000AAAAB

Danfoss

629AG00496A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC98AG0200013000000ABAAB

Danfoss

629AG00495A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC05BA8900010000000ABAGB

Danfoss

629AG00494A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AY16AS0200013000000ABAAB

Danfoss

629AG00493A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AY16AS0200013000000ABAAB

Danfoss

629AG00492A

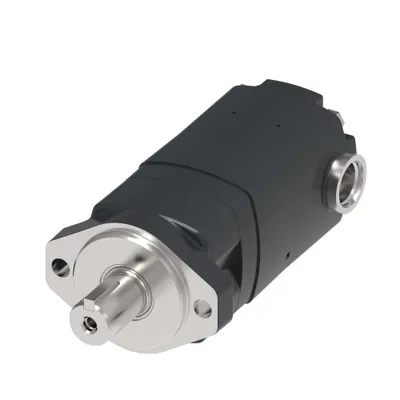

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AY16AS0200013000000ABAAB

Danfoss

629AG00491A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AY16AS0200013000000ABAAB

Danfoss

629AG00490A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC05BA8900010000000ABAGB

Danfoss

629AG00489A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC05BA8900010000000ABAGB

Danfoss

629AG00485A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC98AG0200016000000ABAAB

Danfoss

629AG00484A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AC98AG0200016000000ABAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Seal Kit
629AG00516A	MC2245AH16AS0200013AA5200ABAAB	245	243.9 [14.88]	Rectangular key, 10 x 8 x 45 mm	Z331-51
629AG00514A	MC2305AH02AA0100013000000ABAAB	305	305.7 [18.65]	Square key, 5/16 x 1 1/4 inch	Z331-51
629AG00509A	MC2245AH41AS0200013005100ABAAB	245	243.9 [14.88]	Square key, 6 x 20 mm	Z331-57
629AG00507A	MC2395AC02ZC9200010000000ABAAB	395	393.0 [23.98]	Square key, 5/16 x 1 1/4 inch	Z331-02
629AG00506A	MC2130AC02ZC9200010000000ABAAB	130	130.5 [7.96]	Square key, 5/16 x 1 1/4 inch	Z331-02
629AG00505A	MC2490AC98AA0100013000000AAAAB	490	487.8 [29.77]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00504A	MC2395AC98AA0100013000000AAAAB	395	393.0 [23.98]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00503A	MC2305AC98AA0100013000000AAAAB	305	305.7 [18.65]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00502A	MC2245AC98AA0100013000000AAAAB	245	243.9 [14.88]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00501A	MC2195AC98AA0100013000000AAAAB	195	194.5 [11.87]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00500A	MC2160AC98AA0100013000000AAAAB	160	157.7 [9.62]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00499A	MC2130AC98AA0100013000000AAAAB	130	130.5 [7.96]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00498A	MC2100AC98AA0100013000000AAAAB	100	101.3 [6.18]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00497A	MC2080AC98AA0100013000000AAAAB	80	80.1 [4.89]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00496A	MC2395AC98AG0200013000000ABAAB	395	393.0 [23.98]	Rectangular key, 8 x 7 x 32 mm	Z331-51
629AG00495A	MC2160AC05BA8900010000000ABAGB	160	157.7 [9.62]	n/a	Z331-02
629AG00494A	MC2160AY16AS0200013000000ABAAB	160	157.7 [9.62]	Rectangular key, 10 x 8 x 45 mm	Z331-51
629AG00493A	MC2305AY16AS0200013000000ABAAB	305	305.7 [18.65]	Rectangular key, 10 x 8 x 45 mm	Z331-51
629AG00492A	MC2245AY16AS0200013000000ABAAB	245	243.9 [14.88]	Rectangular key, 10 x 8 x 45 mm	Z331-51
629AG00491A	MC2195AY16AS0200013000000ABAAB	195	194.5 [11.87]	Rectangular key, 10 x 8 x 45 mm	Z331-51
629AG00490A	MC2130AC05BA8900010000000ABAGB	130	130.5 [7.96]	n/a	Z331-02
629AG00489A	MC2080AC05BA8900010000000ABAGB	80	80.1 [4.89]	n/a	Z331-02
629AG00485A	MC2395AC98AG0200016000000ABAAB	395	393.0 [23.98]	Rectangular key, 8 x 7 x 32 mm	Z331-45
629AG00484A	MC2305AC98AG0200016000000ABAAB	305	305.7 [18.65]	Rectangular key, 8 x 7 x 32 mm	Z331-45

Common to all listed parts

Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Special Features Assembly	Standard
