Danfoss 629AG00529A

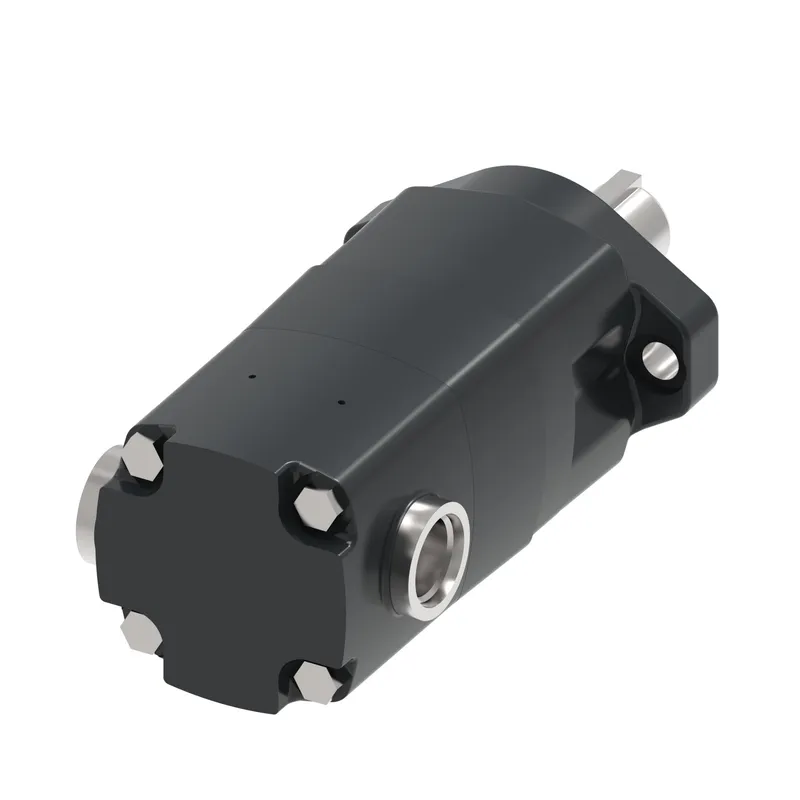

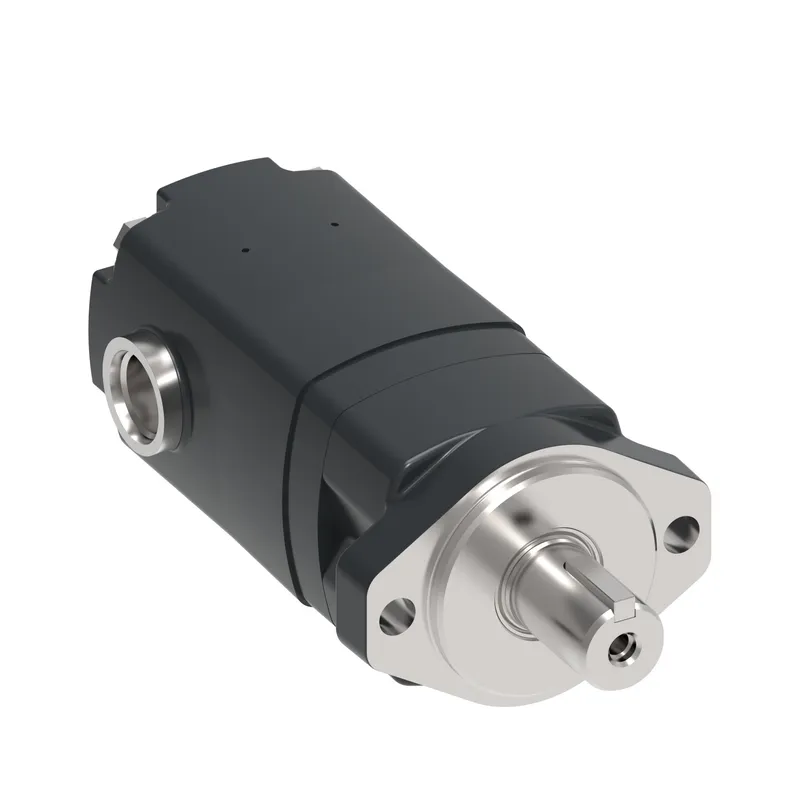

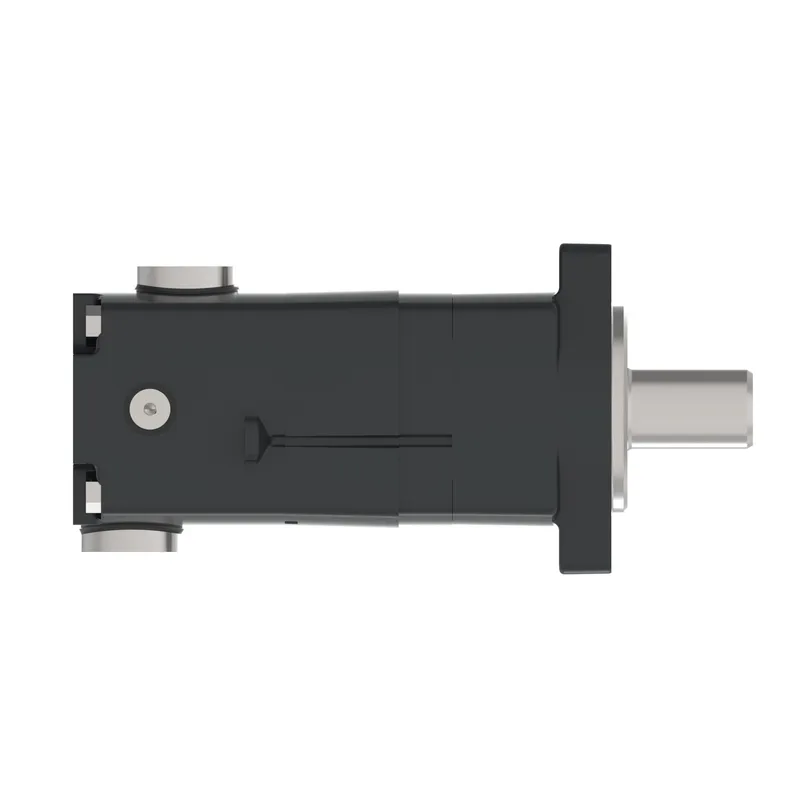

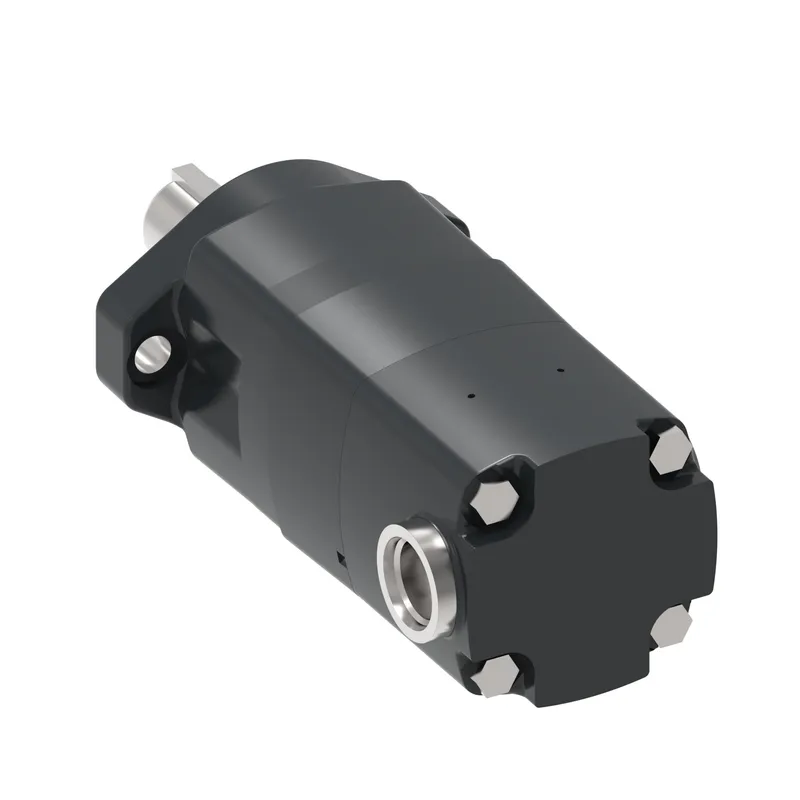

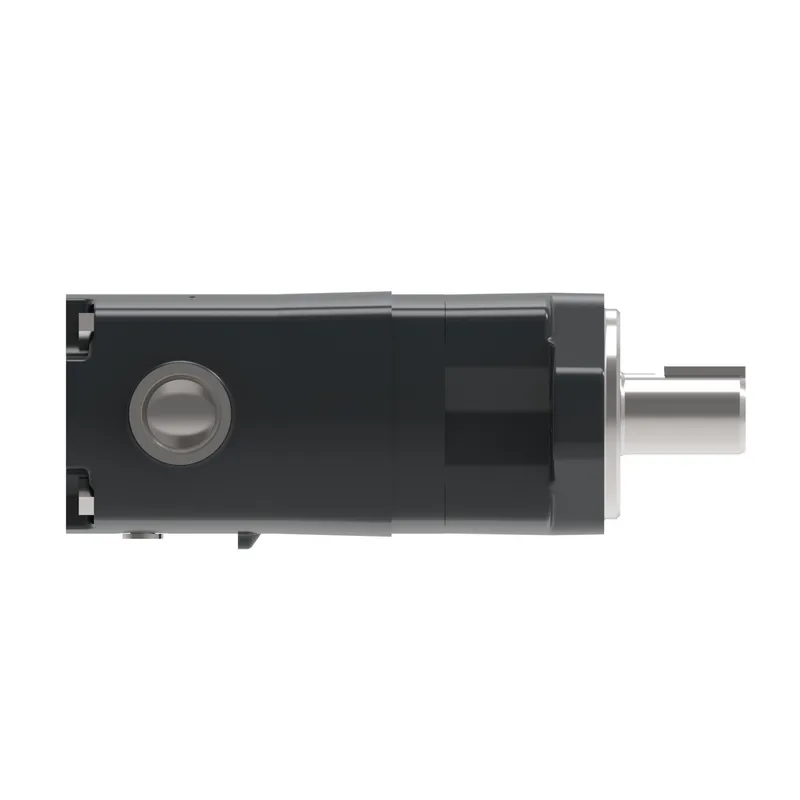

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH16AS0200014000000ABAAB

MPN: 629AG00529A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 629AG00529A?

Danfoss MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH16AS0200014000000ABAAB, manufacturer part number 629AG00529A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC2245AH16AS0200014000000ABAAB
Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	245
Geometric displacement [cm3/r [in3/r]]	243.9 [14.88]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 6.3, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54]
Shaft type	Straight
Shaft dimension	Dia. 32 mm, M8 x 1.25-6H thread in shaft end
Shaft Key	Rectangular key, 10 x 8 x 45 mm
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1/2, 2 x M10 x 1.5-6H block mounting threads
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black
Special Features Assembly	Standard
Dust seal	Seal Guard
Shaft Seal	NBR - Standard
Seal Kit	Z331-60
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	2
Brand	Danfoss
Sub brand	Xcel
