Danfoss orbital motor quick selector Parts

Danfoss

629AG00710A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AF01AA0100010000000ABAAB

Danfoss

629AG00709A

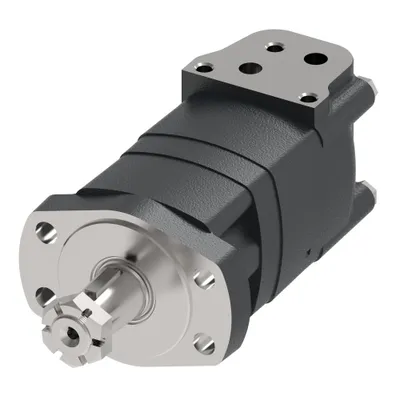

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AJ03AE0100010000000ABAAB

Danfoss

629AG00708A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AJ03AE0100010000000ABAAB

Danfoss

629AG00707A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC02ZC9200010000000ABAAB

Danfoss

629AG00706A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH16AS0200013000000AGAAB

Danfoss

629AG00705A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AJ03AA0100010000000ABADB

Danfoss

629AG00704A

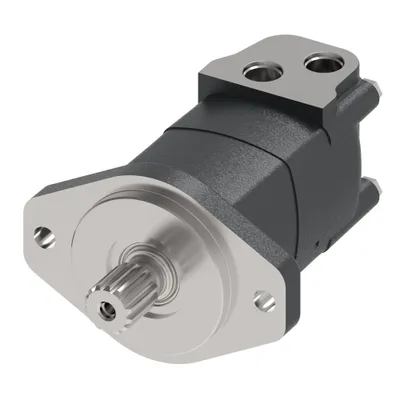

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AF04AA0100010000000ABAAB

Danfoss

629AG00703A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AF04AA0100010000000ABAAB

Danfoss

629AG00702A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AH16AS02000130000ABABAAB

Danfoss

629AG00700A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AJ04AA0100010AH0000ABAAB

Danfoss

629AG00699A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ04AA0100010AH0000ABAAB

Danfoss

629AG00697A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC02AA0100010AH0000ABAAB

Danfoss

629AG00696A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AH16AG0200010AH0000ABAAB

Danfoss

629AG00695A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AF01AA0100010000000ABAAB

Danfoss

629AG00694A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC35AA0100010000000ABAAB

Danfoss

629AG00693A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AJ35AG0200010000000ABAAB

Danfoss

629AG00692A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ35AG0200010000000ABAAB

Danfoss

629AG00690A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AC04AA0100013000000AAAAB

Danfoss

629AG00689A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AH02AA0100010000000ABAAB

Danfoss

629AG00686A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ02AA0101713000000ABAAB

Danfoss

629AG00681A

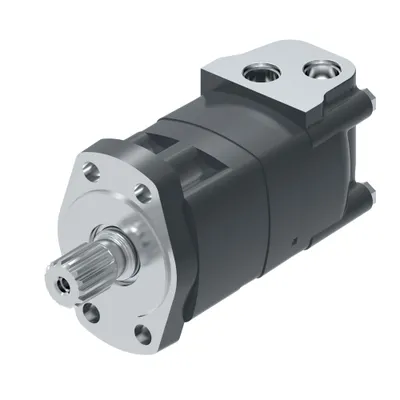

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AJ04AG02000100000AAABAAB

Danfoss

629AG00680A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC98AG0200013000000ABAAB

Danfoss

629AG00678A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AH35AA0100013000000ABAAB

Danfoss

629AG00675A

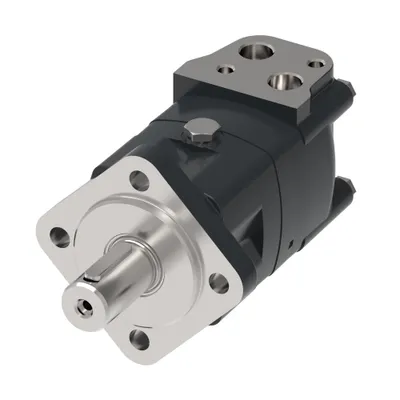

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AY16AS0200013005200ABAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
629AG00710A	MC2100AF01AA0100010000000ABAAB	100	101.3 [6.18]	2 Bolt - B	Square key, 1/4 x 1 1/4 inch
629AG00709A	MC2130AJ03AE0100010000000ABAAB	130	130.5 [7.96]	4 Bolt - Magneto	Square key, 5/16 x 1 inch
629AG00708A	MC2245AJ03AE0100010000000ABAAB	245	243.9 [14.88]	4 Bolt - Magneto	Square key, 5/16 x 1 inch
629AG00707A	MC2100AC02ZC9200010000000ABAAB	100	101.3 [6.18]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00706A	MC2245AH16AS0200013000000AGAAB	245	243.9 [14.88]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00705A	MC2490AJ03AA0100010000000ABADB	490	487.8 [29.77]	4 Bolt - Magneto	Square key, 5/16 x 1 inch
629AG00704A	MC2130AF04AA0100010000000ABAAB	130	130.5 [7.96]	2 Bolt - B	n/a
629AG00703A	MC2100AF04AA0100010000000ABAAB	100	101.3 [6.18]	2 Bolt - B	n/a
629AG00702A	MC2130AH16AS02000130000ABABAAB	130	130.5 [7.96]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00700A	MC2305AJ04AA0100010AH0000ABAAB	305	305.7 [18.65]	4 Bolt - Magneto	n/a
629AG00699A	MC2195AJ04AA0100010AH0000ABAAB	195	194.5 [11.87]	4 Bolt - Magneto	n/a
629AG00697A	MC2080AC02AA0100010AH0000ABAAB	80	80.1 [4.89]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00696A	MC2130AH16AG0200010AH0000ABAAB	130	130.5 [7.96]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00695A	MC2130AF01AA0100010000000ABAAB	130	130.5 [7.96]	2 Bolt - B	Square key, 1/4 x 1 1/4 inch
629AG00694A	MC2245AC35AA0100010000000ABAAB	245	243.9 [14.88]	2 Bolt - A	n/a
629AG00693A	MC2245AJ35AG0200010000000ABAAB	245	243.9 [14.88]	4 Bolt - Magneto	n/a
629AG00692A	MC2195AJ35AG0200010000000ABAAB	195	194.5 [11.87]	4 Bolt - Magneto	n/a
629AG00690A	MC2490AC04AA0100013000000AAAAB	490	487.8 [29.77]	2 Bolt - A	n/a
629AG00689A	MC2080AH02AA0100010000000ABAAB	80	80.1 [4.89]	4 Bolt - Square	Square key, 5/16 x 1 1/4 inch
629AG00686A	MC2195AJ02AA0101713000000ABAAB	195	194.5 [11.87]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
629AG00681A	MC2100AJ04AG02000100000AAABAAB	100	101.3 [6.18]	4 Bolt - Magneto	n/a
629AG00680A	MC2195AC98AG0200013000000ABAAB	195	194.5 [11.87]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm
629AG00678A	MC2130AH35AA0100013000000ABAAB	130	130.5 [7.96]	4 Bolt - Square	n/a
629AG00675A	MC2305AY16AS0200013005200ABAAB	305	305.7 [18.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm

Common to all listed parts

Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Dust seal	Standard
