Danfoss orbital motor quick selector Parts

Danfoss

11106930

OMT 315 FX HYDRAULIC MOTOR

Danfoss

11106135

OMV 800 EMD HYDRAULIC MOTOR

Danfoss

11106134

OMV 630 EMD HYDRAULIC MOTOR

Danfoss

11106133

OMV 400 EMD HYDRAULIC MOTOR

Danfoss

11106132

OMV 315 EMD HYDRAULIC MOTOR

Danfoss

11106125

OMT 500 EMD HYDRAULIC MOTOR

Danfoss

11106124

OMT 400 EMD HYDRAULIC MOTOR

Danfoss

11106123

OMT 250 EMD HYDRAULIC MOTOR

Danfoss

11106122

OMT 200 EMD HYDRAULIC MOTOR

Danfoss

11106121

OMT 160 EMD HYDRAULIC MOTOR

Danfoss

11106111

OMT 250 FH HYDRAULIC MOTOR

Danfoss

111-1088-004

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AA00AB0200000AD00000000D

Danfoss

111-1086-004

MOTOR-ORBITAL,4000 SERIES 280 [17.1], M04171AA00AC0300000000000AA00D

Danfoss

111-1074-004

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AA00AB0200000AA00000000D

Danfoss

111-1070-004

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AA00AA01000000002000000D

Danfoss

111-1063-004

MOTOR-ORBITAL,4000 SERIES 625 [38], M04381AA00AB02000000000000000D

Danfoss

111-1062-004

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AA00AB02000000000000000D

Danfoss

111-1061-004

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AA00AA01000000002000000D

Danfoss

111-1059-004

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AA00AB02000000006000000D

Danfoss

111-1057-004

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AA00AC0300000000000AA00D

Danfoss

111-1056-004

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AA00AC0300000000000AA00D

Danfoss

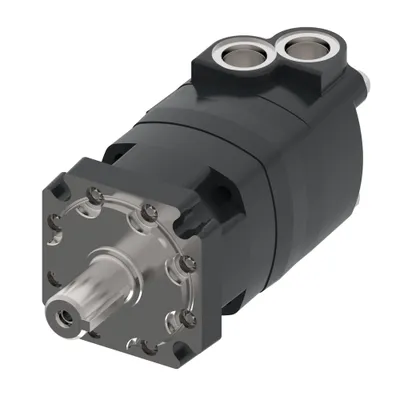

111-1055-004

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AA00AC0300000000000AA00D

Danfoss

111-1053-004

MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AA00AC0300000000000AA00D

Danfoss

111-1045-004

MOTOR 4K, M04099AA00AD02000000000000000D

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Motor Series	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Drain Port Dimension
11106135	OMV Series	800	801.8 [48.93]	BSP	G 1/4
11106134	OMV Series	630	629.1 [38.39]	BSP	G 1/4
11106133	OMV Series	400	400.9 [24.46]	BSP	G 1/4
11106132	OMV Series	315	314.5 [19.19]	BSP	G 1/4
11106125	OMT Series	500	523.6 [31.95]	BSP	G 1/4
11106124	OMT Series	400	410.9 [25.07]	BSP	G 1/4
11106123	OMT Series	250	251.8 [15.36]	BSP	G 1/4
11106122	OMT Series	200	201.4 [12.29]	BSP	G 1/4
11106121	OMT Series	160	161.1 [9.83]	BSP	G 1/4
111-1088-004	4000 Series	495	492.6 [30.06]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
111-1086-004	4000 Series	280	280.1 [17.09]	BSP	G 1/4
111-1074-004	4000 Series	205	205.5 [12.54]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
111-1070-004	4000 Series	310	311.8 [19.03]	UN / UNF	9/16 - 18 UNF-2B SAE O-Ring port
111-1063-004	4000 Series	625	623.9 [38.07]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
111-1062-004	4000 Series	495	492.6 [30.06]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
111-1061-004	4000 Series	160	162.2 [9.90]	UN / UNF	9/16 - 18 UNF-2B SAE O-Ring port
111-1059-004	4000 Series	205	205.5 [12.54]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
111-1057-004	4000 Series	310	311.8 [19.03]	BSP	G 1/4
111-1056-004	4000 Series	245	246.3 [15.03]	BSP	G 1/4
111-1055-004	4000 Series	205	205.5 [12.54]	BSP	G 1/4
111-1053-004	4000 Series	130	130.3 [7.95]	BSP	G 1/4
111-1045-004	4000 Series	160	162.2 [9.90]	Manifold	7/16 - 20 UNF-2B SAE O-Ring port

Common to all listed parts

Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor function	Standard
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Orbital gearwheel set	Standard
Hydraulic valve function	None
Packaging	Single pack
