Danfoss orbital motor quick selector Parts

Danfoss

111-1039-004

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AA00AB02000000000000000D

Danfoss

111-1038-004

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AA00AB02000000000000000D

Danfoss

111-1037-004

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AA00AB02000000000000000D

Danfoss

111-1036-004

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AA00AB02000000000000000D

Danfoss

111-1035-004

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AA00AB02000000000000000D

Danfoss

111-1034-004

MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AA00AB02000000000000000D

Danfoss

111-1033-004

MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AA00AB02000000000000000D

Danfoss

111-1021-004

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AA00AA01000000005000000D

Danfoss

11099278

TMK 470 HYDRAULIC MOTOR

Danfoss

11097610

OMT 315 FH V HYDRAULIC MOTOR

Danfoss

11095466

OMTW 250 HD HYDRAULIC MOTOR

Danfoss

11095463

TMKW 250 EMD HYDRAULIC MOTOR

Danfoss

11095357

TMVW 500 EMD HYDRAULIC MOTOR

Danfoss

11095278

OMV 500 EMD HYDRAULIC MOTOR

Danfoss

11095277

OMT 315 EMD HYDRAULIC MOTOR

Danfoss

11094987

TMT 315 HYDRAULIC MOTOR

Danfoss

11094239

OMT 160 FH HYDRAULIC MOTOR

Danfoss

11092239

OMV 315 HD EM HYDRAULIC MOTOR

Danfoss

11090488

TMTW 500 HYDRAULIC MOTOR

Danfoss

11090487

TMTW 400 HYDRAULIC MOTOR

Danfoss

11090486

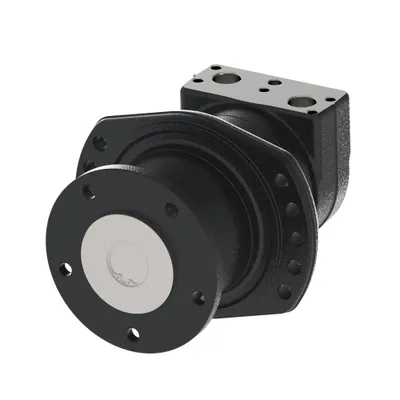

TMTW 315 HYDRAULIC MOTOR

Danfoss

11090116

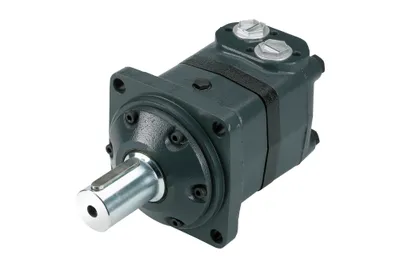

OMV 800 HYDRAULIC MOTOR

Danfoss

11089440

TMTHW 800 HYDRAULIC MOTOR

Danfoss

11089213

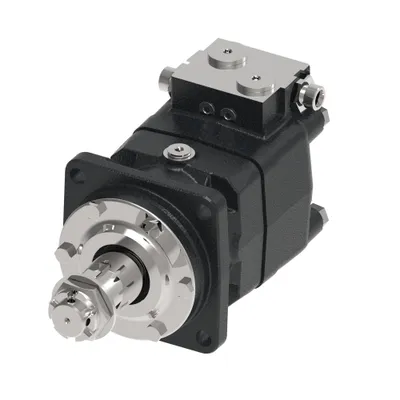

OMT 200 O HYDRAULIC MOTOR

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Motor Series	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port dimension	Drain Port Dimension
111-1039-004	4000 Series	395	393.9 [24.04]	1 1/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
111-1038-004	4000 Series	310	311.8 [19.03]	1 1/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
111-1037-004	4000 Series	245	246.3 [15.03]	1 1/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
111-1036-004	4000 Series	205	205.5 [12.54]	1 1/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
111-1035-004	4000 Series	160	162.2 [9.90]	1 1/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
111-1034-004	4000 Series	130	130.3 [7.95]	1 1/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
111-1033-004	4000 Series	110	109.8 [6.70]	1 1/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
111-1021-004	4000 Series	160	162.2 [9.90]	7/8 - 14 UNF-2B SAE O-Ring port	9/16 - 18 UNF-2B SAE O-Ring port
11099278	TMK Series	470	471.1 [28.75]	G 3/4	G 1/4
11095278	OMV Series	500	499.6 [30.49]	G 1, 4 x M12 block mounting threads	G 1/4
11095277	OMT Series	315	326.3 [19.91]	G 3/4, 4 x M10 block mounting threads	G 1/4
11090116	OMV Series	800	801.8 [48.93]	G 1, 4 x M12 block mounting threads	9/16 - 18 UNF-2B O-Ring port

Common to all listed parts

Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Orbital gearwheel set	Standard
Hydraulic valve function	None
