Danfoss 111-1088-004

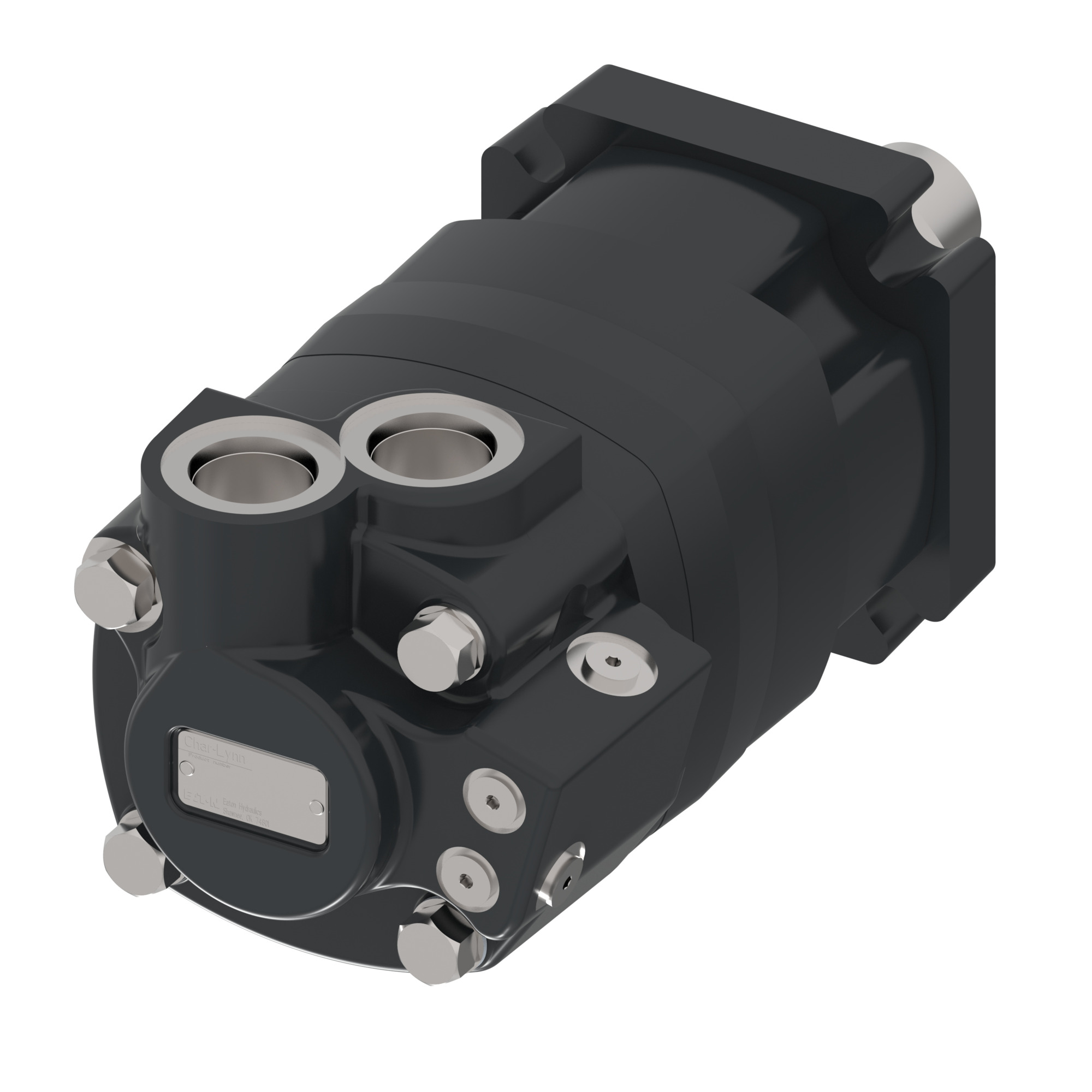

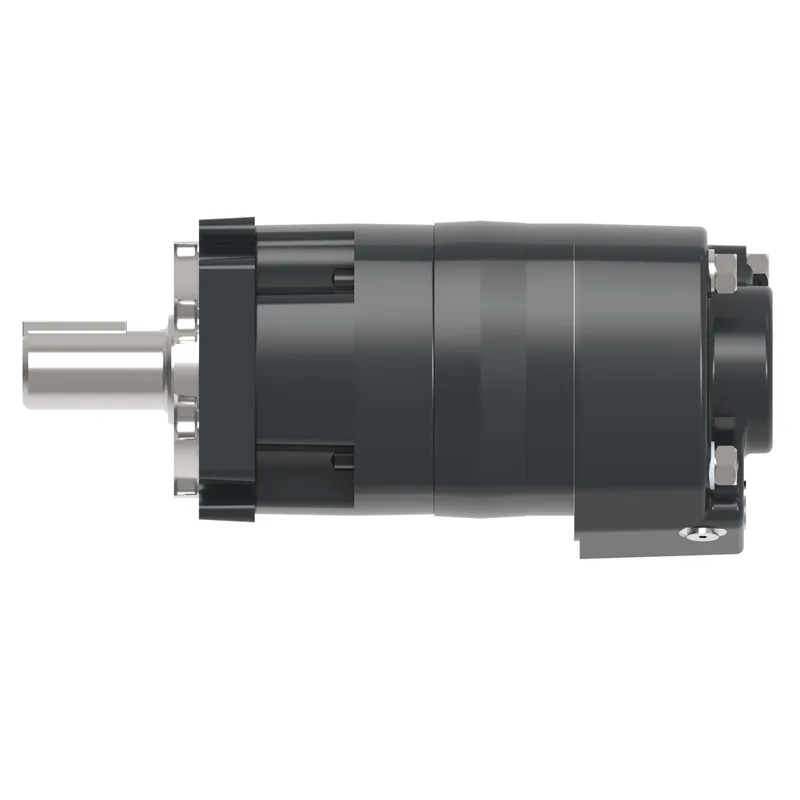

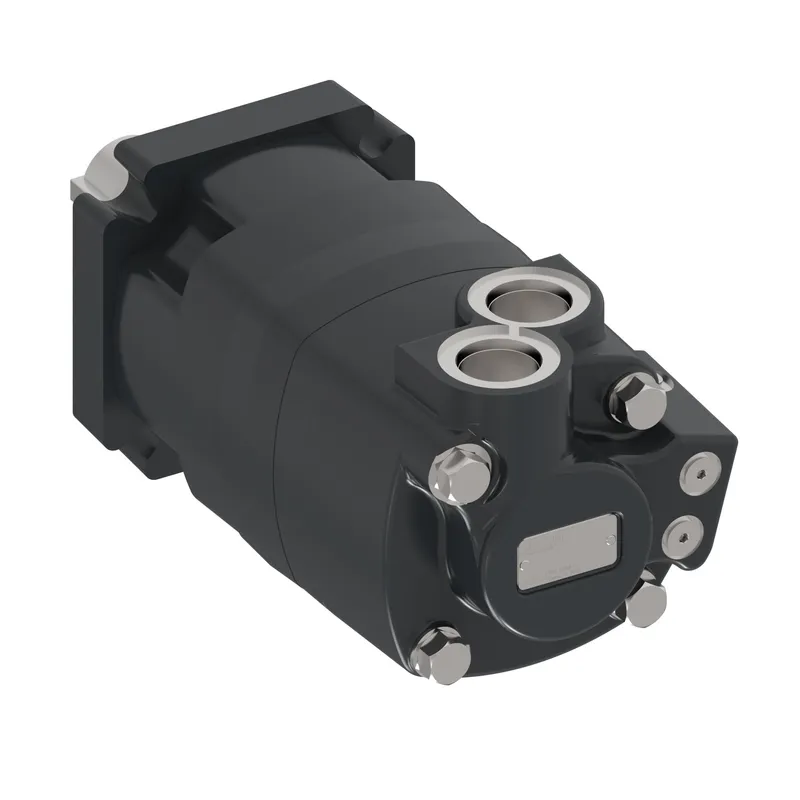

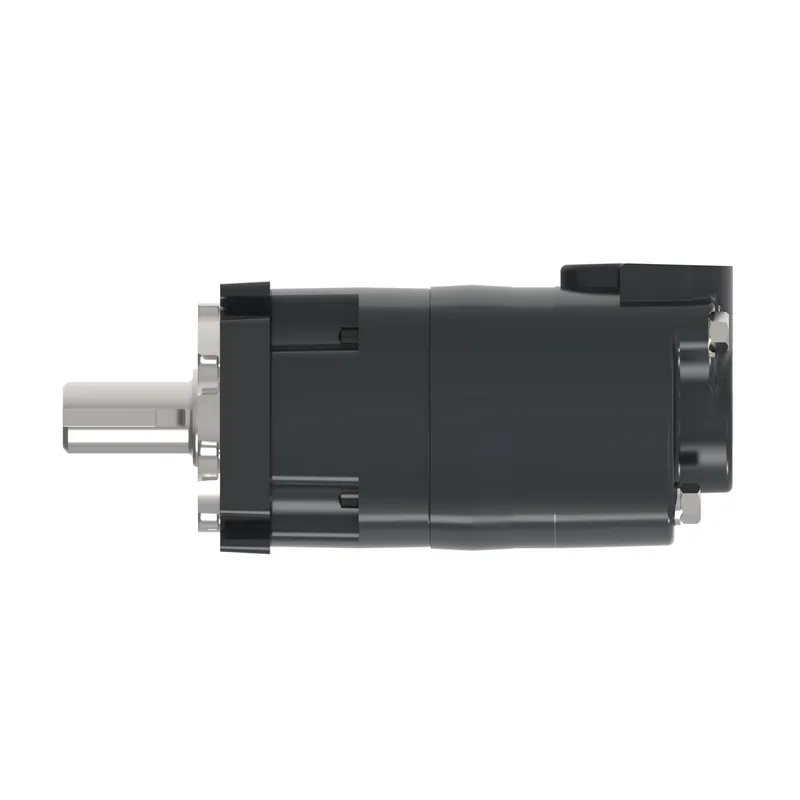

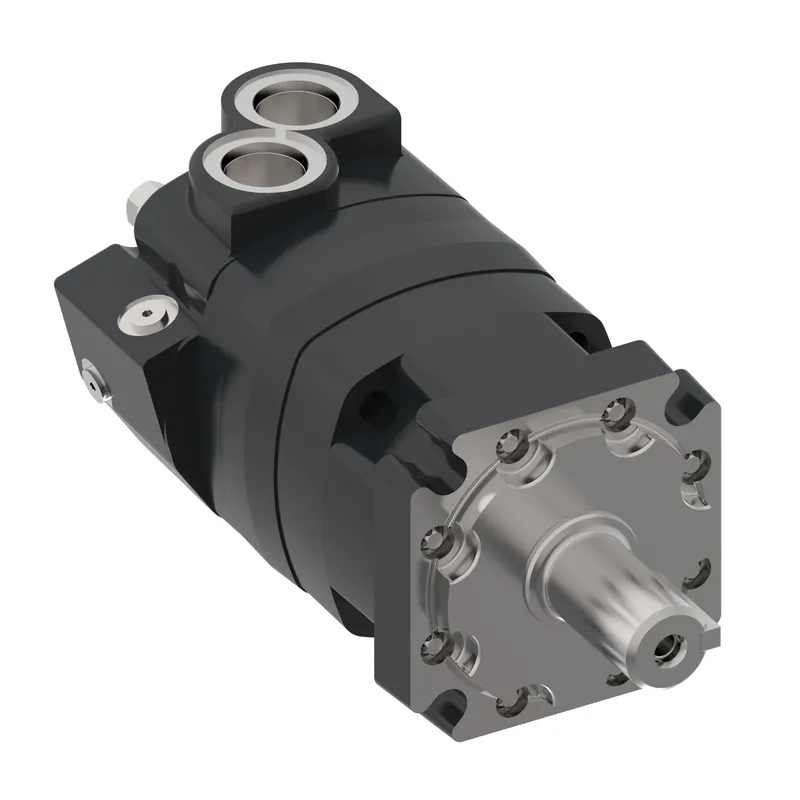

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AA00AB0200000AD00000000D

MPN: 111-1088-004
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 111-1088-004?

Danfoss MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AA00AB0200000AD00000000D, manufacturer part number 111-1088-004. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M04301AA00AB0200000AD00000000D
Motor Series	4000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Mounting type	4 B P127 B162 H14
Motor size	495
Geometric displacement [cm3/r [in3/r]]	492.6 [30.06]
Motor type	Short
Motor function	Standard
Mounting flange type	4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	127.0 x 12.5, 161.9, 14.3 [5.00 x 0.49, 6.38, 0.56]
Shaft type	None
Shaft dimension	n/a
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 1/16 - 12 UN-2B SAE O-Ring port
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Standard
Dust seal	n/a
Shaft Seal	n/a
Seal Kit	61233-000
Front bearing type	n/a
Rear bearing type	n/a
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	Speed and Direction, Hall effect, 72 pulses, M12 connector
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	04
Brand	Danfoss
Low pressure relief	None
Output shaft type	None
Seal options	Standard
Series	4000 series
Sub brand	Char-Lynn
