Danfoss orbital motor quick selector Parts
![Danfoss 11118767 – MOTOR-ORBITAL,TMV SERIES 800 [48.8]](/media/assets/danfoss-drives/11118767/images/sha256_7a7ce347bac56a1c41a72d3dc66e89683928d3461708e71ff6a2dad2c815736f.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fphotos%2Fpreview%2Flatest%2F119476%2FID114021258166-0101_preview.jpg&w=400 "Danfoss 11118767 – MOTOR-ORBITAL,TMV SERIES 800 [48.8]")
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor Series | Motor size | Geometric displacement [cm3/r [in3/r]] | Mounting flange type | Main port dimension |
|---|---|---|---|---|---|
| 11129092 | OMT Series | 315 | 326.3 [19.91] | 4 Bolt - Square | G 3/4, 4 x M10 block mounting threads |
| 11128598 | OMT Series | 200 | 201.4 [12.29] | 4 Bolt - C | 1 1/16 - 12 UN-2B SAE O-Ring port, - |
| 11128155 | TMK Series | 250 | 252.2 [15.39] | 4 Bolt - Wheel | G 3/4 |
| 11128153 | TMK Series | 200 | 201.5 [12.30] | 4 Bolt - Wheel | G 3/4 |
| 11128140 | TMK Series | 160 | 158.0 [9.64] | 4 Bolt - Wheel | G 3/4 |
| 11127659 | TMV Series | 400 | 400.9 [24.46] | 8 Bolt - Wheel | G 1, 5 x M10 block mounting threads |

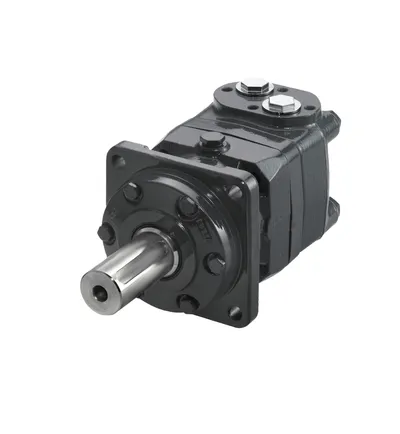

| 11125053 | OMT Series | 315 | 326.3 [19.91] | 4 Bolt - C | G 3/4, 4 x M10 block mounting threads |
| 11125052 | OMT Series | 250 | 251.8 [15.36] | 4 Bolt - C | G 3/4, 4 x M10 block mounting threads |
| 11125021 | OMT Series | 160 | 161.1 [9.83] | 4 Bolt - C | G 3/4, 4 x M10 block mounting threads |
| 11124051 | OMT Series | 250 | 251.8 [15.36] | 4 Bolt - Square | G 3/4, 4 x M10 block mounting threads |
| 11118021 | OMV Series | 315 | 314.5 [19.19] | 4 Bolt - Square | G 1, 4 x M12 block mounting threads |
Common to all listed parts
| Delete Model Code | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Main port style | Sideport - staggered |
| Brake Release Port Dimension | n/a |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
