Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Motor type | Mounting flange type | Shaft type |
|---|---|---|---|---|---|

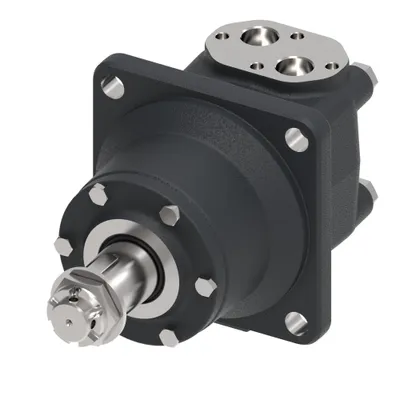

| 11116529 | 500 | 523.6 [31.95] | Wheel | 4 Bolt - Wheel | TAPERED |
| 11116528 | 400 | 410.9 [25.07] | Wheel | 4 Bolt - Wheel | TAPERED |
| 11116527 | 315 | 326.3 [19.91] | Wheel | 4 Bolt - Wheel | TAPERED |
| 11116526 | 160 | 161.1 [9.83] | Wheel | 4 Bolt - Wheel | TAPERED |
| 11114878 | 250 | 251.8 [15.37] | Standard | 4 Bolt - Square | Straight |
| 11113934 | 315 | 326.3 [19.91] | Standard | 4 Bolt - Square | Straight |

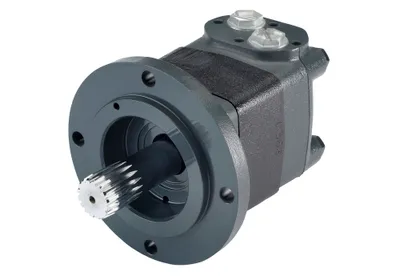

| 11113902 | 315 | 326.3 [19.91] | Short | 4 Bolt - Short | None |
| 11113710 | 500 | 523.6 [31.95] | Standard | 4 Bolt - C | Straight |

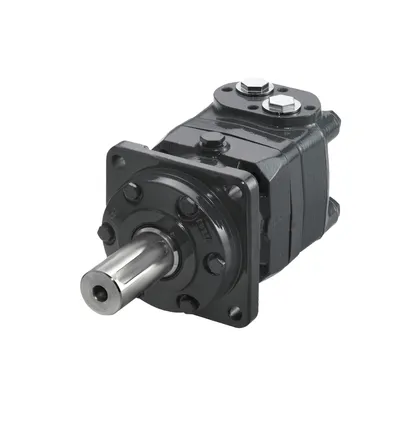

| 11113708 | 315 | 326.3 [19.91] | Standard | 4 Bolt - C | Straight |
| 11113707 | 250 | 251.8 [15.36] | Standard | 4 Bolt - C | Straight |
| 11113706 | 200 | 201.4 [12.29] | Standard | 4 Bolt - C | Straight |
| 11113705 | 160 | 161.1 [9.83] | Standard | 4 Bolt - C | Straight |
| 11111075 | 250 | 251.8 [15.37] | Standard | 4 Bolt - Square | Straight |
Common to all listed parts
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor function | Standard |
| Main port style | Sideport - staggered |
| Brake Release Port Dimension | n/a |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
| Orbital gearwheel set | Standard |
