Danfoss 11191766

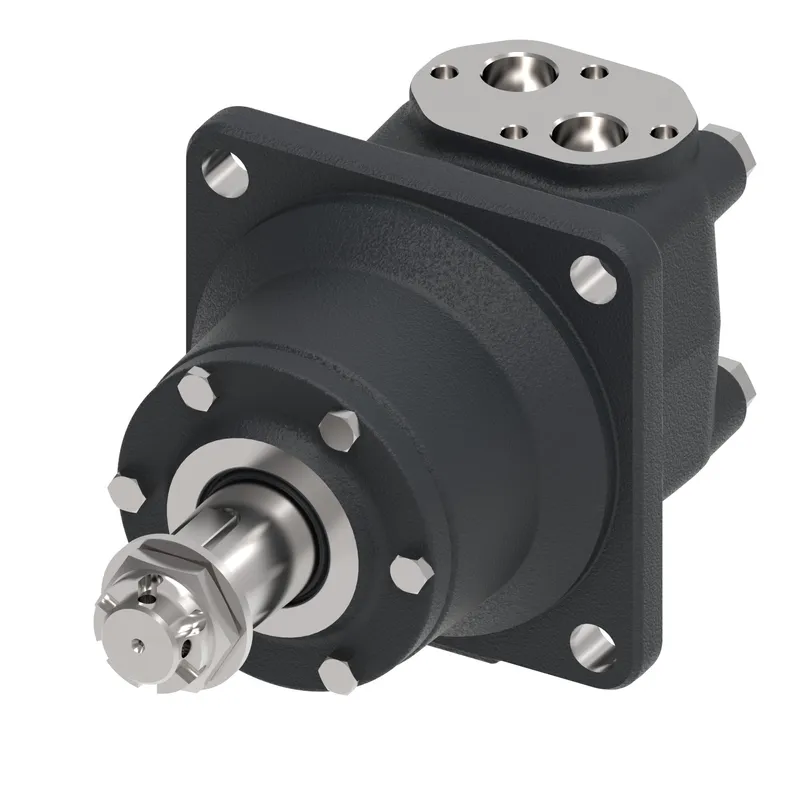

OMTW 400 HD HYDRAULIC MOTOR

MPN
11191766
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11191766?

Danfoss OMTW 400 HD HYDRAULIC MOTOR, manufacturer part number 11191766. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeOMT-0400-B-EB-W48-AD-1D-D21-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor SeriesOMT Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor size400
Geometric displacement [cm3/r [in3/r]]410.9 [25.07]
Motor typeWheel
Motor functionHeavy-Duty version, Reinforced parts
Mounting flange type4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]160.0 x 7.0, 200.0, 18.0 [6.30 x 0.32, 7.87, 0.71] Rear: 172.0 x 3.5, 200.0, 18.0 [6.77 x 0.14, 7.87, 0.71]
Shaft typeSplined
Shaft dimensionDia. 1 1/2 inch, 17T, M12 x 1.75-6H thread in shaft end
Shaft Keyn/a
Main port thread typeBSP
Main port styleSideport - staggered
Main port dimensionG 3/4, 4 x M10 block mounting threads
Drain Port DimensionG 1/4
Brake Release Port Dimensionn/a
PaintedNo
Paint informationn/a
Special features hardwareStandard
Special Features AssemblyStandard
Dust sealStandard
Shaft SealNBR - Standard
Seal Kit151B0161
Front bearing typeTapered roller bearing
Rear bearing typeTapered roller bearing
Orbital gearwheel setStandard
Check valve functionNo
Hydraulic valve functionNone
SensorNone
PackagingSingle pack
Name TagDanfoss name tag
Design code2
Delete Model CodeYes
Proposition 65Cancer and Reproductive Harm
