Danfoss orbital motor quick selector Parts

Danfoss

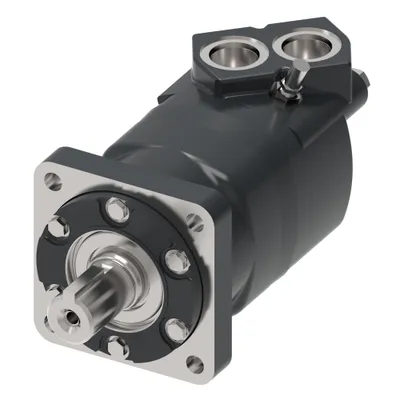

112-1253-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB01AA0200000AB00000000F, M06120AB01AA0200000AB00000000F

Danfoss

112-1247-006

MOTOR-ORBITAL,6000 SERIES 735 [45], M06450AH12AC0300000000000AA00F

Danfoss

112-1246-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB03AA06000000006000000F, M06239AB03AA06000000006000000F

Danfoss

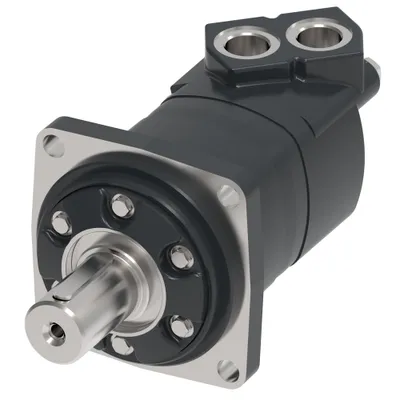

112-1231-006

MOTOR-ORBITAL,6000 SERIES 805 [49], M06490AH12AA02000000000000000F

Danfoss

112-1226-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB01AA02000030000000000F

Danfoss

112-1220-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AH12AC0300000000000AA00F

Danfoss

112-1219-006

MOTOR-ORBITAL,6000 SERIES 805 [49], M06490AH12AC0300000000000AA00F

Danfoss

112-1218-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AH12AC0300000000000AA00F

Danfoss

112-1217-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AH12AC0300000000000AA00F

Danfoss

112-1216-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AH12AC0300000000000AA00F

Danfoss

112-1215-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AH12AC0300000000000AA00F

Danfoss

112-1214-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB04AC0300001000000AA00F

Danfoss

112-1213-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AB02AC0300001000000AA00F

Danfoss

112-1210-006

MOTOR-ORBITAL,6000 SERIES 625 [38], M06381AB01AA0200000AB00000000F, M06381AB01AA0200000AB00000000F

Danfoss

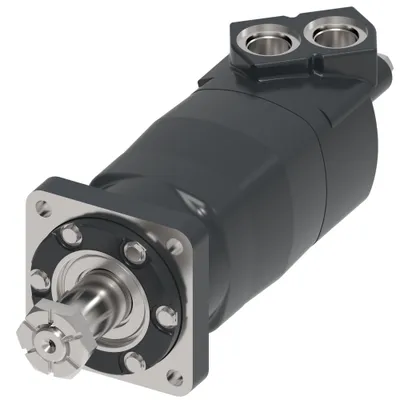

112-1209-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AB11AA02000000000000000F

Danfoss

112-1207-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB06AA0200000000000AA00F

Danfoss

112-1206-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB03AA0200000000000AE00F

Danfoss

112-1202-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB02AA0200000000000AA00F, M06300AB02AA0200000000000AA00F

Danfoss

112-1193-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB02AC0300001000000AA00F

Danfoss

112-1187-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB03AA0200000AB00000000F, M06120AB03AA0200000AB00000000F

Danfoss

112-1186-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB03AA06000000000000000F

Danfoss

112-1182-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AE02AA0600000000000AD00F

Danfoss

112-1178-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB01AA0200000000000AA00F, M06190AB01AA0200000000000AA00F

Danfoss

112-1166-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB02AA0600000000000AD00F

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Drain Port Dimension
112-1253-006	M06120AB01AA0200000AB00000000F	195	195.8 [11.95]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1247-006	M06450AH12AC0300000000000AA00F	735	737.4 [45.00]	Rectangular key, 14 x 9 x 70 mm	G 1/4
112-1246-006	M06239AB03AA06000000006000000F	390	391.7 [23.90]	n/a	9/16 - 18 UNF-2B SAE O-Ring port
112-1231-006	M06490AH12AA02000000000000000F	805	803.4 [49.03]	Rectangular key, 14 x 9 x 70 mm	7/16 - 20 UNF-2B SAE O-Ring port
112-1226-006	M06300AB01AA02000030000000000F	490	491.4 [29.99]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1220-006	M06600AH12AC0300000000000AA00F	985	982.7 [59.97]	Rectangular key, 14 x 9 x 70 mm	G 1/4
112-1219-006	M06490AH12AC0300000000000AA00F	805	803.4 [49.03]	Rectangular key, 14 x 9 x 70 mm	G 1/4
112-1218-006	M06239AH12AC0300000000000AA00F	390	391.7 [23.90]	Rectangular key, 14 x 9 x 70 mm	G 1/4
112-1217-006	M06190AH12AC0300000000000AA00F	310	312.0 [19.04]	Rectangular key, 14 x 9 x 70 mm	G 1/4
112-1216-006	M06381AH12AC0300000000000AA00F	625	624.2 [38.09]	Rectangular key, 14 x 9 x 70 mm	G 1/4
112-1215-006	M06300AH12AC0300000000000AA00F	490	491.4 [29.99]	Rectangular key, 14 x 9 x 70 mm	G 1/4
112-1214-006	M06600AB04AC0300001000000AA00F	985	982.7 [59.97]	Rectangular key, 12 x 8 x 63 mm	G 1/4
112-1213-006	M06381AB02AC0300001000000AA00F	625	624.2 [38.09]	Square key, 7/16 x 1 1/4 inch	G 1/4
112-1210-006	M06381AB01AA0200000AB00000000F	625	624.2 [38.09]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1209-006	M06381AB11AA02000000000000000F	625	624.2 [38.09]	n/a	7/16 - 20 UNF-2B SAE O-Ring port
112-1207-006	M06300AB06AA0200000000000AA00F	490	491.4 [29.99]	n/a	7/16 - 20 UNF-2B SAE O-Ring port
112-1206-006	M06300AB03AA0200000000000AE00F	490	491.4 [29.99]	n/a	7/16 - 20 UNF-2B SAE O-Ring port
112-1202-006	M06300AB02AA0200000000000AA00F	490	491.4 [29.99]	Square key, 7/16 x 1 1/4 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1193-006	M06300AB02AC0300001000000AA00F	490	491.4 [29.99]	Square key, 7/16 x 1 1/4 inch	G 1/4
112-1187-006	M06120AB03AA0200000AB00000000F	195	195.8 [11.95]	n/a	7/16 - 20 UNF-2B SAE O-Ring port
112-1186-006	M06239AB03AA06000000000000000F	390	391.7 [23.90]	n/a	9/16 - 18 UNF-2B SAE O-Ring port
112-1182-006	M06120AE02AA0600000000000AD00F	195	195.8 [11.95]	Square key, 7/16 x 1 1/4 inch	9/16 - 18 UNF-2B SAE O-Ring port
112-1178-006	M06190AB01AA0200000000000AA00F	310	312.0 [19.04]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1166-006	M06150AB02AA0600000000000AD00F	245	246.5 [15.04]	Square key, 7/16 x 1 1/4 inch	9/16 - 18 UNF-2B SAE O-Ring port

Common to all listed parts

Motor Series	6000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
