Danfoss orbital motor quick selector Parts

Danfoss

11200817

OMVW 315 T HYDRAULIC MOTOR

Danfoss

112-1617-006

6K MOTOR/LOCTITE, M06300AH03AB02000000008000000F

Danfoss

112-1615-006

6K MOTOR/SPEED SENSOR, M06150AB03AA0200000AB00000000F, M06150AB03AA0200000AB00000000F

Danfoss

112-1607-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB03AA0200000AF00000000F, M06120AB03AA0200000AF00000000F

Danfoss

112-1582-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB01AA17B0000AB0500AA00F, M06150AB01AA17B0000AB0500AA00F

Danfoss

112-1580-006

MOTOR-ORBITAL,6000 SERIES 195 [12]

Danfoss

112-1575-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AH12AA0200000AD0000AA00F

Danfoss

112-1574-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AN20AH03000000000000000F

Danfoss

112-1564-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AH12AA0200000AD00000000F

Danfoss

112-1540-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB02AA0200000000000AA00F

Danfoss

112-1525-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB02AB0200000000000AA00F

Danfoss

112-1523-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB01AA0200000AF0000AA00F, M06300AB01AA0200000AF0000AA00F

Danfoss

112-1487-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AD03AA0600007000000AP00F

Danfoss

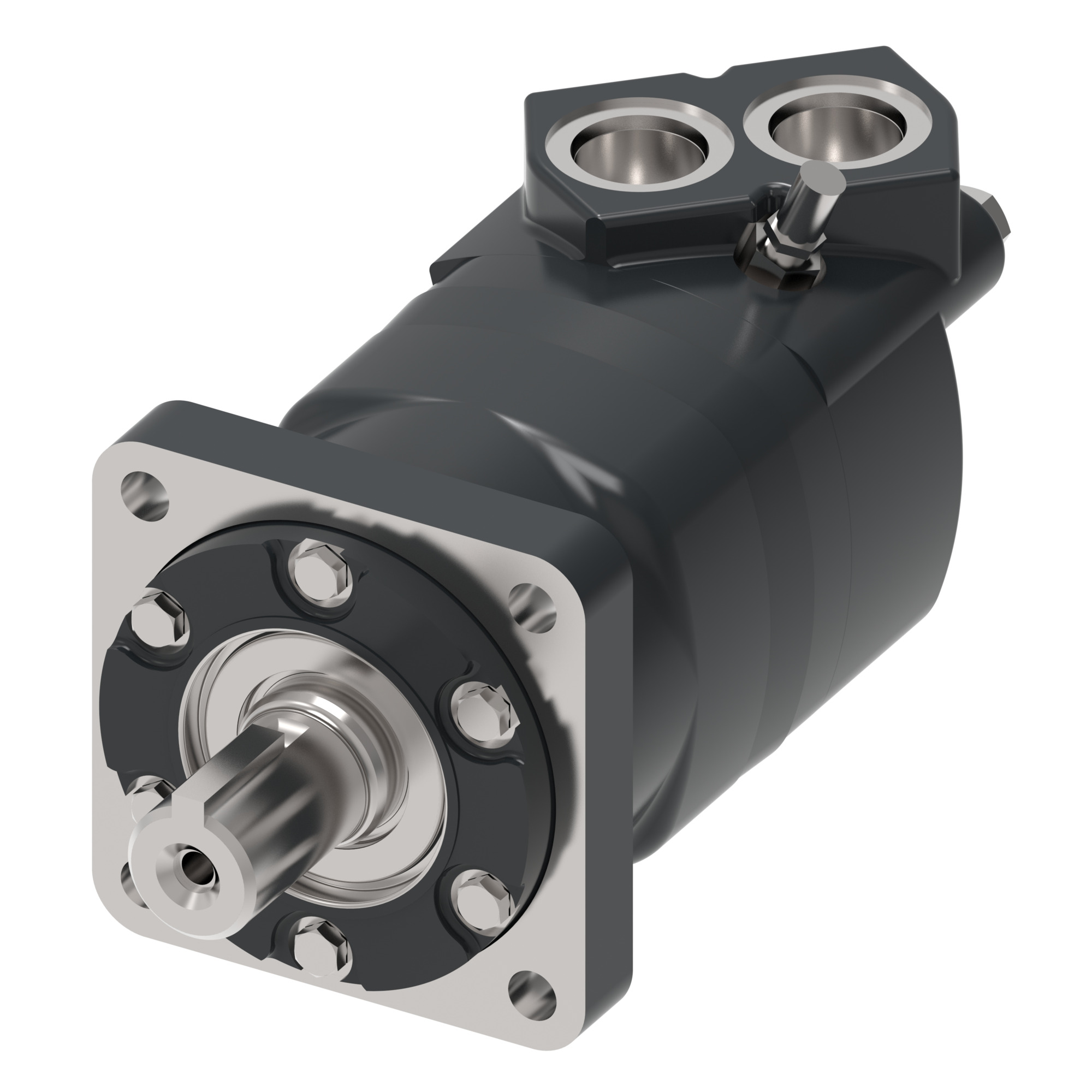

112-1463-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB03AA0200003AB00000000F, M06600AB03AA0200003AB00000000F

Danfoss

112-1428-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AH12AC0300000000000AA00F

Danfoss

112-1382-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AN20AH0300000000000AA00F

Danfoss

112-1375-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AH12AC0300004001800AH00F

Danfoss

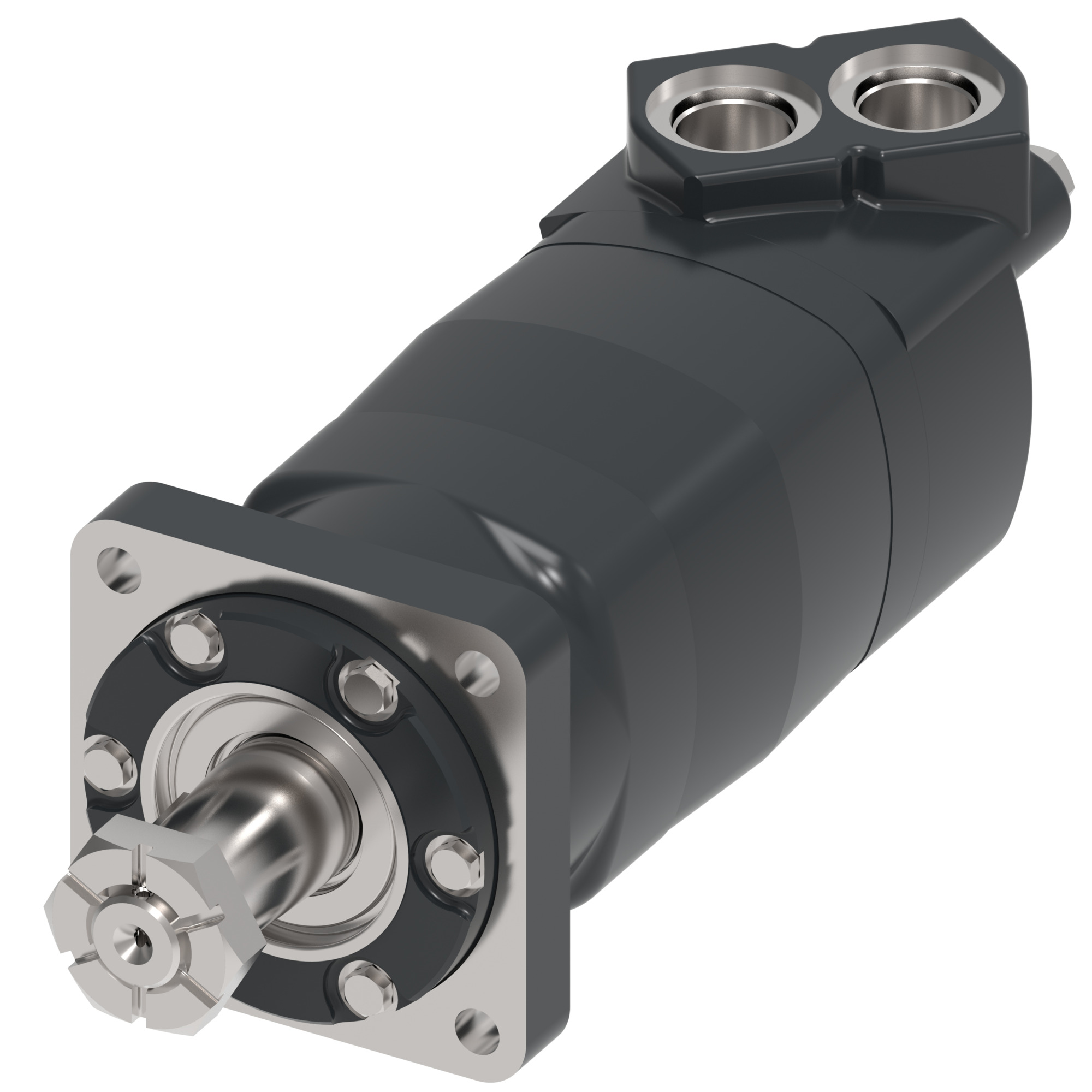

112-1373-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB03AA0200000000000AH00F, M06150AB03AA0200000000000AH00F

Danfoss

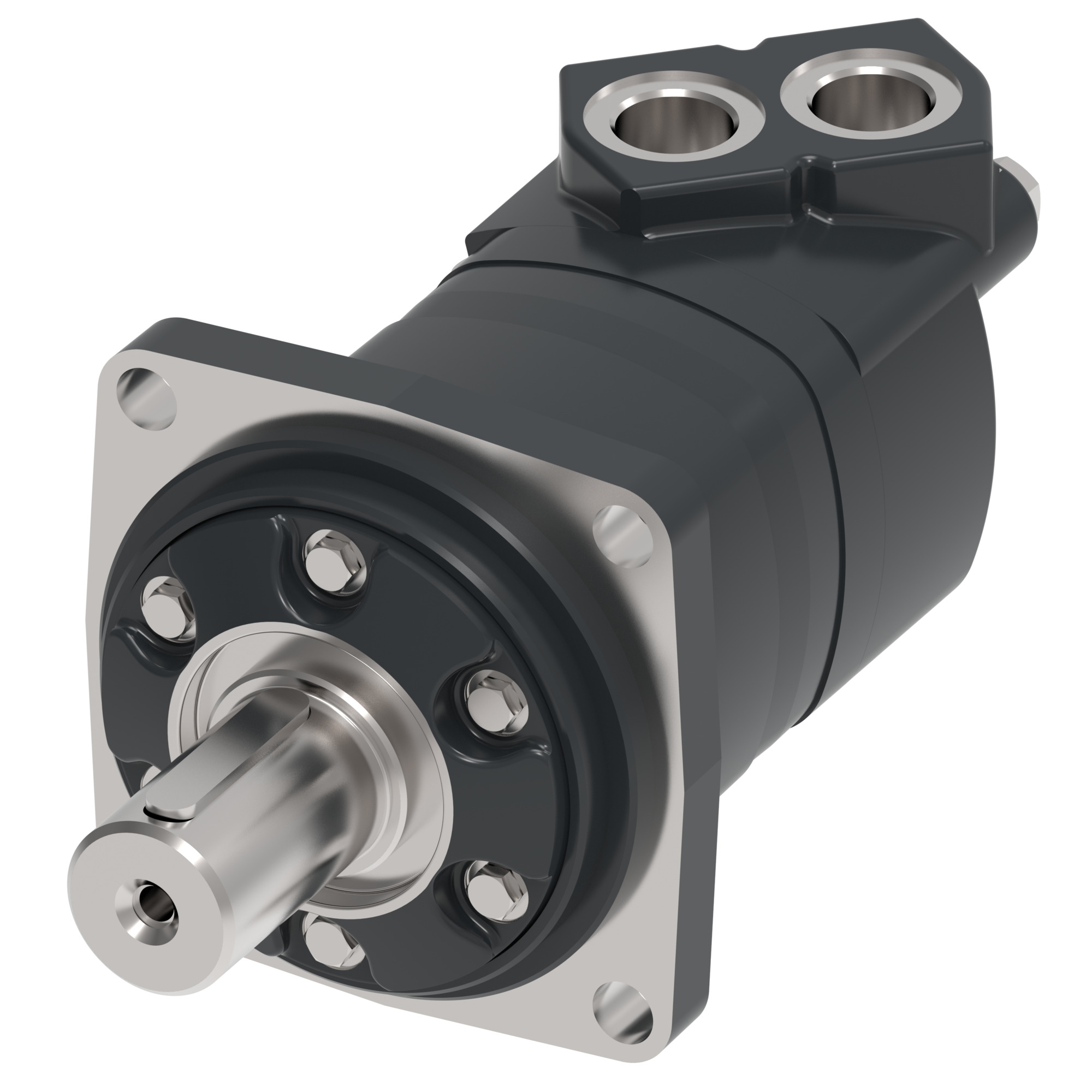

112-1361-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AH12AC0300004001800AA00F

Danfoss

112-1360-006

MOTOR-ORBITAL,6000 SERIES 805 [49], M06490AH12AC0300004001800AA00F

Danfoss

112-1359-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AH12AC0300004001800AA00F

Danfoss

112-1350-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB03AA02000030000000000F

Danfoss

112-1345-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB01AA0200000AF00000000F

Danfoss

112-1344-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB03AA0200000000000AA00F

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension	Drain Port Dimension
11200817	315	314.5 [19.19]	BSP	G 1, 4 x M12 block mounting threads	G 1/4
112-1617-006	490	491.4 [29.99]	Manifold	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
112-1615-006	245	246.5 [15.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1607-006	195	195.8 [11.95]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1582-006	245	246.5 [15.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	9/16 - 18 UNF-2B SAE O-Ring port
112-1575-006	310	312.0 [19.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1574-006	195	195.8 [11.95]	BSP	G 3/4	G 1/4
112-1564-006	310	312.0 [19.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1540-006	985	982.7 [59.97]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1525-006	195	195.8 [11.95]	Manifold	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
112-1523-006	490	491.4 [29.99]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1487-006	310	312.0 [19.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	9/16 - 18 UNF-2B SAE O-Ring port
112-1463-006	985	982.7 [59.97]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1428-006	195	195.8 [11.95]	BSP	G 1	G 1/4
112-1382-006	390	391.7 [23.90]	BSP	G 3/4	G 1/4
112-1375-006	625	624.2 [38.09]	BSP	G 1	G 1/4
112-1373-006	245	246.5 [15.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1361-006	490	491.4 [29.99]	BSP	G 1	G 1/4
112-1360-006	805	803.4 [49.03]	BSP	G 1	G 1/4
112-1359-006	625	624.2 [38.09]	BSP	G 1	G 1/4
112-1350-006	985	982.7 [59.97]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1345-006	310	312.0 [19.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1344-006	310	312.0 [19.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port

Common to all listed parts

Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
