Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Mounting flange type | Main port dimension | Seal Kit |
|---|---|---|---|---|---|
| 11223925 | 400 | 410.9 [25.07] | 4 Bolt - C | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |

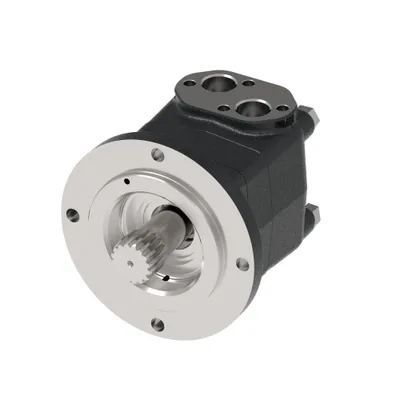

| 11222806 | 630 | 629.1 [38.39] | 4 Bolt - Short | G 1, 4 x M12 block mounting threads | 151B0125 |
| 11221810 | 400 | 410.9 [25.07] | 4 Bolt - Wheel | G 3/4, 4 x M10 block mounting threads | 151B0161 |
| 11221809 | 250 | 251.8 [15.36] | 4 Bolt - Wheel | G 3/4, 4 x M10 block mounting threads | 151B0161 |
| 11216729 | 630 | 629.1 [38.39] | 6 Bolt - Short | G 3/4, 5 x M10 block mounting threads | 151B0176 |
| 11216726 | 500 | 494.8 [30.19] | 6 Bolt - Short | G 3/4, 5 x M10 block mounting threads | 151B0176 |
| 11216153 | 630 | 629.1 [38.39] | 4 Bolt - C | 1 5/16 - 12 UN-2B SAE O-Ring port, | 151B0129 |
| 11213609 | 130 | 140.1 [8.54] | 4 Bolt - C | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |
| 11202188 | 470 | 477.3 [29.13] | 4 Bolt - Square | G 3/4 | 151B0176 |
| 11202187 | 400 | 410.9 [25.07] | 4 Bolt - Square | G 3/4 | 151B0176 |
| 11201812 | 130 | 140.1 [8.54] | 4 Bolt - C | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |
| 11201121 | 200 | 201.4 [12.29] | 4 Bolt - Short | G 3/4, 4 x M10 block mounting threads | 151B0114 |
| 11201120 | 250 | 251.8 [15.36] | 4 Bolt - Square | G 3/4, 4 x M10 block mounting threads | 151B0113 |
| 11200853 | 500 | 494.8 [30.19] | 4 Bolt - Square | G 3/4 | 151Z2059 |
Common to all listed parts
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Main port style | Sideport - staggered |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
| Orbital gearwheel set | Standard |
| Hydraulic valve function | None |
| Packaging | Single pack |
