Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Shaft type | Main port dimension | Seal Kit |
|---|---|---|---|---|---|

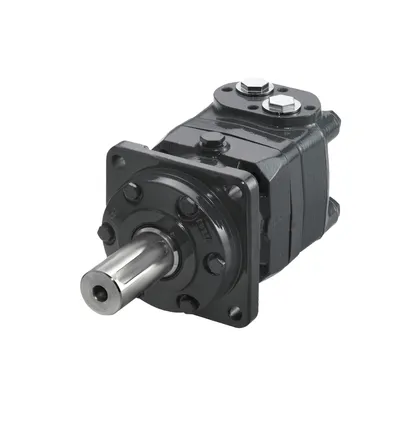

| 11232966 | 200 | 201.4 [12.29] | Splined | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |

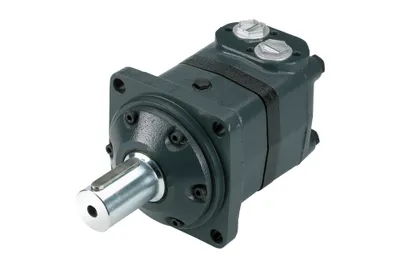

| 11232727 | 500 | 499.6 [30.49] | Straight | G 1, 4 x M12 block mounting threads | 151B0129 |
| 11232578 | 160 | 161.1 [9.83] | PTO | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |
| 11232394 | 315 | 314.5 [19.19] | Straight | G 1, 4 x M12 block mounting threads | 151B0129 |
| 11229973 | 250 | 251.8 [15.36] | PTO | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |
| 11229363 | 400 | 400.9 [24.46] | None | G 1, 4 x M12 block mounting threads | 151B0125 |

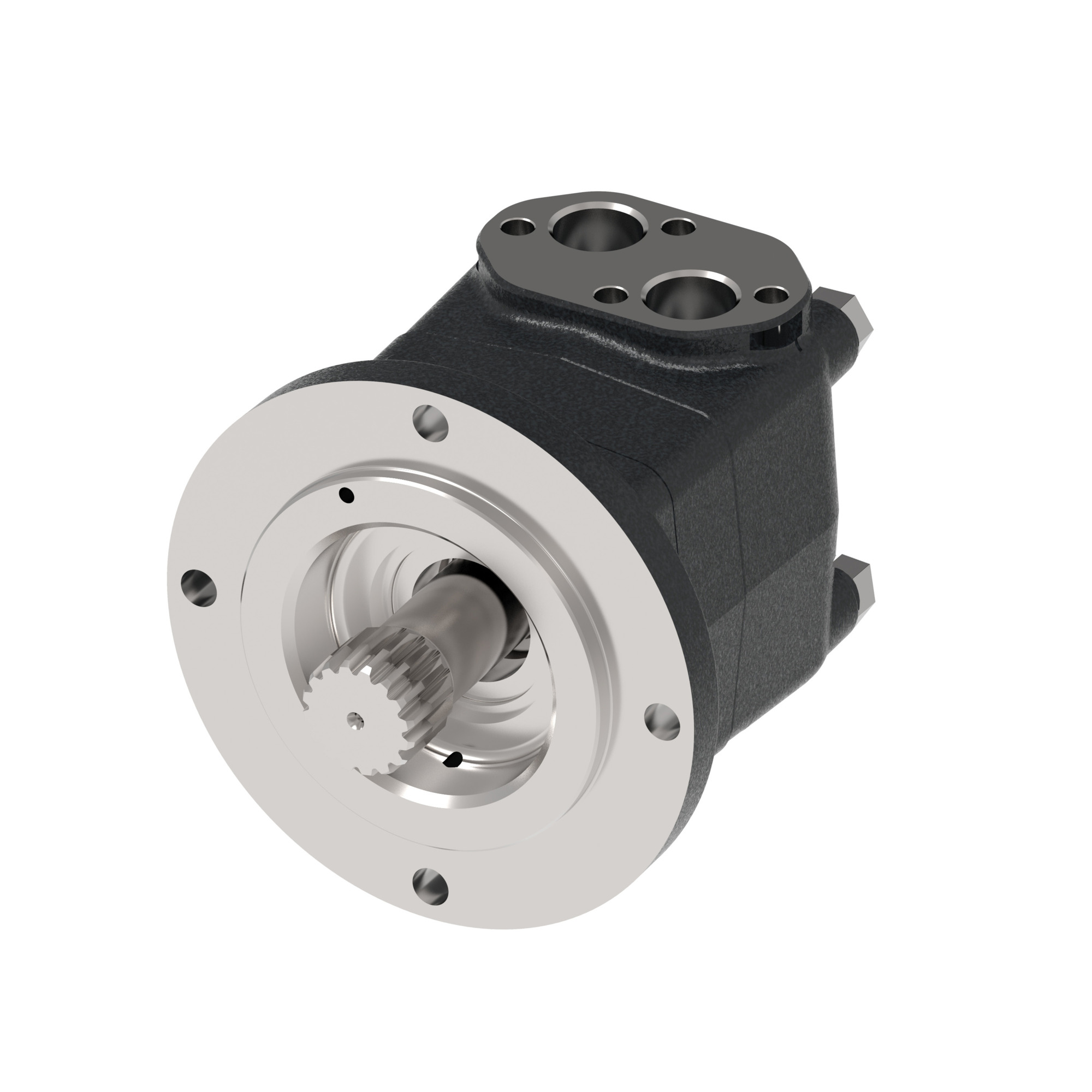

| 11229362 | 315 | 314.5 [19.19] | None | G 1, 4 x M12 block mounting threads | 151B0125 |
| 11227618 | 315 | 315.3 [19.23] | TAPERED | 7/8 - 14 UNF-2B SAE O-Ring port, | 151F0141 |
| 11225993 | 800 | 801.8 [48.93] | Straight | G 1, 4 x M12 block mounting threads | 151B0162 |
| 11225099 | 500 | 494.8 [30.19] | Straight | G 3/4 | 151B0176 |
| 11224912 | 400 | 410.9 [25.07] | Splined | G 3/4, 4 x M10 block mounting threads | 151B0113 |
| 11224739 | 500 | 523.6 [31.95] | Straight | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |
Common to all listed parts
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Brake Release Port Dimension | n/a |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
| Orbital gearwheel set | Standard |
| Hydraulic valve function | None |
| Packaging | Single pack |
