Danfoss (Drives)

Danfoss 112-1582-006

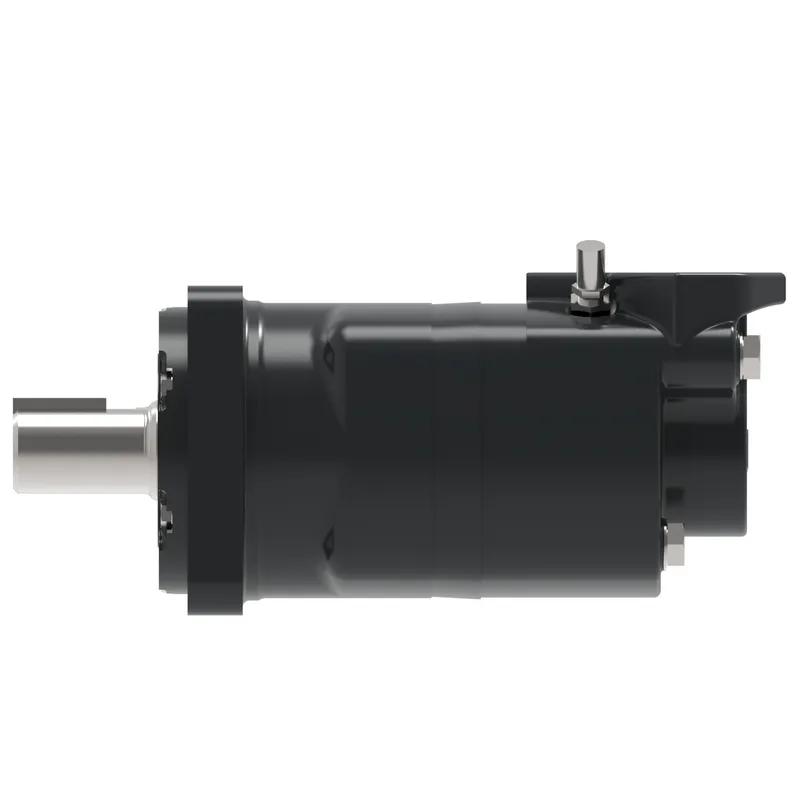

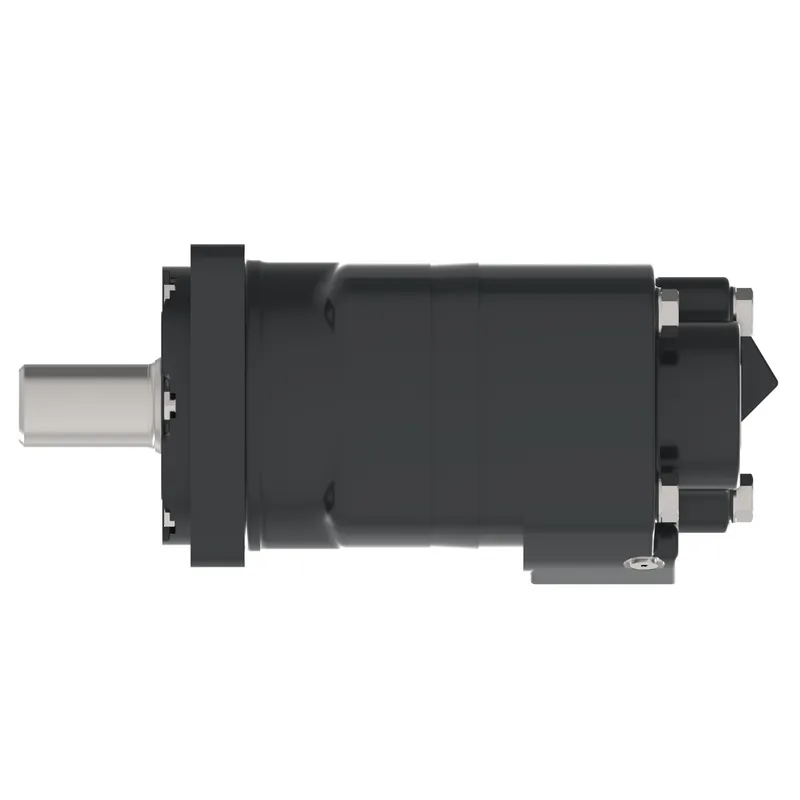

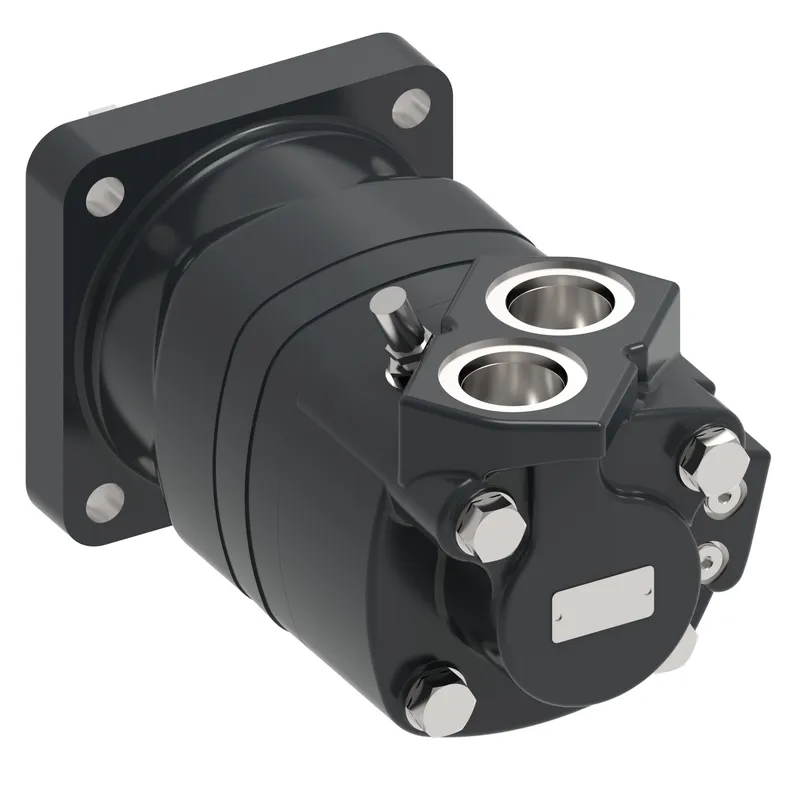

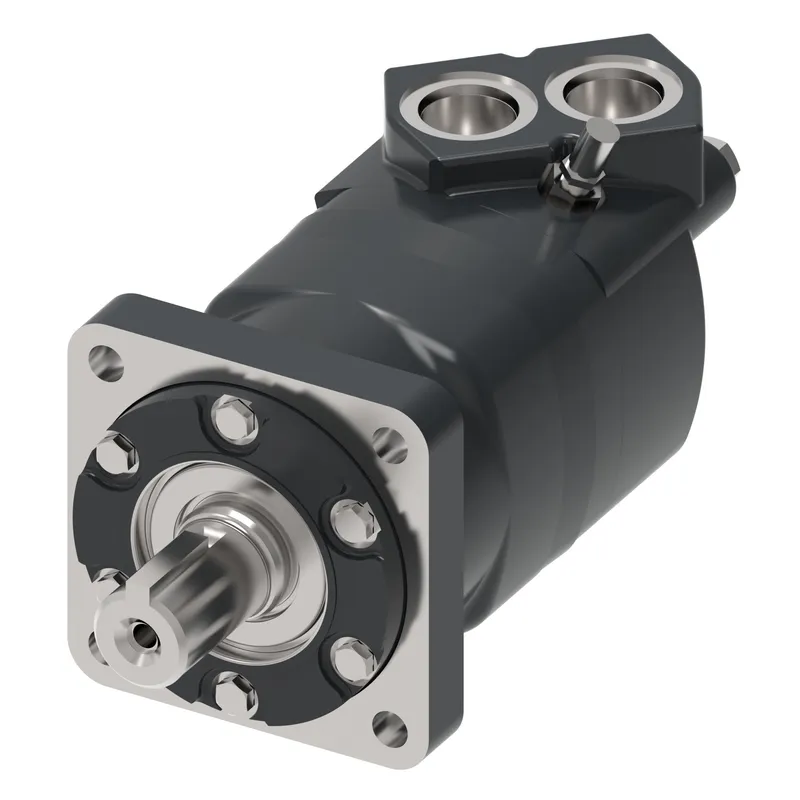

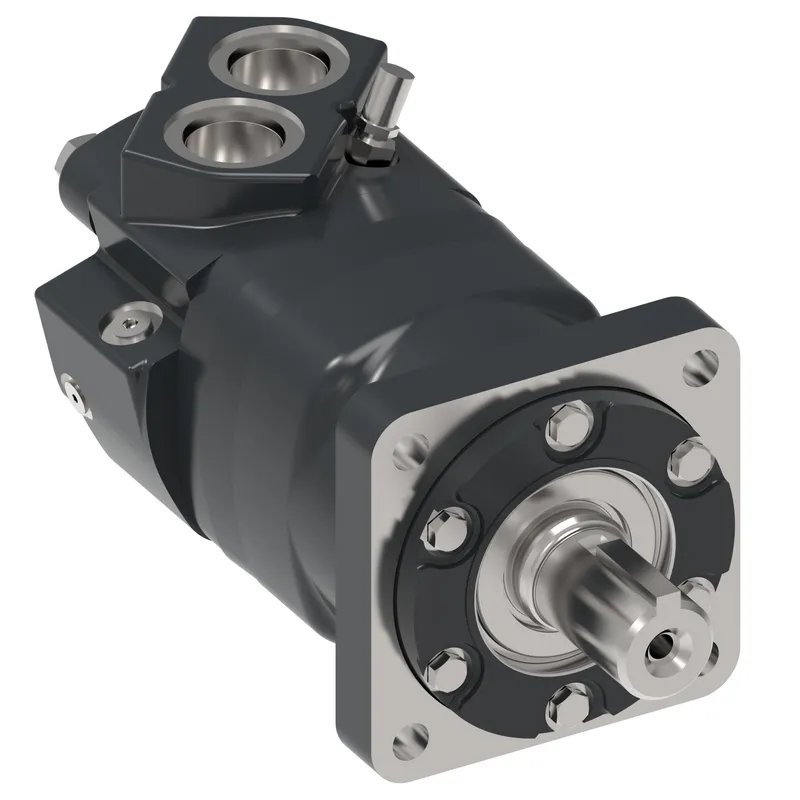

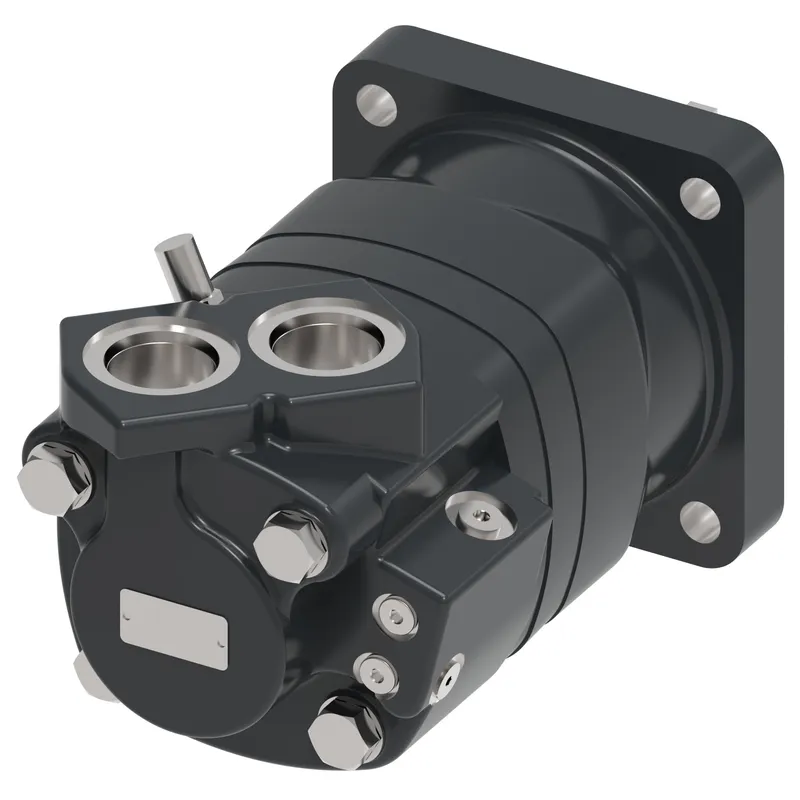

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB01AA17B0000AB0500AA00F, M06150AB01AA17B0000AB0500AA00F

MPN: 112-1582-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 112-1582-006?

Danfoss MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB01AA17B0000AB0500AA00F, M06150AB01AA17B0000AB0500AA00F, manufacturer part number 112-1582-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M06150AB01AA17B0000AB0500AA00F
Motor Series	6000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Mounting type	4 S P127 B162 H14
Motor size	245
Geometric displacement [cm3/r [in3/r]]	246.5 [15.04]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	127.0 x 12.7, 162.0, 14.4 [5.00 x 0.50, 6.38, 0.57] (SAE CC)
Shaft type	Straight
Shaft dimension	Dia. 1 1/2 inch, 3/8 - 16 UNC-2B thread in shaft end
Shaft Key	Square key, 3/8 x 1 5/8 inch
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 5/16 - 12 UN-2B SAE O-Ring port
Drain Port Dimension	9/16 - 18 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	No
Sensor	Speed, Hall effect, 30 pulses, 127 mm [5.0 inch] wire lenght, Packard weather pac shroud connector
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	06
Brand	Danfoss
Seal options	Standard
Series	6000 series
Sub brand	Char-Lynn

112-1582-006: frequently asked questions

When can 112-1582-006 be shipped?

112-1582-006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 112-1582-006 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 112-1582-006 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 112-1582-006, subject to availability and destination.
