Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Mounting flange type | Main port dimension | Seal Kit |
|---|---|---|---|---|---|
| 11274283 | 800 | 801.8 [48.93] | 4 Bolt - Square | 1 5/16 - 12 UN-2B SAE O-Ring port, | 151B0129 |
| 11273667 | 470 | 477.3 [29.13] | 4 Bolt - C | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0176 |
| 11272326 | 500 | 523.6 [31.95] | 4 Bolt - Square | G 3/4, 4 x M10 block mounting threads | 151B0113 |
| 11270250 | 160 | 158.0 [9.64] | 6 Bolt - Magneto | G 3/4 | 151F0141 |
| 11269776 | 400 | 410.9 [25.07] | 4 Bolt - Square | G 3/4, 4 x M10 block mounting threads | 151B0153 |
| 11267627 | 160 | 161.1 [9.83] | 4 Bolt - Short | G 3/4, 4 x M10 block mounting threads | 151B0114 |
| 11264965 | 400 | 410.9 [25.07] | 4 Bolt - Square | G 3/4, 4 x M10 block mounting threads | 151B0113 |
| 11256453 | 160 | 161.1 [9.83] | 4 Bolt - C | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |
| 11253883 | 470 | 471.1 [28.75] | 4 Bolt - Wheel | 1 1/16 - 12 UN-2B SAE O-Ring port, | 151F0141 |
| 11253639 | 400 | 400.9 [24.46] | 4 Bolt - Wheel | G 1, 4 x M12 block mounting threads | 151B0129 |
| 11253631 | 315 | 326.3 [19.91] | 4 Bolt - Square | G 3/4, 4 x M10 block mounting threads | 151B0113 |
| 11253210 | 500 | 499.6 [30.49] | 4 Bolt - Square | G 1, 4 x M12 block mounting threads | 151B0129 |

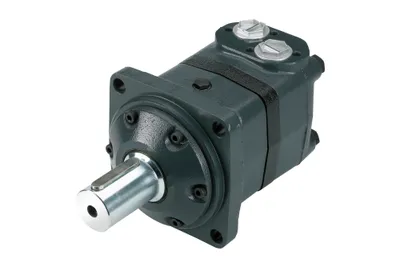

| 11252413 | 500 | 499.6 [30.49] | 4 Bolt - C | 1 5/16 - 12 UN-2B SAE O-Ring port, | 151B0129 |
Common to all listed parts
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Main port style | Sideport - staggered |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
| Orbital gearwheel set | Standard |
| Hydraulic valve function | None |
| Packaging | Single pack |
