Home / Motors / Mobile motors / Low-speed high-torque motors / Orbital motors / Danfoss orbital motor quick selector

Danfoss orbital motor quick selector Parts

Danfoss

113-1078-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AC03AA02000000000000000F, M06190AC03AA02000000000000000F

Danfoss

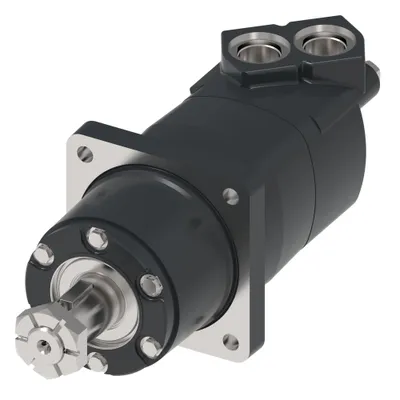

113-1077-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AC03AA02000000000000000F, M06150AC03AA02000000000000000F

Danfoss

113-1076-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AC03AA02000000000000000F, M06120AC03AA02000000000000000F

Danfoss

113-1075-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AC02AA02000000000000000F

Danfoss

113-1074-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AC02AA02000000000000000F

Danfoss

113-1073-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AC02AA02000000000000000F

Danfoss

113-1072-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AC02AA02000000000000000F

Danfoss

113-1071-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AC02AA02000000000000000F

Danfoss

113-1070-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AC02AA02000000000000000F

Danfoss

113-1069-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AC01AA02000000000000000F, M06600AC01AA02000000000000000F

Danfoss

113-1068-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AC01AA02000000000000000F

Danfoss

113-1067-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AC01AA02000000000000000F

Danfoss

113-1066-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AC01AA02000000000000000F

Danfoss

113-1064-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AC01AA02000000000000000F, M06120AC01AA02000000000000000F

Danfoss

113-1058-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AC02AB0200000000000AE00F, M06300AC02AB0200000000000AE00F

Danfoss

113-1057-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AC02AB02000000000000000F

Danfoss

113-1052-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AC01AB02000000000000000F, M06300AC01AB02000000000000000F

Danfoss

113-1024-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AC02AB02000000000000000F

Danfoss

11297680

OMV 800 HYDRAULIC MOTOR

Danfoss

11295743

OMVW500 HD DIA. 50mm CYL. SHAFT

Danfoss

11295656

BLANK FOR GEAR WHEEL

Danfoss

11295654

TMTH BLANK FOR GEAR RIM

Danfoss

11295646

TMTH BLANK FOR GEAR RIM

Danfoss

11295643

TMTH BLANK FOR GEAR RIM

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port thread type
113-1078-006	M06190AC03AA02000000000000000F	310	312.0 [19.04]	n/a	UN / UNF
113-1077-006	M06150AC03AA02000000000000000F	245	246.5 [15.04]	n/a	UN / UNF
113-1076-006	M06120AC03AA02000000000000000F	195	195.8 [11.95]	n/a	UN / UNF
113-1075-006	M06600AC02AA02000000000000000F	985	982.7 [59.97]	Square key, 7/16 x 1 1/4 inch	UN / UNF
113-1074-006	M06300AC02AA02000000000000000F	490	491.4 [29.99]	Square key, 7/16 x 1 1/4 inch	UN / UNF
113-1073-006	M06239AC02AA02000000000000000F	390	391.7 [23.90]	Square key, 7/16 x 1 1/4 inch	UN / UNF
113-1072-006	M06190AC02AA02000000000000000F	310	312.0 [19.04]	Square key, 7/16 x 1 1/4 inch	UN / UNF
113-1071-006	M06150AC02AA02000000000000000F	245	246.5 [15.04]	Square key, 7/16 x 1 1/4 inch	UN / UNF
113-1070-006	M06120AC02AA02000000000000000F	195	195.8 [11.95]	Square key, 7/16 x 1 1/4 inch	UN / UNF
113-1069-006	M06600AC01AA02000000000000000F	985	982.7 [59.97]	Square key, 3/8 x 1 5/8 inch	UN / UNF
113-1068-006	M06300AC01AA02000000000000000F	490	491.4 [29.99]	Square key, 3/8 x 1 5/8 inch	UN / UNF
113-1067-006	M06239AC01AA02000000000000000F	390	391.7 [23.90]	Square key, 3/8 x 1 5/8 inch	UN / UNF
113-1066-006	M06190AC01AA02000000000000000F	310	312.0 [19.04]	Square key, 3/8 x 1 5/8 inch	UN / UNF
113-1064-006	M06120AC01AA02000000000000000F	195	195.8 [11.95]	Square key, 3/8 x 1 5/8 inch	UN / UNF
113-1058-006	M06300AC02AB0200000000000AE00F	490	491.4 [29.99]	Square key, 7/16 x 1 1/4 inch	Manifold
113-1057-006	M06239AC02AB02000000000000000F	390	391.7 [23.90]	Square key, 7/16 x 1 1/4 inch	Manifold
113-1052-006	M06300AC01AB02000000000000000F	490	491.4 [29.99]	Square key, 3/8 x 1 5/8 inch	Manifold
113-1024-006	M06190AC02AB02000000000000000F	310	312.0 [19.04]	Square key, 7/16 x 1 1/4 inch	Manifold

Common to all listed parts

Motor Series	6000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	139.7 x 7.9, 184.2, 14.4 [5.50 x 0.31, 7.25, 0.57]
Main port style	Sideport - staggered
