Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor Series | Motor size | Geometric displacement [cm3/r [in3/r]] | Mounting flange type | Shaft type |
|---|---|---|---|---|---|
| 11291379 | OMT Series | 160 | 161.1 [9.83] | 4 Bolt - Wheel | Straight |

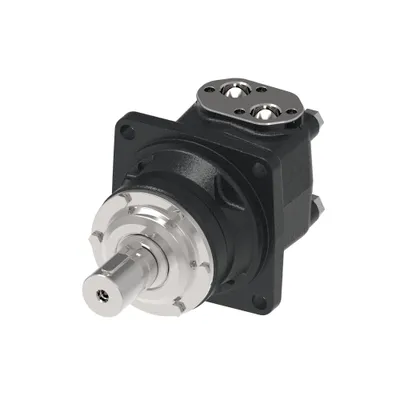

| 11287730 | OMV Series | 800 | 801.8 [48.93] | 4 Bolt - Wheel | TAPERED |
| 11280536 | TMK Series | 400 | 397.2 [24.24] | 6 Bolt - Magneto | Straight |
| 11276968 | OMV Series | 630 | 629.1 [38.39] | 4 Bolt - Wheel | TAPERED |
| 11276313 | OMT Series | 250 | 251.8 [15.36] | 4 Bolt - Square | PTO |
| 11276240 | OMT Series | 315 | 326.3 [19.91] | 4 Bolt - Wheel | Straight |
Common to all listed parts
| Delete Model Code | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor function | Standard |
| Main port style | Sideport - staggered |
| Brake Release Port Dimension | n/a |
| Special features hardware | Standard |
