SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | depth | global warming potential [CO2 eq] / during manufacturing | global warming potential [CO2 eq] / during operation |
|---|---|---|---|---|---|
| 3RT2025-1FB40 | 5.9 W | 583.68 g | 107 mm | 2.65 kg | 219 kg |
| 3RT2025-1DB44-3MA0 | 5.9 W | 0.656 kg | 151 mm | 2.65 kg | 219 kg |
| 3RT2025-1DB40 | 5.9 W | 0.619 kg | 107 mm | 2.65 kg | 219 kg |
| 3RT2025-1CL24-3MA0 | 2 W | 467 g | 141 mm | 1.9 kg | 72.4 kg |

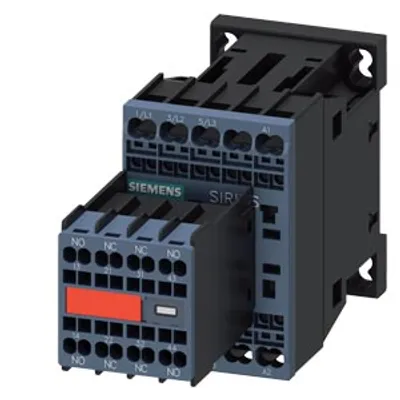

| 3RT2015-2FB44-3MA0 | 4 W | 0.346 kg | 121 mm | 1.42 kg | 152 kg |

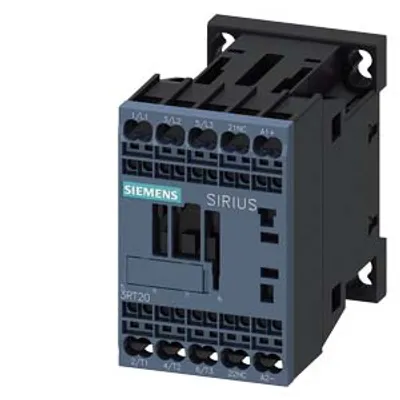

| 3RT2015-2FB42 | 4 W | 291.8 g | 73 mm | 1.42 kg | 152 kg |
| 3RT2015-2FB41 | 4 W | 291.8 g | 73 mm | 1.42 kg | 152 kg |
| 3RT2015-2BB41-Z X95 | 4 W | 293.8 g | 73 mm | 1.42 kg | 152 kg |
| 3RT2015-2BB41-Z W97 | 4 W | 293.8 g | 73 mm | 1.42 kg | 152 kg |
| 3RT2015-2BB41-Z W96 | 4 W | 293.8 g | 73 mm | 1.42 kg | 152 kg |
| 3RT2015-2BB41 | 4 W | 293.8 g | 73 mm | 1.42 kg | 152 kg |
| 3RT2015-2AV02 | 1.1 W | 0.244 kg | 73 mm | 1.18 kg | 38.5 kg |
| 3RT2015-2AV01 | 1.1 W | 241.08 g | 73 mm | 1.18 kg | 38.5 kg |
| 3RT2015-2AP62 | 1.2 W | 0.236 kg | 73 mm | 1.18 kg | 38.5 kg |

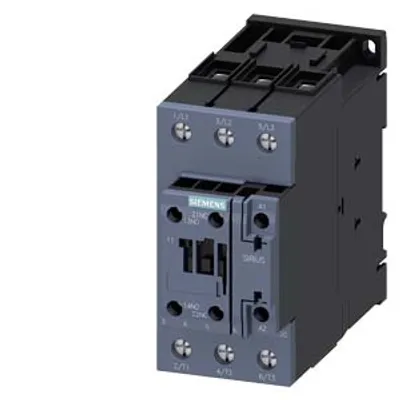

| 3RT2036-1AF00-1AA0 | — | 0.948 kg | 130 mm | — | — |
| 3RT2036-1AF00 | — | 0.958 kg | 130 mm | — | — |
| 3RT2035-3KB40 | 1 W | 1.077 kg | 130 mm | 5.88 kg | 102 kg |

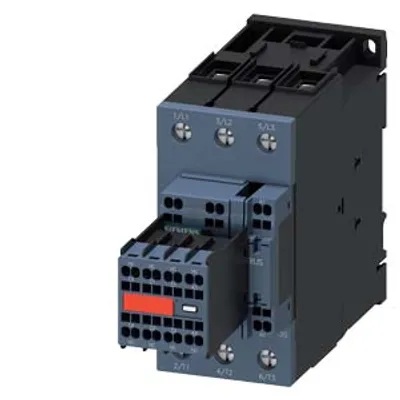

| 3RT2035-3CL24-3MA0 | 6.5 W | 1.052 kg | 178 mm | — | — |
| 3RT2035-3AV00 | 6 W | 0.945 kg | 130 mm | 4.11 kg | 233 kg |
| 3RT2035-3AR60 | 6.5 W | 0.947 kg | 130 mm | — | — |

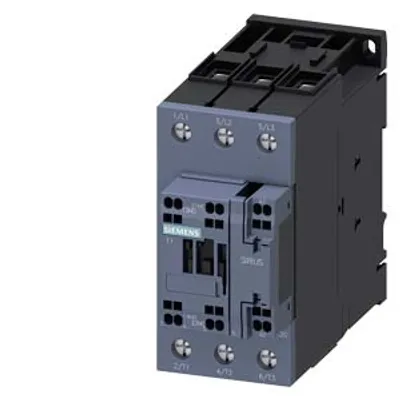

| 3RT2035-3AP60 | 6.5 W | 0.95 kg | 130 mm | 4.11 kg | 233 kg |

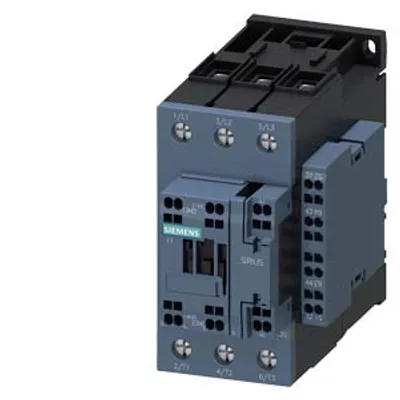

| 3RT2035-3AP06 | 6 W | 0.987 kg | 130 mm | 4.11 kg | 233 kg |
| 3RT2023-2CL24-3MA0 | 2 W | 0.483 kg | 144 mm | 1.9 kg | 72.4 kg |
| 3RT2023-2BM40 | 5.9 W | 0.605 kg | 107 mm | 2.65 kg | 219 kg |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
