Sensor/Actuator cable; M12A plug; angled; 8-pole; Length: 5 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-5312/090-050 be shipped?
756-5312/090-050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5312/090-050 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5312/090-050 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5312/090-050, subject to availability and destination.
<p><b>Short description:</b></p><ul><li>PUR, halogen-free</li><li>Suitable for drag chains</li><li>High resistance to microbes, hydrolysis, oil, chemicals and UV radiation </li><li>High chemical resistance</li><li>Cable used: UL listed</li></ul>
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >108 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 5 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |

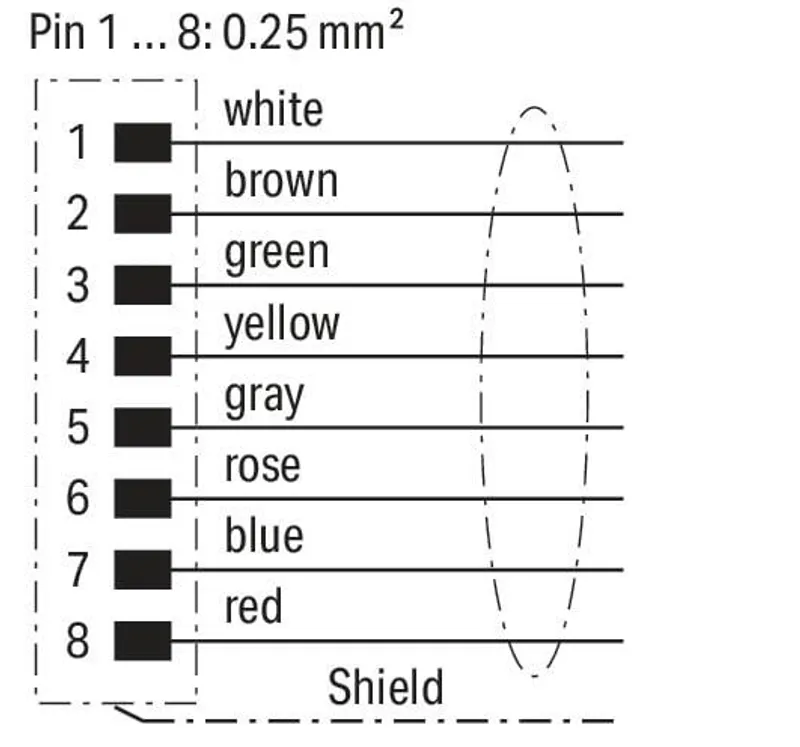

| Conductor configuration | Bare copper wire, fine-stranded (32 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

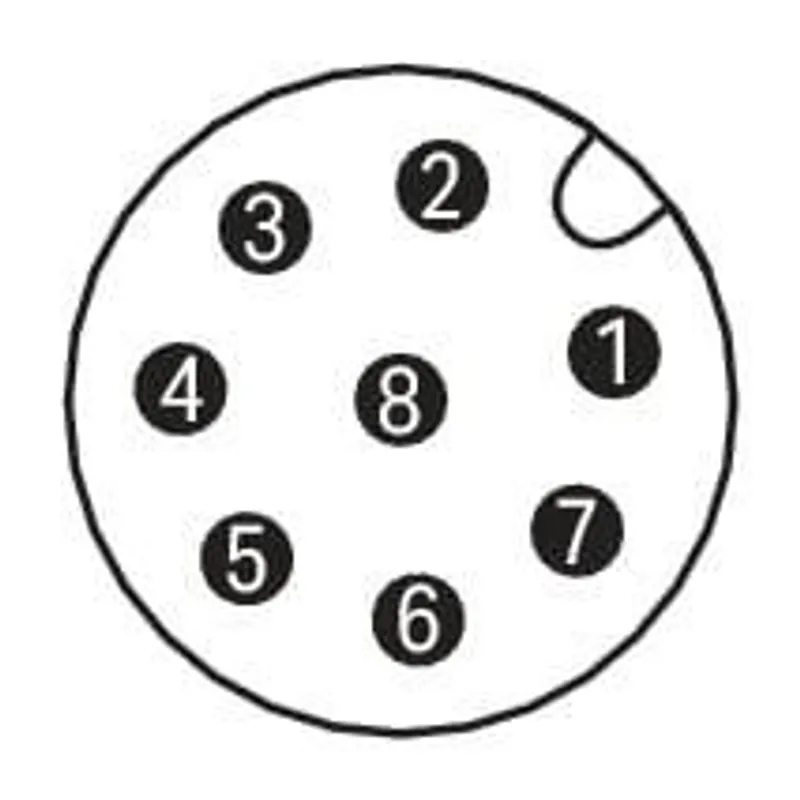

| Connection type | M12 plug - free end |
| Pole number | 8 |
| Cable connection direction to mating direction | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4050821346340 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 53931402-e7c6-4cf6-acef-0f0b357ae25c |
| SCIP notification number (Belgium) | 2187fddc-13ab-4e09-9f79-f2d63701c194 |
| SCIP notification number (Bulgaria) | 7a1a626c-460c-49e7-bdae-9de055335828 |
| SCIP notification number (Czech Republic) | 6e19ac3b-364e-4e67-9a88-12afa3b2bb3a |
| SCIP notification number (Denmark) | 3f830863-034e-42c9-a37c-6c82dfdc8984 |
| SCIP notification number (Finland) | 75e15318-00ab-4ab8-bffc-f1765c5d8546 |
| SCIP notification number (France) | a5d43bd7-aacf-4380-8fa7-50e203bf775c |
| SCIP notification number (Germany) | dcbfdf8c-4447-48c7-8d5e-9eaf6448a022 |
| SCIP notification number (Hungary) | 97135ad8-ee56-4d3c-8794-38d7c4743d22 |
| SCIP notification number (Italy) | 485341d3-0b00-45da-b1a5-13ef733bdbbd |
| SCIP notification number (Netherlands) | 5b8f973e-bc45-4ef6-99bd-9715031d8ba1 |
| SCIP notification number (Poland) | 8ae35f29-4921-43bd-a369-9b402ffabef4 |
| SCIP notification number (Romania) | 6374b4bb-1a3c-41f9-a4e4-fd6e478f0885 |
| SCIP notification number (Sweden) | 1a0028be-1b16-4752-ba9a-71f0972fd416 |
