Wago 756-5312/060-100
Sensor/Actuator cable; M12A plug; angled; 5-pole; Length: 10 m
- MPN
- 756-5312/060-100
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5312/060-100?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 10 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

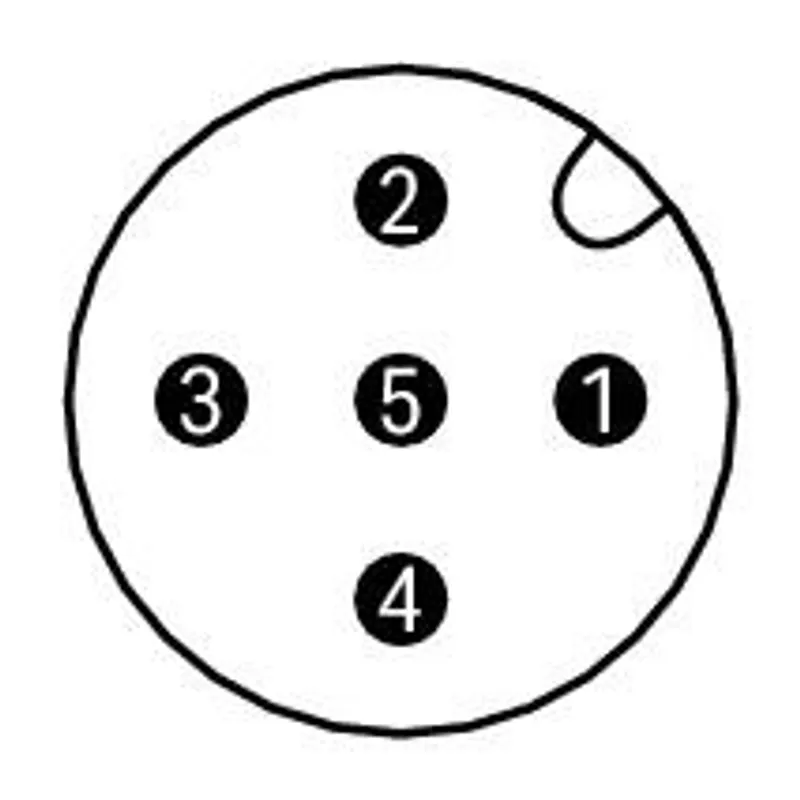

Technical data - Connector
| Connection type | M12 plug - free end |
| Pole number | 5 |
| Cable connection direction to mating direction | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4045454941710 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | c20ddc49-7a05-4483-bc54-416037aa812a |
| SCIP notification number (Belgium) | 667ec1a8-994e-4e82-b192-807499a6424a |
| SCIP notification number (Bulgaria) | 6730868f-390c-436e-9c94-fa17854e06fb |
| SCIP notification number (Czech Republic) | 21b05b96-4d54-462d-8e9c-a7c044afc343 |
| SCIP notification number (Denmark) | b23a7cc4-cfb6-4bd3-9c64-b7810836e874 |
| SCIP notification number (Finland) | 4ca63baf-2343-4d13-8105-01d5c1f62a86 |
| SCIP notification number (France) | 6e591dec-0e22-4f22-95c6-045fff279478 |
| SCIP notification number (Germany) | d635e982-36cd-4b3f-81e8-4a670fe3f616 |
| SCIP notification number (Hungary) | 7ea27e1c-6506-4bf5-944f-e061965d9ec0 |
| SCIP notification number (Italy) | ba8f5570-37d4-46b0-aefc-922fe8a8cca1 |
| SCIP notification number (Netherlands) | 6388b7be-f01f-492e-b6de-b27a262e3a60 |
| SCIP notification number (Poland) | b98c0e59-7feb-4fda-96d8-498dbcd29731 |
| SCIP notification number (Romania) | 5adaba19-38ac-4176-a1e9-e51713f3a2b3 |
| SCIP notification number (Sweden) | 4d947e32-0dfe-48cd-8a4d-053e00b25238 |
No matching specifications
756-5312/060-100: frequently asked questions
When can 756-5312/060-100 be shipped?
756-5312/060-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5312/060-100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5312/060-100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5312/060-100, subject to availability and destination.
