Wago 756-5312/090-100
Sensor/Actuator cable; M12A plug; angled; 8-pole; Length: 10 m
- MPN
- 756-5312/090-100
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5312/090-100?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >108 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 10 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |

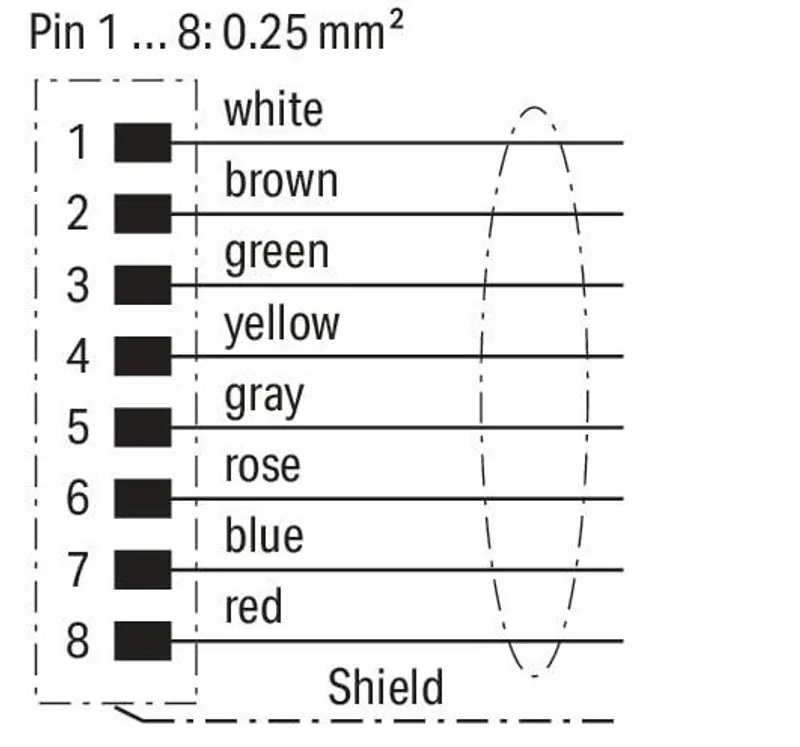

| Conductor configuration | Bare copper wire, fine-stranded (32 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M12 plug - free end |

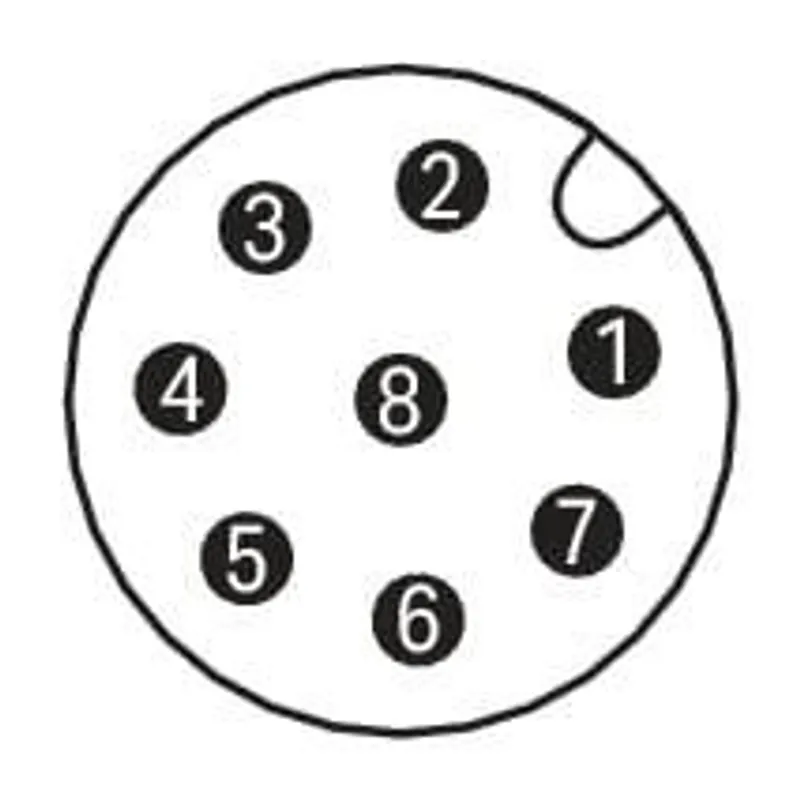

| Pole number | 8 |
| Cable connection direction to mating direction | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4050821346333 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | e8aa2dc7-3330-4dff-b388-f0b8dc473e22 |
| SCIP notification number (Belgium) | c1542578-57f4-4481-bce0-d72114781ec6 |
| SCIP notification number (Bulgaria) | 919b89af-6844-4e6b-a714-c6bba341138f |
| SCIP notification number (Czech Republic) | 7fa6e2b9-2235-4ac3-bb5a-e0504bdc9836 |
| SCIP notification number (Denmark) | 5d83dcf2-47bf-4306-8875-3f97686ea53d |
| SCIP notification number (Finland) | ddcaf62e-6dab-4a0e-8f20-c9215ce8a927 |
| SCIP notification number (France) | 06ffc631-11ed-4640-bda2-2205e0dcf4e5 |
| SCIP notification number (Germany) | 0537e79d-b2b1-4552-80f7-3a445687712f |
| SCIP notification number (Hungary) | a11a6101-7da9-419b-8de3-d863b805e840 |
| SCIP notification number (Italy) | ce84c7fd-e6c6-4b15-aa2d-0cded64a175b |
| SCIP notification number (Netherlands) | 6926c2bc-70dd-401c-af3c-e901f2e52240 |
| SCIP notification number (Poland) | f16caabc-7135-4448-b8bc-6d7468b7acca |
| SCIP notification number (Romania) | 9749e84e-6433-46fe-8ad4-9a0c124d8edf |
| SCIP notification number (Sweden) | 32a5fc5a-924f-41ce-b490-9f6b5390ede3 |
No matching specifications
756-5312/090-100: frequently asked questions
When can 756-5312/090-100 be shipped?
756-5312/090-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5312/090-100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5312/090-100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5312/090-100, subject to availability and destination.
